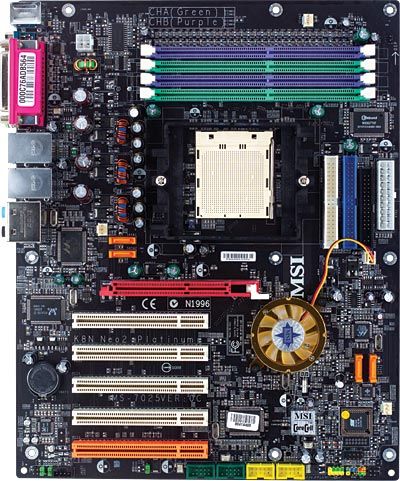

MSI K8N NEO2 PLATINUM Retail Socket 939 ATX
Brand: MSI · SKU: K8N NEO2 PLATINUM · MPN: K8N NEO2 PLATINUM · Category: Components
MSI K8N NEO2 PLATINUM Retail, AMD, Socket 939, 1000 MHz, 4 GB, 0+1, JBOD, 10/100/1000 Fast Ethernet
Specifications
| RAID levels | 0+1, JBOD |
|---|---|
| Audio output | 7.1 RealTek ALC850 |
| Expansion slots | 1x 8xAGP 5x PCI |
| Processor socket | Socket 939 |
| Power source type | ATX |
| Networking features | 10/100/1000 Fast Ethernet |
| Processor manufacturer | AMD |
| Maximum internal memory | 4 GB |
| Motherboard form factor | ATX |
| Processor system buses supported | 1000 MHz |
| Warranty | 3-Year Warranty |
Product Description
Supports Socket 939 for AMD® Athlon™ 64 FX / Athlon™ 64 processor Supports up to 3500+, 3800+ Athlon 64 FX 53, or higher CPU nVIDIA® nForce3 Ultra Chipset - HyperTransport link to the AMD Athlon 64/Athlon 64 FX CPU - HyperTransport supporting speed up to 1GHz (2000MT/s) - AGP3.0 8X interface at 533 MT/s (million transfers per second) - Two independent SATA controllers, for four drives - IEEE 802.3 NVIDIA MAC for 1000BASE-T - Dual Fast ATA-133 IDE controllers Supports dual channel DDR 266/333/400, using four 184-pin DDR DIMMs . Supports a maximum memory size up to 4GB without ECC. Supports 2.5v DDR SDRAM DIMM. One AGP (Accelerated Graphics Port) 1.5V 4X/8X slot Five 32-bit v2.3 Master PCI bus slots (support 3.3v/5v PCI bus interface). On-Board IDE/SATA An IDE controller on the nVIDIA nForce3 Ultra chipset provides IDE HDD/CD-ROM with PIO, Bus Master and Ultra DMA133/100/66 operation modes. - Can connect up to 4 IDE devices Supports 4 SATA ports. Transfer rate is up to 150MB/s. NV RAID (Software) Supports up to 4 SATA & 2 ATA133 Hard drives - RAID O or 1, 0+1, JBOD is supported - RAID function work w/ATA133 + SATA H/D or 2 SATA H/D 7.1 channel audio codec RealTek ALC850. - Compliance with AC97 v2.3 Spec. - Meet PC2001 audio performance requirement. Supports dual LAN jacks - 1 LAN supports 10/100/1000 Fast Ethernet by Marvell 88E1111 PHY - 1 LAN supports 10/100/1000 Fast Ethernet by Realtek 8110S (1000Mbps) VIA 6306 chipset - Supports up to 3 x 1394 ports. - Transfer rate is up to 400Mbps On-Board Peripherals On-Board Peripherals include: - 1 floppy port supports 2 FDD with 360K, 720K, 1.2M, 1.44M and 2.88Mbytes - 1 serial port - 1 parallel port supports SPP/EPP/ECP mode - 1 Audio jack(5-in-1), coaxial/fiber SPDIF out - 8 USB 2.0 ports (Rear x 4 / Front x 4) - 2 RJ45 LAN jack - 3 IEEE 1394 connectors (Rear x 1/ Front x 2)
Key Features
MSI K8N NEO2 PLATINUM Retail. Processor manufacturer: AMD, Processor socket: Socket 939, Processor system buses supported: 1000 MHz. Maximum internal memory: 4 GB. RAID levels: 0+1, JBOD. Networking features: 10/100/1000 Fast Ethernet. Motherboard form factor: ATX, Power source type: ATX
