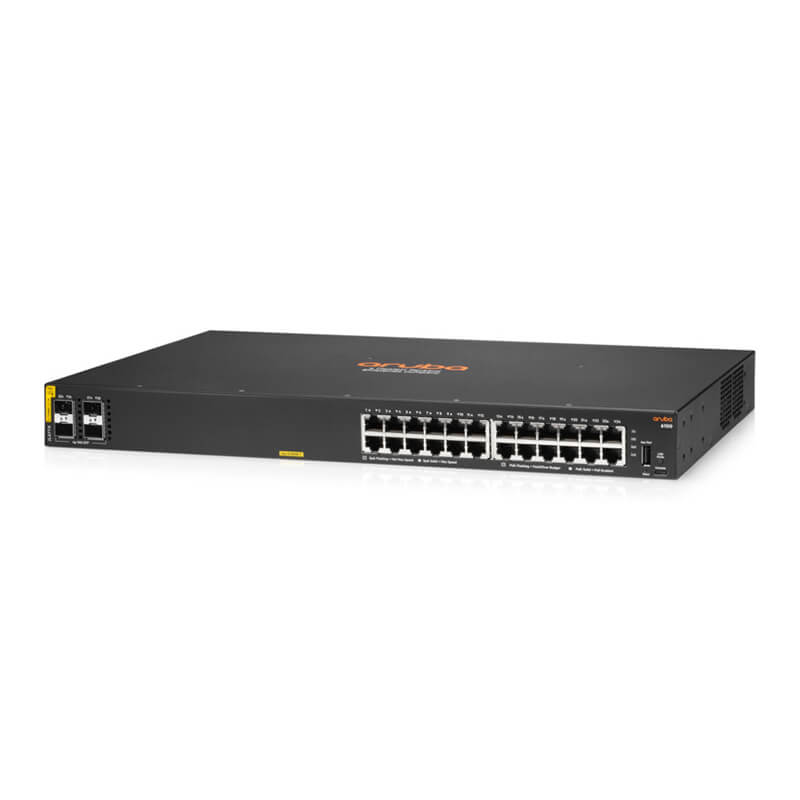

JL677A, Aruba 6100 Switch, 24xGE/4xSFP+/Layer 2
Brand: Aruba · SKU: JL677A · MPN: JL677A · Category: Networking
HPE Aruba 6100 24G Class4 PoE 4SFP+ 370W Switch (JL677A) with 24x 10/100/1000BASE-T ports delivering IEEE 802.3af/at Class 4 PoE/PoE+ from a 370W budget (up to 30W per port) plus 4x 1G/10G SFP+ uplinks, 128 Gbps switching capacity, 95.2 Mpps throughput, 8,192-entry MAC table, Layer 2 switching with static IPv4/IPv6 routing and ACLs, managed via Aruba Central, Web GUI, CLI, or Aruba NetEdit, 1U rack-mountable with no software licensing required.
Specifications
| Latency | 1 Gbps: 1.5 us; 10 Gbps: 1.8 us |
|---|---|
| Management | Aruba Central (cloud), Web GUI, CLI, Aruba NetEdit, REST APIs |
| PoE Budget | 370W total, up to 30W per port |
| Throughput | 95.2 Mpps |
| Form Factor | 1U rack-mountable, 4.39 x 44.2 x 26.82 cm, 4.19 kg (9.24 lb), fixed 500W PSU |
| PoE Standard | IEEE 802.3af/802.3at, Class 4 (PoE+) |
| Product Type | Ethernet Access Switch (managed, PoE+) |
| Layer Support | Layer 2 with static IPv4/IPv6 routing (512 routes), ACLs, QoS |
| MAC Address Table | 8,192 entries |
| Power Consumption | 22.9W idle / 32.7W maximum without PoE load (up to 455W at full 370W PoE load) |
| Processor / Memory | Dual-core ARM Cortex-A9 @ 1016 MHz, 4 GB DDR3, 16 GB eMMC |
| Switching Capacity | 128 Gbps |
| Total Number of Ports | 24x 10/100/1000BASE-T (PoE) + 4x 1G/10G SFP+ uplinks |
| Warranty | 3-Year Warranty |
Key Features
The Aruba CX 6100 24G Class4 PoE 4SFP+ 370W (JL677A) is an entry-level Layer 2 access switch for branch offices, SMBs, and mid-market enterprises that need to power edge devices: its 24 Gigabit Ethernet ports supply IEEE 802.3af/at Class 4 PoE/PoE+ (up to 30W per port) from a 370W budget, ideal for wireless APs, IP phones, and security cameras. Four integrated 1G/10G SFP+ uplinks, 128 Gbps switching capacity, and 95.2 Mpps throughput handle access-layer traffic in a 1U chassis running AOS-CX with static routing, IPv6, ACLs, and robust QoS. Manage it through cloud-based Aruba Central, Aruba NetEdit, the Web GUI, or standard CLI, with no software licensing fees.
