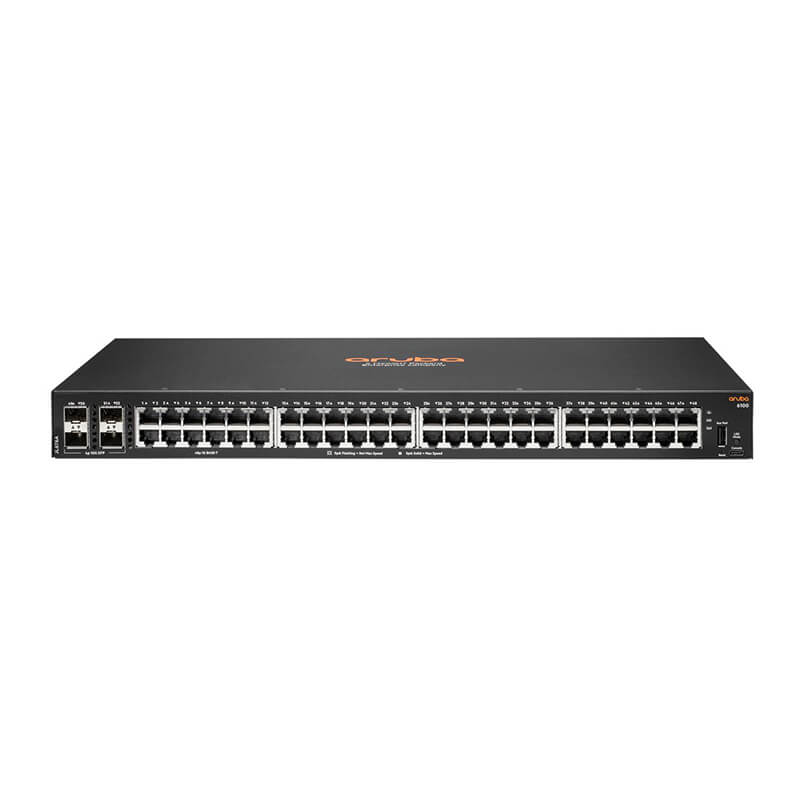

JL676A, Aruba 6100 Switch, 48xGE/4xSFP+ ports/Fanless/No PSU
Brand: Aruba · SKU: JL676A · MPN: JL676A · Category: Networking
HPE Aruba 6100 48G 4SFP+ Switch (JL676A) with 48x 10/100/1000BASE-T RJ-45 ports and 4x 1G/10G SFP+ uplinks, 176 Gbps switching capacity, 98.6 Mpps throughput, 8,192-entry MAC table, Layer 2 switching with static IPv4/IPv6 routing, ACLs and robust QoS, dual-core ARM Cortex-A9 CPU with 16 GB eMMC, managed via Aruba Central, Web GUI, CLI, or Aruba NetEdit, 1U rack-mountable with no software licensing required.
Specifications
| PoE | None (non-PoE model) |
|---|---|
| Latency | 1 Gbps: 1.9 us; 10 Gbps: 1.8 us |
| Management | Aruba Central (cloud), Web GUI, CLI, Aruba NetEdit, REST APIs |
| Throughput | 98.6 Mpps |
| Form Factor | 1U rack-mountable, 4.4 x 44.2 x 24.7 cm, 3.42 kg (7.54 lb), fixed fans |
| Product Type | Ethernet Access Switch (managed) |
| Layer Support | Layer 2 with static IPv4/IPv6 routing (512 routes), ACLs, QoS |
| MAC Address Table | 8,192 entries |
| Power Consumption | 20.6W idle / 44.2W maximum |
| Processor / Memory | Dual-core ARM Cortex-A9 @ 1016 MHz, 4 GB DDR3, 16 GB eMMC |
| Switching Capacity | 176 Gbps |
| Total Number of Ports | 48x 10/100/1000BASE-T + 4x 1G/10G SFP+ uplinks |
| Warranty | 3-Year Warranty |
Key Features
The Aruba CX 6100 48G 4SFP+ (JL676A) is an entry-level Layer 2 access switch built for SMBs, branch offices, and midsize enterprise edge deployments, pairing 48 Gigabit Ethernet ports with four integrated 1G/10G SFP+ uplinks in a 1U chassis. Running the modern AOS-CX operating system, it delivers 176 Gbps switching capacity and 98.6 Mpps throughput with low latency (1.9 us at 1 Gbps, 1.8 us at 10 Gbps), plus static routing, IPv6, ACLs, and robust QoS. Management is flexible: cloud-based Aruba Central, Aruba NetEdit automation, an easy Web GUI, or industry-standard CLI, with REST APIs for programmability. With no software licensing required, it is a cost-effective way to add reliable 48-port gigabit access with 10G uplinks.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this JL676A, Aruba 6100 Switch, 48xGE/4xSFP+ ports/Fanless/No PSU (JL676A) is 100% genuine Aruba hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This JL676A, Aruba 6100 Switch, 48xGE/4xSFP+ ports/Fanless/No PSU includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the JL676A, Aruba 6100 Switch, 48xGE/4xSFP+ ports/Fanless/No PSU compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the JL676A.
