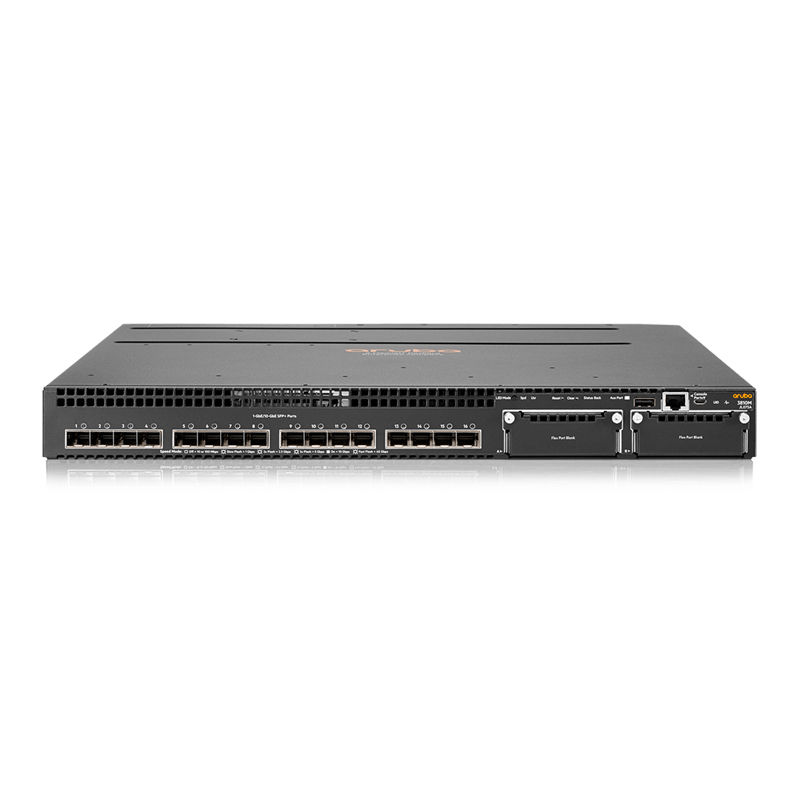

JL075A, Aruba 3810M Switch, 16xSFP+ Ports/2 Slots/Modular Design
Brand: Aruba · SKU: JL075A · MPN: JL075A · Category: Networking
Specifications
| Type | Aruba 3810M 16SFP+ 2-slot Switch |
|---|---|
| Model | JL075A |
| Safety | EN 60950/IEC 60950, UL 60950, UL 60950-1, CAN/CSA 22.2 No. 60950, EN 60825, CSA 22.2 60950-1, EN62479:2010, EN 60950-1:2006 +A11:2009 +A1:2010 +A12:2011+A2:2013, EN62368-1, Ed. 2, IEC 60825:2007, IEC 60950-1:2005 Ed.2; Am 1:2009+A2:2013, EN60850-1:2007 / IEC 60825-1: 2007 Class1 Class 1 Laser Products / Laser Klasse 1, UL 62368-1 Ed.2 |
| Fan Tray | Includes: 1 x JL088A, 1 fan tray slot, Switch ships with 1 JL088A fan tray installed. Spares ordered separately. |
| Immunity | Generic: EN55022: 2010, EN: EN55024: 2010, ESD: IEC 61000-4-2, Radiated: IEC 61000-4-3; 3 V/m, EFT/Burst: IEC 61000-4-4; 1.0 kV (power line), 0.5 kV (signal line), Surge: IEC 61000-4-5; 1 kV/2 kV AC, Conducted: IEC 61000-4-6; 3 V, Power frequency magnetic field: IEC 61000-4-8; 1 A/m, 50 or 60 Hz, Voltage dips and interruptions: IEC 61000-4-11; >95% reductions, 0.5 period; 30% reduction, 25 periods, Harmonics: EN61000-3-2:2006 +A1:2009 +A2:2009 Class A, Flicker: EN61000-3-3:2008 |
| Emissions | FCC Class A, VCCI Class A, EN 55022/CISPR 22 Class A, EN 60950-1:2006 +A11:2009 +A1:2010 +A12:2011+A2:2013 |
| Management | Aruba AirWave Network Management, IMC – Intelligent Management Center, Command-line interface, Web browser, Configuration menu, Out-of-band management (RJ-45 Ethernet), In-line and out-of-band, Out-of-band management (serial RS-232c or micro usb) |
| Environment | Operating temperature: 0°C to 45°C (32°F to 113°F), Operating relative humidity: 15% to 95% @ 40°C (104°F), noncondensing, Nonoperating/Storage temperature: -40°C to 70°C (-40°F to 158°F), Nonoperating/Storage relative humidity: 15% to 90% @ 65°C (149°F), noncondensing, Altitude: Up to 10,000 ft (3 km), Acoustic: Power: 39 dB, Pressure: 22.3 dB |
| Performance | IPv6 Ready Certified, 1000 Mb Latency: < 2.8 µs (FIFO 64-byte packets), 10 Gb/s Latency: < 1.8 µs (FIFO 64-byte packets), 40 Gb/s Latency: 1.5 µs (FIFO 64-byte packets), Throughput: Up to 285.7 Mbps (64-byte packets), Routing/Switching capacity: 480 Gbps, Switch fabric speed: 508 Gbps, Routing table size: 10000 entries (IPv4), 5000 entries (IPv6), MAC address table size: 64000 entries |
| Product Type | Aruba 3810M 16SFP+ 2-slot Switch |
| Power Supplies | 2 power supply slots, 1 minimum power supply required (ordered separately) |
| I/O Ports and Slots | 16 SFP+ fixed 1000/10000 SFP+ ports; Duplex: 100BASE-TX: half or full; 1000BASE-T: full only; Ports 1 - 16 support MACSec, 2 open module slots, Supports up to 8 SFP+ ports or 2 40GbE ports with optional module |
| Included Accessories | 1 Aruba 3810 Switch Fan Tray (JL088A) |
| Memory and Processor | P2020 Dual Core @ 1.2 GHz, 4 GB DDR3 SDRAM, 1 GB SD Card, Dual ARM Coretex A9 @ 1 GHz, 2 GB DDR3 SDRAM, Packet buffer size: 13.5 MB Internal |
| Mounting and Enclosure | Mounts in an EIA-standard 19 in. telco rack or equipment cabinet (hardware included); Horizontal surface mounting only |
| Physical Characteristics | Dimensions (H x W x D): 4.39 x 44.25 x 43.13 cm (1.73 x 17.42 x 16.98 in) (1U height) |
| Additional Ports and Slots | 1 stacking module slot, 1 RJ-45 serial console port, 1 RJ-45 out-of-band management port, 1 dual-personality (RJ-45 or USB micro-B) |
| Warranty | 3-Year Warranty |
Key Features
- OEM Genuine Component verified by certified technicians.
- Clean serial number ready for service contract registration.
- Electrostatic Discharge (ESD) safe packaging.
- Supports hot-swapping for zero-downtime maintenance.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this JL075A, Aruba 3810M Switch, 16xSFP+ Ports/2 Slots/Modular Design (JL075A) is 100% genuine Aruba hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This JL075A, Aruba 3810M Switch, 16xSFP+ Ports/2 Slots/Modular Design includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the JL075A, Aruba 3810M Switch, 16xSFP+ Ports/2 Slots/Modular Design compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the JL075A.
