Brand: HPE Aruba · SKU: JL073A · MPN: JL073A · Category: Networking

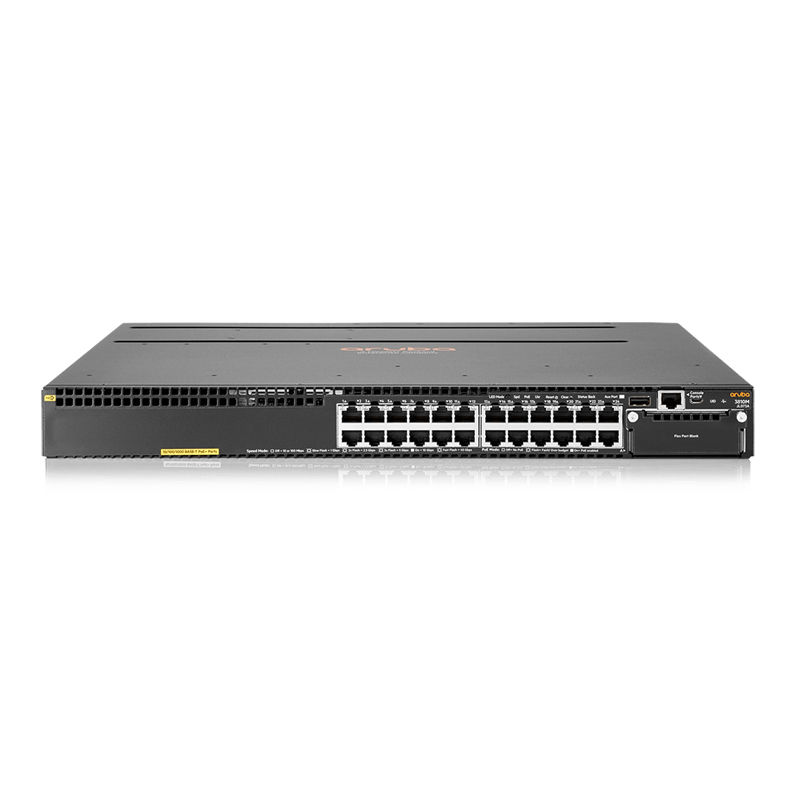

The HPE Aruba JL073A switch, part of the Aruba 3810M Series, is an enterprise-grade, advanced Layer 3 stackable switch designed for high-performance networking, resiliency, and scalability in enterprise, SMB, and branch office environments. It features 24 RJ-45 autosensing 10/100/1000 PoE+ ports, supporting IEEE 802.3at PoE+ with a maximum PoE budget of 840W (depending on configuration/power supplies). The switch supports resilient stacking technology for up to 10 units via an optional backplane module (stacking cable options listed separately). It includes one open module slot for expansion, capable of supporting modules like the JL079A (2x 40GB QSFP+) or JL081A (4x 10GB SFP+). Performance metrics include a switching capacity of 160 Gbps and a forwarding rate of up to 95.2 Mpps (64-byte packets), with a switch fabric speed of 169 Gbps. It supports advanced Layer 2 and 3 features including OSPF, IPv6, IPv4 BGP, robust QoS, and policy-based routing, all included with no software licensi
| Ports | 24 x 10/100/1000 (PoE+ RJ-45) |
|---|---|
| Form Factor | Rack-mountable (1U) |
| PoE Capability | PoE+ (840W maximum budget) |
| Product Series | Aruba 3810M |
| Forwarding Rate | Up to 95.2 Mpps (64-byte packets) |
| Processor/Memory | Dual ARM Coretex A9 @ 1 GHz, 2 GB DDR3 SDRAM |
| Latency (1000 Mb) | < 2.8 µs (FIFO 64-byte packets) |
| Switching Capacity | 160 Gbps |
| Uplink Module Slots | 1 x Open Module Slot (Supports 4x 10GbE SFP+ or 1x 40GbE QSFP+ via optional modules) |
| MAC Address Table Size | 64k Entries |
| Routing Protocol Support | OSPF, RIP, BGP, VRRP, RIPng, Static IPv4/IPv6 Routing |
| Warranty | Limited Lifetime Warranty (from HPE official source), 90 Days (from some resellers). |
| Weight | 13.02 lb |
| Dimensions | 17.42 x 16.98 x 1.73 in |
The Aruba 3810M Switch Series provides performance and resiliency for enterprises, SMBs, and branch office networks. The JL073A model is an advanced Layer 3 switch featuring 24 PoE+ ports, resilient stacking technology for virtualization, and modular uplinks for backhaul capacity. It supports HPE Smart Rate multi-gigabit ports for high-speed access points and IoT devices. The platform offers a comprehensive feature set including OSPF, IPv6, IPv4 BGP, robust QoS, and policy-based routing, all without required software licensing. It is designed for easy deployment and management via tools like Aruba AirWave or Aruba Central.
Yes, this HPE Aruba 3810M 24G PoE+ 1-slot Switch (JL073A) (JL073A) is 100% genuine HPE Aruba hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
This HPE Aruba 3810M 24G PoE+ 1-slot Switch (JL073A) includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the JL073A.
