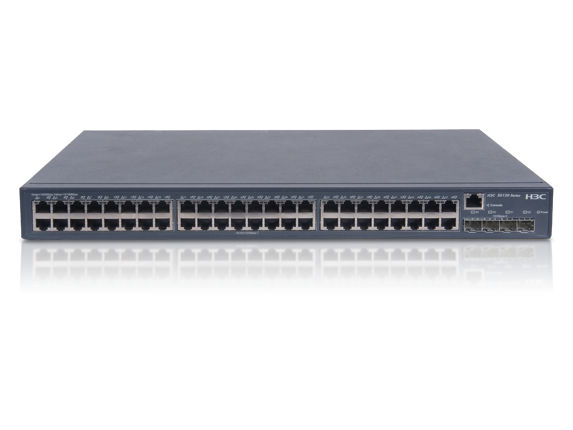

HP A 5120-48G SI Managed L3 Gigabit Ethernet (10/100/1000) 1U Black
Brand: HP · SKU: JE072AABA · MPN: JE072AABA · Category: Components
HP A 5120-48G SI, Managed, L3, Gigabit Ethernet (10/100/1000), Full duplex, Rack mounting, 1U. HP A 5120-48G SI Managed L3 Gigabit Ethernet (10/100/1000) 1U Black (part number JE072AABA) is an enterprise components product available from Server Tech Central. Key specifications include depth 260.1 mm, width 439.4 mm, height 43.7 mm, weight 5 kg, stackable Yes, throughput 77.4 Mpps, form factor 1U, full duplex Yes. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 260.1 mm |
|---|---|
| Width | 439.4 mm |
| Height | 43.7 mm |
| Weight | 5 kg |
| Stackable | Yes |
| Throughput | 77.4 Mpps |
| Form factor | 1U |
| Full duplex | Yes |
| Memory type | SDRAM |
| Switch type | Managed |
| Auto-sensing | Yes |
| Console port | RJ-45 |
| Flash memory | 128 MB |
| Switch layer | L3 |
| VLAN support | Yes |
| DHCP features | DHCP client |
| IGMP snooping | Yes |
| Rack mounting | Yes |
| Product colour | Black |
| Internal memory | 128 MB |
| Routing entries | 32 |
| SSH/SSL support | Yes |
| AC input voltage | 100 - 240 V |
| Heat dissipation | 189 BTU/h |
| Warranty | 3-Year Warranty |
| Weight | 5 kg |
| Dimensions | 439.4 mm x 260.1 mm x 43.7 mm |
Product Description
The HP 5120 SI Switch Series comprises intelligent, fully managed Gigabit Ethernet switches that provide high performance, high port density, and simplified installation to improve the value of your network infrastructure investment. The 5120 SI series is enhanced for the access layer in enterprise networks that require Gigabit Ethernet to the desktop or at the distribution layer in metropolitan area networks (MANs). Wire-speed forwarding delivers more effective throughput and the bandwidth necessary for mission-critical data and high-speed communications. As part of their comprehensive security control, 5120 SI switches employ 802.1X authentication to identify users who attempt to access the network. These switches are highly reliable, providing redundancy while eliminating loops in the network. They also offer a range of management protocols to simplify network administration. Quality of Service (QoS) • Broadcast control: allows limitation of broadcast traffic rate to cut down on unwanted network broadcast traffic Management • Friendly port names: allow assignment of descriptive names to ports Connectivity • Auto-MDIX: automatically adjusts for straight-through or crossover cables on all 10/100/1000 ports Performance • Nonblocking architecture: up to 104 Gbps nonblocking switching fabric provides wire-speed switching with up to 77.4 million pps throughput Resiliency and high availability • Separate data and control paths: increases security and performance Layer 2 switching • 8K MAC address table: provides access to many Layer 2 devices Layer 3 services • Address Resolution Protocol (ARP): determines the MAC address of another IP host in the same subnet; supports static ARPs; gratuitous ARP allows detection of duplicate IP addresses
Key Features
HP A 5120-48G SI. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 48, Console port: RJ-45. Full duplex. MAC address table: 8192 entries, Switching capacity: 104 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u. Rack mounting, Form factor: 1U
