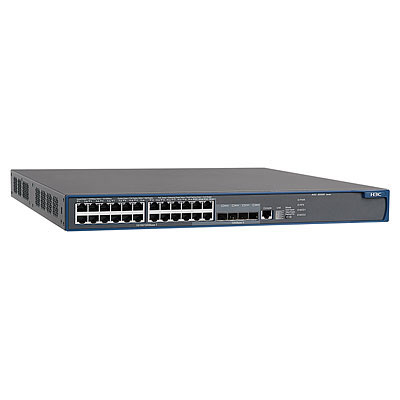

HP A 5500-24G-PoE EI Managed L3 Power over Ethernet (PoE) 1U Black
Brand: HP · SKU: JD378AR#ABB · MPN: JD378AR#ABB · Category: Components
HP A 5500-24G-PoE EI, Managed, L3, Full duplex, Power over Ethernet (PoE), Rack mounting, 1U. HP A 5500-24G-PoE EI Managed L3 Power over Ethernet (PoE) 1U Black (part number JD378AR#ABB) is an enterprise components product available from Server Tech Central. Key specifications include depth 420 mm, width 440 mm, height 43.6 mm, weight 6 kg, stackable Yes, ip routing Yes, throughput 107.2 Mpps, 10g support No. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 420 mm |
|---|---|
| Width | 440 mm |
| Height | 43.6 mm |
| Weight | 6 kg |
| Stackable | Yes |
| IP routing | Yes |
| Throughput | 107.2 Mpps |
| 10G support | No |
| Form factor | 1U |
| Full duplex | Yes |
| MIB support | IEEE 802.3 Ethernet MIB |
| Memory type | SDRAM |
| Switch type | Managed |
| Console port | RJ-45 |
| Flash memory | 32 MB |
| Switch layer | L3 |
| DHCP features | DHCP server, DHCP client |
| IGMP snooping | Yes |
| Rack mounting | Yes |
| Rate limiting | Yes |
| Auto MDI/MDI-X | Yes |
| Port mirroring | Yes |
| Product colour | Black |
| Internal memory | 256 MB |
| Warranty | 3-Year Warranty |
| Weight | 6 kg |
| Dimensions | 440 mm x 420 mm x 43.6 mm |
Product Description
These Gigabit Ethernet switches deliver outstanding security, reliability, and multiservice support capabilities for robust switching at the edge or aggregation layer of large enterprise and campus networks, or in the core layer of SMB networks. The HP 5500 EI Switch Series is comprised of Layer 2/3 Gigabit Ethernet switches that can accommodate the most demanding applications and provide resilient and secure connectivity as well as the latest traffic prioritization technologies to enhance applications on convergent networks. With complete IPv4/IPv6 dual-stack support, the series provides a migration path from IPV4 to IPV6. The series has hardware support for IPV6. Designed for increased flexibility, these switches are available with 24 or 48 Gigabit Ethernet ports. Power over Ethernet (PoE) and non-PoE models are available with optional GbE and 10 GbE expansion capability. The all-fiber model with dual power supplies is ideal for applications that require the highest availability. Quality of Service (QoS) • Storm restraint: allows limitation of broadcast, multicast, and unknown unicast traffic rate to cut down on unwanted broadcast traffic on the network Management • Friendly port names: allow assignment of descriptive names to ports Connectivity • Auto-MDIX: automatically adjusts for straight-through or crossover cables on all 10/100/1000 ports Performance • Nonblocking architecture: up to 192 Gbps nonblocking switching fabric provides wire-speed switching with up to 143 million pps throughput Resiliency and high availability • Separate data and control paths: keeps control separated from services and keeps service processing isolated; increases security and performance Layer 2 switching • 32K MAC addresses: provide access to many Layer 2 devices Layer 3 services • Address Resolution Protocol (ARP): determines the MAC address of another IP host in the same subnet
Key Features
HP A 5500-24G-PoE EI. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports quantity: 24, Console port: RJ-45. Full duplex. Switching capacity: 144 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3u. Power over Ethernet (PoE). Rack mounting, Form factor: 1U
