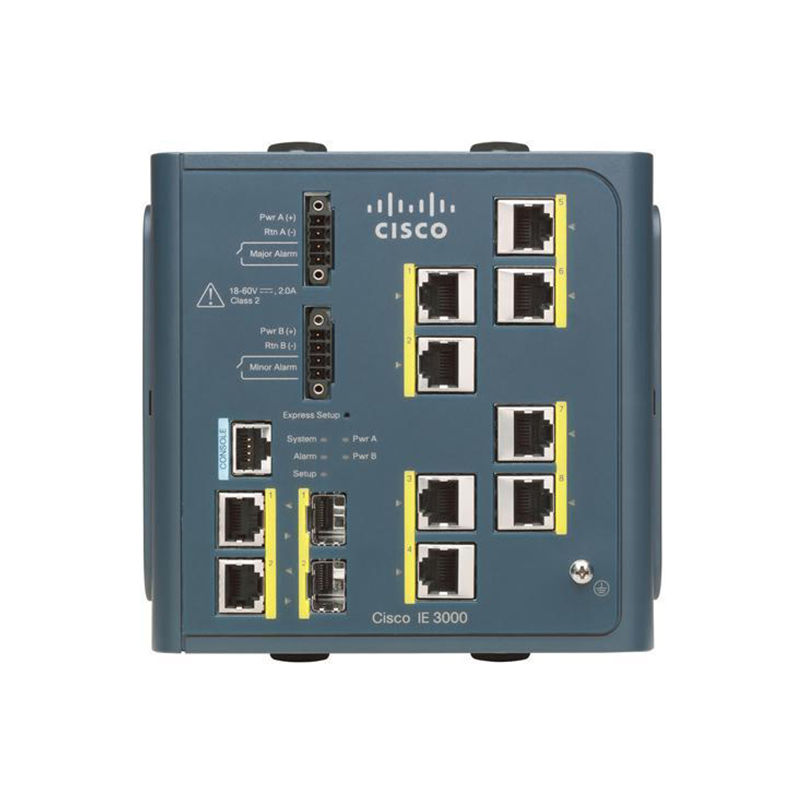

IE-3000-8TC-E, Cisco IE 3000 Switch, 8xFE/Layer 3/Compact size
Brand: Cisco · SKU: IE-3000-8TC-E · MPN: IE-3000-8TC-E · Category: Networking
Specifications
| Model | IE-3000-8TC-E |
|---|---|
| Ports | 8 Ethernet 10/100 ports and 2 dual-purpose uplinks (each dual-purpose uplink port has one active port either 10/100/1000 copper or SFP fiber |
| Power | DC input range 18VDC-60VDC |
| Software | Layer 3 IP Services Image |
| Indicators | Per-port status LED: Link integrity, disabled, activity, speed, full-duplex indications System-status LED: System, link status, link duplex, link speed, indications |
| Performance | Wire-speed switching, 16 Gbps switching fabric Forwarding rate based on 64-byte packets: 6.5 Mpps 128 MB DRAM 64 MB Compact Flash memory Configurable up to 8000 MAC addresses (Layer 2) Configurable up to 2000 MAC addresses (Layer 3) Configurable up to 256 IGMP multicast groups (Layer 2) Configurable up to 1000 IGMP groups and multicast routes (Layer 3) Configurable up to 3,000 unicast routes (Layer 3) Support jumbo frames up to 9018 bytes on Gigabit uplink port and mini-jumbo frame (system MTU) up to 1998 bytes on both 10/100 and 10/100/1000 ports |
| Operating Environment | Operating temperature: -40°C to +75°C -40°C to +70°C (Vented Enclosure – 40 LFM Air Flow) -40°C to +60°C (Sealed Enclosure – 0 LFM Air Flow) -24°C to +75°C (Fan or Blower equipped Enclosure – 200 LFM Air Flow) -40°C to +85°C (IEC 60068-2-2 Environmental Type Testing – 16 hours) Storage temperature: -40°C to +85°C Operating relative humidity: 10 to 95% (non-condensing) Operating altitude: Up to 13,000 ft (3963m) Storage altitude: Up to 15,000 ft (4573m) |
| Connectors and Cabling | 10BASE-T ports: RJ-45 connectors, two-pair Category 3, 4, or 5 UTP cabling 100BASE-TX ports: RJ-45 connectors, two-pair Category 5 UTP cabling 1000BASE-T ports: RJ-45 connectors, four-pair Category 5 UTP cabling 1000BASE-SX, -LX/LH, -ZX SFP-based ports: LC fiber connectors (single/multimode fiber) 100BASE-LX10, -FX: LC fiber connectors (single/multimode fiber) |
| Dimensions (H x W x D) | 6.0”W x 5.8”H x 4.4”D (152mm W x 147mm H x 112mm D) |
| Supported Expansion Modules | Supports 2 Cisco IEM-3000-8TM= modules, 1 Cisco IEM-3000-8FM= module, or 1 Cisco IEM-3000-8TM= module and 1 Cisco IEM-3000-8FM= module |
| Warranty | 3-Year Warranty |
Key Features
- OEM Genuine Component verified by certified technicians.
- Clean serial number ready for service contract registration.
- Electrostatic Discharge (ESD) safe packaging.
- Supports hot-swapping for zero-downtime maintenance.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this IE-3000-8TC-E, Cisco IE 3000 Switch, 8xFE/Layer 3/Compact size (IE-3000-8TC-E) is 100% genuine Cisco hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This IE-3000-8TC-E, Cisco IE 3000 Switch, 8xFE/Layer 3/Compact size includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the IE-3000-8TC-E, Cisco IE 3000 Switch, 8xFE/Layer 3/Compact size compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the IE-3000-8TC-E.
