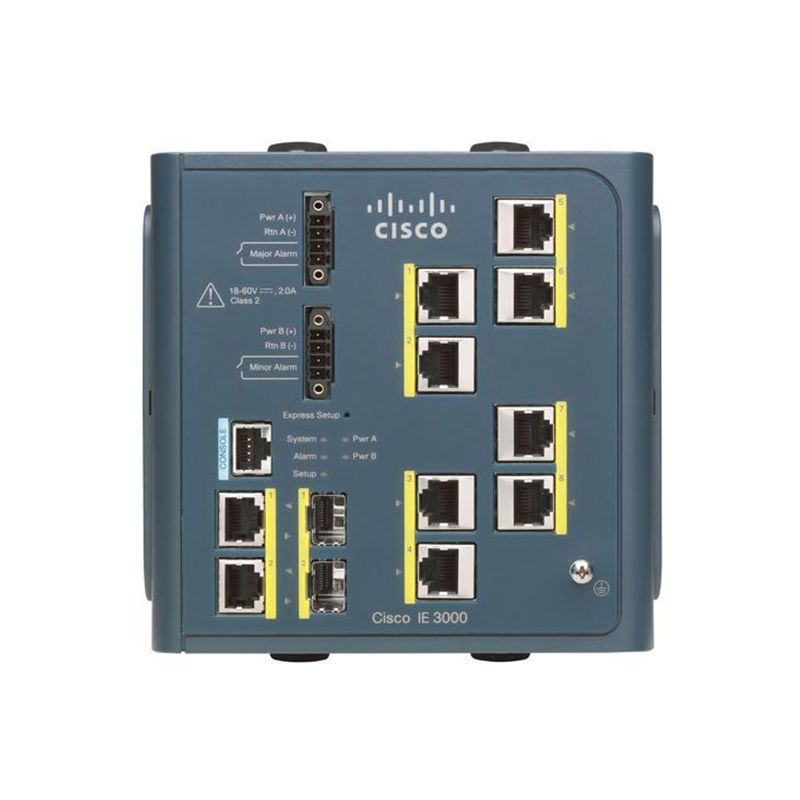

IE-3000-8TC, Cisco IE 3000 Switch, 8x10/100Base-T/2xSFP/No Fan

SKU: IE-3000-8TC · MPN: IE-3000-8TC · Category: Networking

IE-3000-8TC, Cisco IE 3000 Switch, 8x10/100Base-T/2xSFP/No Fan
$1,008.32
In Stock • 10 units

Cisco IE 3000 Switch, 8 10/100 + 2 T/SFP

View Transceivers & Optics Products

Specifications

Ports8 Ethernet 10/100 ports and 2 dual-purpose uplinks (each dual-purpose uplink port has one active port either 10/100/1000 copper or SFP fiber
PowerDC input range 18VDC-60VDC
Weight● Cisco IE-3000-4TC, Cisco IE-3000-4TC-E: 4.4 lb (2.0 kg) ● Cisco IE-3000-8TC, Cisco IE-3000-8TC-E: 4.4 lb (2.0 kg) ● Cisco IEM-3000-8TM=: 2.2 lb (1.0 kg) ● Cisco IEM-3000-8FM=: 3.2 lb (1.45 kg) ● Cisco IEM-3000-4SM=: 2.5 lb (1.1 Kg) ● Cisco IEM-3000-8SM=: 3.0 lb (1.38 Kg) ● Cisco IEM-3000-4PC=: 2.4 (1.08 Kg) ● Cisco IEM-3000-4PC-4TC=: 2.5 (1.16 Kg) ● Cisco PWR-IE50W-AC=: 1.4 lb (0.65 kg) ● Cisco PWR-IE50W-AC-IEC=: 1.4 lb (0.65kg) ● Cisco PWR-IE65W-PC-DC=: 2.6 (1.18 Kg) ● Cisco PWR-IE65W-PC-AC=: 2.7 (1.24 Kg)
SoftwareLayer 2 LAN Base Image
Indicators● Per-port status LED: Link integrity, disabled, activity, speed, full-duplex indications ● System-status LED: System, link status, link duplex, link speed, indications
Performance● Wire-speed switching, 16 Gbps switching fabric ● Forwarding rate based on 64-byte packets: 6.5 Mpps ● 128 MB DRAM ● 64 MB Compact Flash memory ● Configurable up to 8000 MAC addresses (Layer 2) ● Configurable up to 2000 MAC addresses (Layer 3) ● Configurable up to 256 IGMP multicast groups (Layer 2) ● Configurable up to 1000 IGMP groups and multicast routes (Layer 3) ● Configurable up to 3,000 unicast routes (Layer 3) ● Support jumbo frames up to 9018 bytes on Gigabit uplink port and mini-jumbo frame (system MTU) up to 1998 bytes on both 10/100 and 10/100/1000 ports
Operating environmentOperating temperature: -40C to +75C ● -40C to +70C (Vented Enclosure – 40 LFM Air Flow) ● -40C to +60C (Sealed Enclosure – 0 LFM Air Flow) ● -24C to +75C (Fan or Blower equipped Enclosure – 200 LFM Air Flow) ● -40C to +85C (IEC 60068-2-2 Environmental Type Testing – 16 hours) ● Storage temperature: -40C to +85C ● Operating relative humidity: 10 to 95% (non-condensing) ● Operating altitude: Up to 13,000 ft (3963m) ● Storage altitude: Up to 15,000 ft (4573m)
Connectors and cabling● 10BASE-T ports: RJ-45 connectors, two-pair Category 3, 4, or 5 Unshielded Twisted-Pair (UTP) cabling ● 100BASE-TX ports: RJ-45 connectors, two-pair Category 5 UTP cabling ● 1000BASE-T ports: RJ-45 connectors, four-pair Category 5 UTP cabling ● 1000BASE-SX, -LX/LH, -ZX SFP-based ports: LC fiber connectors (single/multimode fiber) ● 100BASE-LX10, -FX: LC fiber connectors (single/multimode fiber)
Dimensions (H x W x D)● Cisco IE-3000-4TC, Cisco IE-3000-4TC-E: 6.0”W x 5.8”H x 4.4”D (152mm W x 147mm H x 112mm D) ● Cisco IE-3000-8TC, Cisco IE-3000-8TC-E: 6.0”W x 5.8”H x 4.4”D (152mm W x 147mm H x 112mm D) ● Cisco IEM-3000-8TM=: 3.5”W x 5.8”H x 4.4”D (89mm W x 147mm H x 112mm D) ● Cisco IEM-3000-8FM=: 3.5”W x 5.8”H x 4.4”D (89mm W x 147mm H x 112mm D) ● Cisco IEM-3000-4SM=: 3.5”W x 5.8”H x 4.4”D (89mm W x 147mm H x 112mm D) ● Cisco IEM-3000-8SM=: 3.5”W x 5.8”H x 4.4”D (89mm W x 147mm H x 112mm D) ● Cisco IEM-3000-4PC=: 3.5”W x 5.8”H x 4.4”D (89mm W x 147mm H x 112mm D) ● Cisco IEM-3000-4PC-4TC=: 3.5”W x 5.8”H x 4.4”D (89mm W x 147mm H x 112mm D) ● Cisco PWR-IE50W-AC=: 2.0”W x 5.8”H x 4.4”D (51mm W x 147mm H x 112mm D) ● Cisco PWR-IE50W-AC-IEC=: 2.0”W x 5.8”H x 4.4”D (51mm W x 147mm H x 112mm D) ● Cisco PWR-IE65W-PC-AC=: 2.6”W x 5.9”H x 4.6”D (66mm W x 150mm H x 117mm D) ● Cisco PWR-IE65W-PC-DC=: 2.6”W x 5.9”H x 4.6”D (66mm W x 150mm H x 117mm D)
Supported Expansion ModulesEach switch supports 2 Cisco IEM-3000-8TM= modules, 1 Cisco IEM-3000-8FM= module, or 1 Cisco IEM-3000-8TM= module and 1 Cisco IEM-3000-8FM= module
Mean Time Between Failures (MTBF)● Cisco IE-3000-4TC, Cisco IE-3000-4TC-E: 363,942 ● Cisco IE-3000-8TC, Cisco IE-3000-8TC-E: 329,451 ● Cisco IEM-3000-8TM=: 926,999 ● Cisco IEM-3000-8FM=: 264,689 ● Cisco IEM-3000-4SM=: 8,887,990 ● Cisco IEM-3000-8SM=: 7,732,890 ● Cisco IEM-3000-4PC=: 1,494,990 ● Cisco IEM-3000-4PC-4TC=: 1,291,440 ● Cisco PWR-IE50W-AC=: 1,662,359 ● Cisco PWR-IE50W-AC-IEC=: 1,662,359 ● Cisco PWR-IE65W-PC-DC=: 2,468,430 ● Cisco PWR-IE65W-PC-AC=: 2,488,401
Warranty3-Year Warranty

Key Features

  • OEM Genuine Component verified by certified technicians.
  • Clean serial number ready for service contract registration.
  • Electrostatic Discharge (ESD) safe packaging.
  • Supports hot-swapping for zero-downtime maintenance.

Frequently Asked Questions

Is this product genuine OEM?

Yes, this IE-3000-8TC, Cisco IE 3000 Switch, 8x10/100Base-T/2xSFP/No Fan (IE-3000-8TC) is 100% genuine OEM hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.

What warranty is included?

This IE-3000-8TC, Cisco IE 3000 Switch, 8x10/100Base-T/2xSFP/No Fan includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.

How long does shipping take?

We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.

Can I return this product?

Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.

Is the IE-3000-8TC, Cisco IE 3000 Switch, 8x10/100Base-T/2xSFP/No Fan compatible with my system?

Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the IE-3000-8TC.
