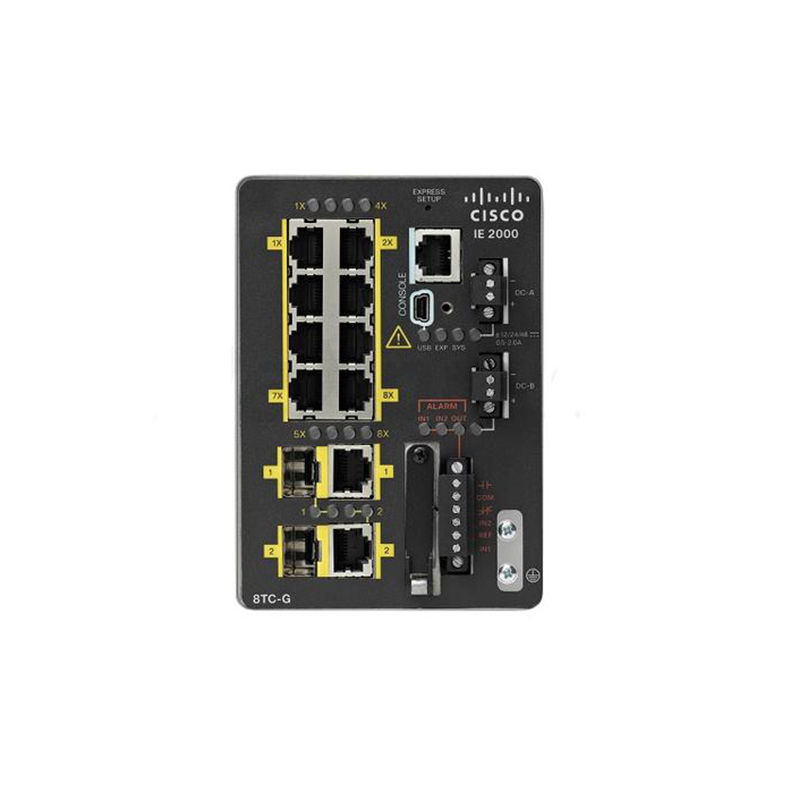

Brand: Cisco · SKU: IE-2000-8TC-G-L · MPN: IE-2000-8TC-G-L · Category: Networking
The Cisco IE-2000-8TC-G-L is an Industrial Ethernet switch designed for demanding environments, featuring 8x Fast Ethernet RJ45 ports and 2x combo Gigabit Ethernet ports (SFP/RJ45) for flexible connectivity. It operates with the LAN Lite software feature set and is part of the IE 2000 series, known for its compact form factor, ruggedness, and support for industrial partner applications like Ethernet/IP and PROFINET. It includes dual-input DC power supply capability and supports DIN rail mounting (mount sold separately). Key performance specs include a switching capacity of 7.6 Gbps and a forwarding rate of up to 5.66 Mpps (with 64-byte packets).
| DRAM | 256MB with ECC |
|---|---|
| Alarm I/O | Two alarm inputs (dry contact), one alarm output relay |
| RJ45 Ports | 8x Fast Ethernet (10/100) |
| Total Ports | 10 |
| Flash Memory | 64MB on-board, 1GB removable SD flash memory card (optional) |
| Product Family | Industrial Ethernet 2000 Series |
| Forwarding Rate | 5.66 Mpps (64-byte packets) |
| Switching Capacity | 7.6 Gbps |
| Uplink/Combo Ports | 2x 1 Gigabit Ethernet Combo (SFP/RJ45) |
| Manufacturing License | LAN Lite |
| MAC Address Table Size | 8000 |
| Warranty | Varies by seller (e.g., 30 Days Easy Return Warranty mentioned by one seller) |
| Weight | 1.25 kg (Short chassis) / 1.56 kg (Long chassis) |
| Dimensions | Short Chassis: 5.1"H x 3.6"W x 4.51"D (130mm H x 91.4mm W x 115mm D) or Long Chassis: 5.1"H x 3.6"W x 5.26"D (130mm H x 91.4mm W x 134mm D) |
The Cisco IE-2000-8TC-G-L is a compact, industrially ruggedized access switch providing 8 Fast Ethernet copper ports and 2 Gigabit combo ports. It runs the LAN Lite software, offering essential Layer 2 switching features suitable for harsh environments where IP-based connectivity is required.
Yes, this Cisco Industrial Ethernet 2000 Series IE-2000-8TC-G-L Switch (IE-2000-8TC-G-L) is 100% genuine Cisco hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
This Cisco Industrial Ethernet 2000 Series IE-2000-8TC-G-L Switch includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the IE-2000-8TC-G-L.
