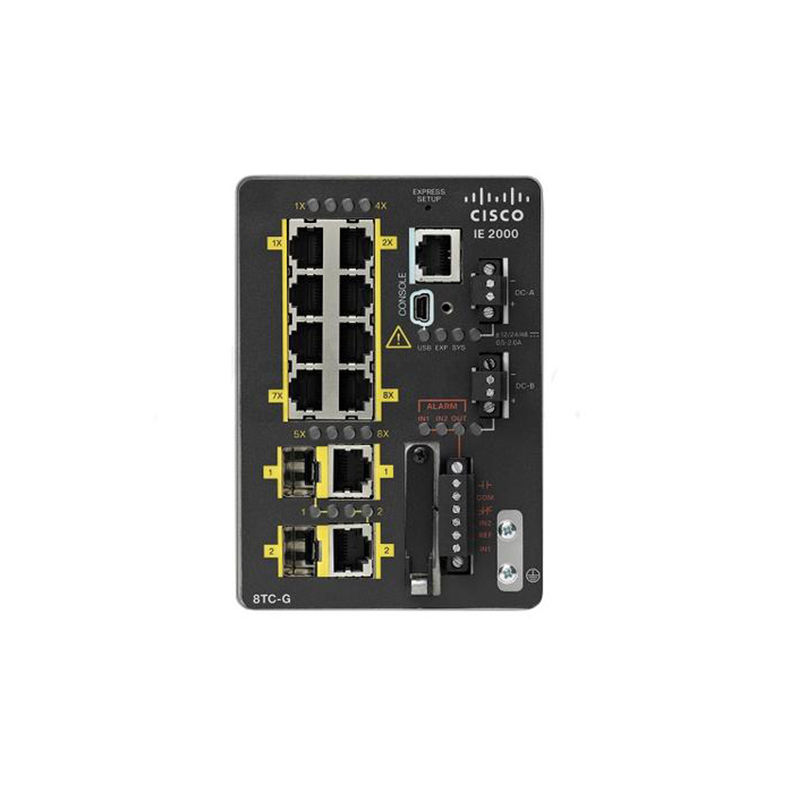

Cisco IE-2000-8TC-G-E Industrial Ethernet Switch
Brand: Cisco · SKU: IE-2000-8TC-G-E · MPN: IE-2000-8TC-G-E · Category: Networking
The Cisco IE 2000 Series is a range of compact, ruggedized access switches designed for low cost and small sizes in industrial environments. The IE-2000-8TC-G-E features 8 x 10/100 Mbps RJ-45 downlinks and 2 x 100/1000 Mbps combo SFP/RJ-45 uplinks. It operates with the Cisco IOS LAN Base software feature set, supports industrial protocols like EtherNet/IP and PROFINET, and offers features such as Cisco REP for resiliency and enterprise-grade security. It is IP30-rated with fanless convection cooling and an extended operating temperature range for harsh facilities.
Specifications
| VLANs | Up to 1,005 |
|---|---|
| Alarm I/O | 2 dry-contact inputs; 1 Form-C output relay |
| DRAM/Flash | 256 MB DRAM with ECC; 64 MB on-board Flash; optional 1 GB SD card |
| Feature Set | Cisco IOS LAN Base |
| Power Input | Dual-input: 100–240 VAC/1.25 A or 125–250 VDC/1.25 A |
| Total Ports | 10 |
| Downlink Ports | 8 × 10/100 Mbps RJ-45 |
| Forwarding Rate | 5.66 Mpps (64-byte packets) |
| MAC Address Table | 8,000 entries |
| Uplink Interfaces | 2 × 100/1000 Mbps SFP/RJ-45 combo |
| Switching Bandwidth | 7.6 Gbps full-duplex |
| Forwarding Bandwidth | 3.8 Gbps |
| Industrial Protocols | EtherNet/IP, PROFINET, IEEE 1588v2 PTP |
| Operating Temperature | –40 °C to +75 °C |
| Warranty | 1 year limited warranty (as per one source) |
| Weight | 3.45 lb (1.56 kg) |
| Dimensions | 5.1″ × 3.6″ × 5.26″ (130 × 91.4 × 134 mm) (H x W x D, Including DIN Rail mounting) |
Key Features
The Cisco IE-2000-8TC-G-E is a compact, ruggedized industrial switch built for harsh environments. It offers 8 Fast Ethernet access ports and 2 Gigabit Ethernet uplink ports (combo SFP/RJ-45). It supports essential industrial features like EtherNet/IP and PROFINET, redundancy via Cisco REP, and enterprise-grade security. Designed for DIN rail mounting with fanless cooling, it is ideal for access layer connectivity in sectors like energy, utilities, and manufacturing.
