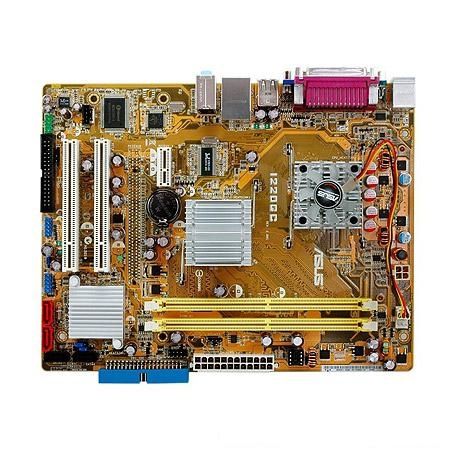

ASUS I220GC motherboard LGA 775 (Socket T) micro ATX
Brand: ASUS · SKU: I220GC · MPN: I220GC · Category: Components
ASUS I220GC, Intel, LGA 775 (Socket T), 4 GB, Non-ECC, 224 MB, micro ATX
Specifications
| Depth | 188.7 mm |
|---|---|
| Width | 244 mm |
| PCI slots | 2 |
| Audio chip | Realtek ALC662 |
| Microphone in | Yes |
| CD/AUX audio in | Yes |
| BIOS memory size | 64 Mbit |
| Bundled software | ASUS PC Probe II ASUS Update Anti-virus software |
| Drivers included | Yes |
| Processor socket | LGA 775 (Socket T) |
| CPU fan connector | Yes |
| Headphone outputs | 1 |
| Power source type | ATX |
| ECC сompatibility | Non-ECC |
| USB 2.0 connectors | 2 |
| Graphics controller | Intel GMA 950 |
| PS/2 ports quantity | 2 |
| PCI Express x1 slots | 1 |
| S/PDIF out connector | Yes |
| Audio output channels | 5.1 channels |
| Serial ports quantity | 1 |
| Manageability features | WfM 2.0, DMI 2.0, WOL by PME, WOR by PME |
| Number of memory slots | 2 |
| Processor manufacturer | Intel |
| Warranty | 3-Year Warranty |
| Dimensions | 244 mm x 188.7 mm |
Product Description
I220GC with Intel Celeron 200 Series and 945GC chipset onboard supports Serial ATA interface, high performance integrated graphics engine. With dual-channel DDR2 architecture and HD audio codec, what you need are just the memory, chassis, monitor, harddisk, keyboard and mouse to build up a PC system to enjoy Internet safari, BT download, high definition video and audio playback. I220GC is the most affordable all in one solution platform for our entry level customers. Intel® Celeron 200 Series Intel latest high efficiency desktop CPU by TDP low to 19w. With Conroe-L core, this cpu could support Intel 64bit and Execute Disable Bit technology. High performance with extremely low power consumption you can count on. Intel® 945GC Chipset The Intel 945GC graphics memory controller hub(GMCH) and the ICH7 I/O controller hub provide the vital interfaces for the motherboard. The GMCH features the Intel Graphics Media Accelerator 950, an integrated graphics engine for enhanced 3D, 2D, and video capabilities. The GMCH provides the interface for processor in the 775-land package, dual channel DDR2 at speeds of up to 667MHz. Intel Graphics Media Accelerator 950 Dual-channel DDR2 technology doubles the bandwidth of your system memory and hence boost the system performance to out perform any memory existing solutions in the market. Dual channel DDR2 Dual-channel DDR2 technology doubles the bandwidth of your system memory and hence boost the system performance to out perform any memory existing solutions in the market. Serial ATA 3Gb/s This motherboard supports next-generation SATA hard drives based on the new SATA 3Gb/s storage specification. High Definition Audio Enjoy high-quality sound system on your PC! The onboard 6-channel HD audio (High Definition Audio, previously codenamed Azalia) CODEC enables high-quality audio output, jack-detect feature automatically. ASUS EZ Flash 2 EZ Flash 2 is a user-friendly BIOS update utility. Simply launch this tool and update BIOS from a USB flash disk before entering the OS. You can update your BIOS only in a few clicks without preparing an additional floppy diskette or using an OS-based flash utility. ASUS CrashFree BIOS3 The ASUS CrashFree BIOS 3 allows users to restore corrupted BIOS data from a USB flash disk containing the BIOS file. This utility saves users the cost and hassle of buying a replacement BIOS chip. Max. 8 USB 2.0 ports USB 2.0 is the latest connectivity standard for next generation components and peripherals. Backwards compatible with current USB 1.1 peripherals, USB 2.0 delivers transfer speeds up to 40 times faster at 480Mb/s, for easy connectivity and ultra-fast data. ASUS MyLogo 2 Turn your favorite photos into 256-color boot logos to personalize your system. GreenASUS The motherboard and its packaging comply with the European Union´s Restriction on the use of Hazardous Substances (RoHS). This is in line with the ASUS vision of creating environment-friendly and recyclable products and packaging to safeguard consumers.
Key Features
ASUS I220GC. Processor manufacturer: Intel, Processor socket: LGA 775 (Socket T). Maximum internal memory: 4 GB, ECC сompatibility: Non-ECC. Maximum graphics card memory: 224 MB. Motherboard form factor: micro ATX, Audio output channels: 5.1 channels, Audio chip: Realtek ALC662. BIOS memory size: 64 Mbit
