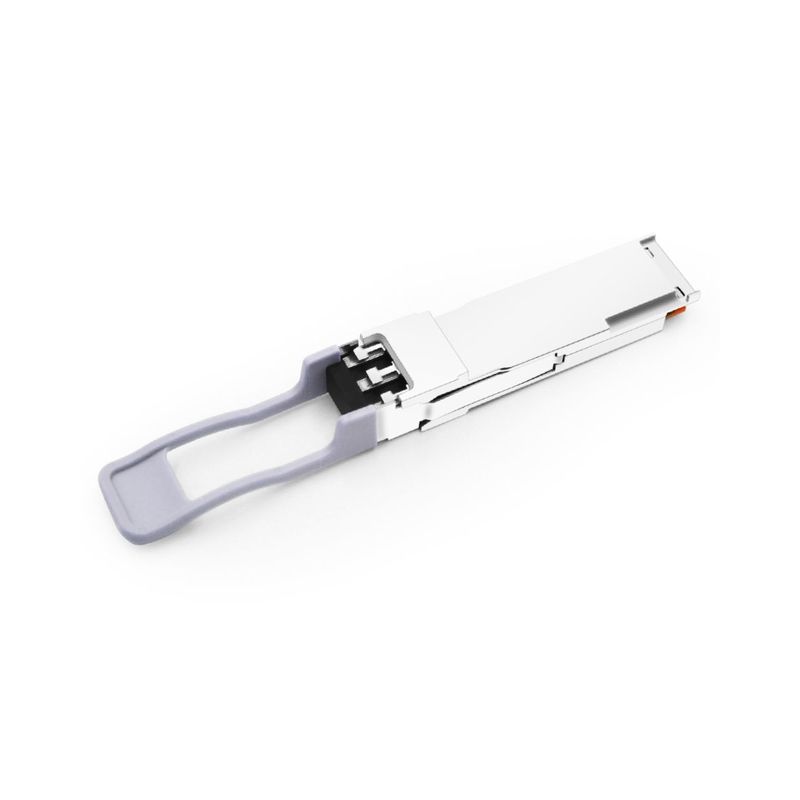

QSFP-40G-SR-BD, Huawei QSFP-40G Series Transceiver, 40G BiDi, Short-reach, Optical
SKU: HW:QSFP-40G-SR-BD · MPN: HW:QSFP-40G-SR-BD · Category: Networking
QSFP40G BiDi Short-reach Transceiver
Specifications
| MTBF | ≈2,000,000 Hours |
|---|---|
| Type | QSFP+ Transceiver |
| Distance | Up to 100m (OM3), 150m (OM4) |
| Warranty | 1 Year |
| Data Rate | 40 Gbps |
| Compliance | SFF-8436, IEEE 802.3ba, ROHS |
| Fiber Type | Multimode Fiber (MMF) |
| Wavelength | 832 nm / 918 nm |
| Form Factor | QSFP+ (Quad Small Form-Factor Pluggable Plus) |
| Product Type | QSFP+ Transceiver |
| Hot Swappable | Yes |
| Bit Error Rate | <1x10⁻¹² |
| Connector Type | LC |
| Voltage Supply | 3.3 V |
| Product Category | Transceivers |
| Modulation Format | N/A |
| Power Consumption | 3.5 W Maximum |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Operating Temperature | 0°C to 70°C (32°F to 158°F) |
| Applicable Network Types | Data Centers, High-Performance Computing (HPC) Networks |
| Digital Diagnostic Monitoring (DDM) | Supported |
| Warranty | 3-Year Warranty |
Key Features
- OEM Genuine Component verified by certified technicians.
- Clean serial number ready for service contract registration.
- Electrostatic Discharge (ESD) safe packaging.
- Supports hot-swapping for zero-downtime maintenance.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this QSFP-40G-SR-BD, Huawei QSFP-40G Series Transceiver, 40G BiDi, Short-reach, Optical (HW:QSFP-40G-SR-BD) is 100% genuine OEM hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This QSFP-40G-SR-BD, Huawei QSFP-40G Series Transceiver, 40G BiDi, Short-reach, Optical includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the QSFP-40G-SR-BD, Huawei QSFP-40G Series Transceiver, 40G BiDi, Short-reach, Optical compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the HW:QSFP-40G-SR-BD.
