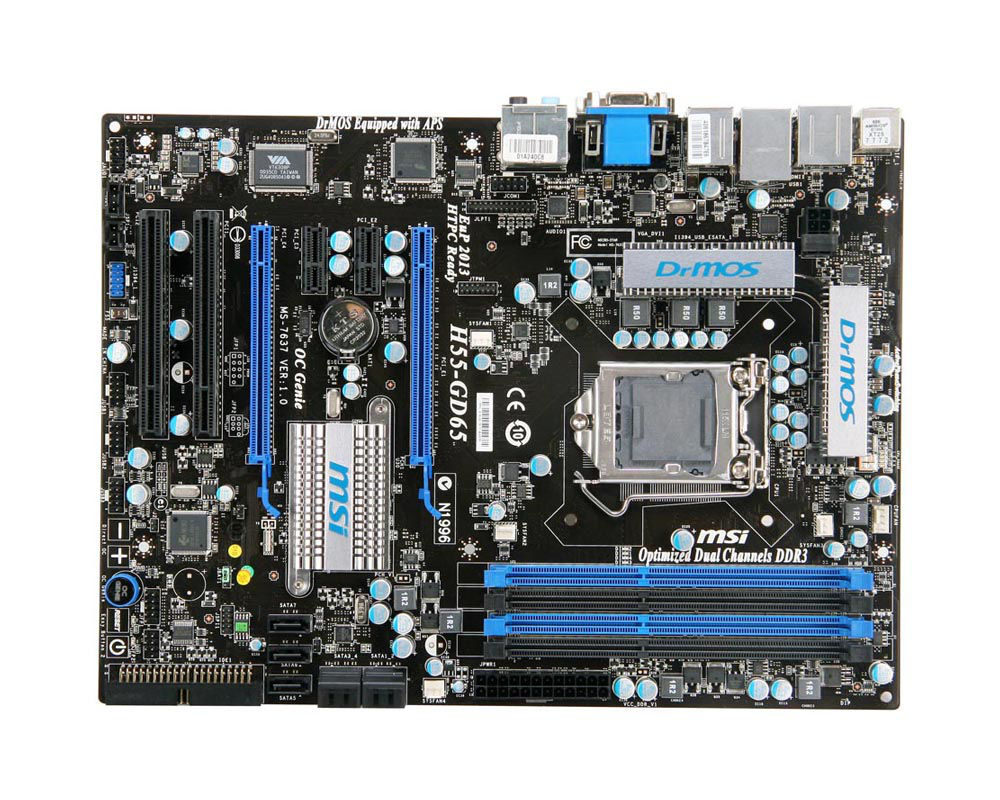

MSI H55-GD65-WIFI motherboard LGA 1156 (Socket H) ATX
Brand: MSI · SKU: H55-GD65-WIFI · MPN: H55-GD65-WIFI · Category: Components
MSI H55-GD65-WIFI, LGA 1156 (Socket H), 16 GB, 1.5 V, 1066,1333,1600 MHz, Realtek RTL8111D(L), Gigabit Ethernet
Specifications
| Depth | 305 mm |
|---|---|
| Width | 255 mm |
| PCI slots | 2 |
| Audio chip | Realtek ALC889 |
| TPM connector | Yes |
| LAN controller | Realtek RTL8111D(L) |
| Memory voltage | 1.5 V |
| CD/AUX audio in | Yes |
| Drivers included | Yes |
| Processor socket | LGA 1156 (Socket H) |
| Special features | Wi-Fi |
| CPU fan connector | Yes |
| Headphone outputs | 6 |
| Power source type | ATX |
| USB 2.0 connectors | 3 |
| HDMI ports quantity | 1 |
| Networking features | Gigabit Ethernet |
| PS/2 ports quantity | 1 |
| Power fan connector | Yes |
| DVI-D ports quantity | 1 |
| PCI Express x1 slots | 2 |
| S/PDIF out connector | Yes |
| eSATA ports quantity | 1 |
| Audio output channels | 7.1 channels |
| Warranty | 3-Year Warranty |
| Dimensions | 255 mm x 305 mm |
Product Description
Intel® H55 chipset based - OC Genie's 1 second overclocking; - Support Intel Core i3/i5/i7 processors; - IGP Supports DirectX 10, Shader Model 4.0 and OpenGL 2; - Lossless Audio support and HDMI output; - DrMOS provides ultra-high power efficiency; - SuperPipe heat dissipater; - Full I/O ports including eSATA. Push to overclock in 1 second MSI’s original invention, a fully automatic, smart overclocking chip. It will automatically detect the optimal settings for your individual system Advantages 1. Overclock in 1 second to improve CPU, memory and 3D performance 2. Up to 45% iGPU performance boost in 3DMark 1 Phase DrMOS > 4 Phase Traditional MOSFET 3-in-1 server class power component, 400% faster than traditional MOSFET Offers excellent energy-saving capability and high-computing performance. Advantages 1. High Efficiency: Up to 96% 2. Efficiency Increase: +38.3% 3. Lower Power Loss: -4.01W (64% Max Saving) APS is Active Phase Switching, that is complete function to Control Power Demand With Switcing Dynamically, it’s for CPU, Memory and Chipset PWM. Benefits: Saving Power under Variable Loading. Power Usage More Efficiency.
Key Features
MSI H55-GD65-WIFI. Processor socket: LGA 1156 (Socket H). Maximum internal memory: 16 GB, Memory voltage: 1.5 V, Supported memory clock speeds: 1066,1333,1600 MHz. LAN controller: Realtek RTL8111D(L), Networking features: Gigabit Ethernet. Motherboard form factor: ATX, Audio output channels: 7.1 channels, Audio chip: Realtek ALC889. Width: 255 mm, Depth: 305 mm
Frequently Asked Questions
Is this product genuine OEM?
Yes, this MSI H55-GD65-WIFI motherboard LGA 1156 (Socket H) ATX (H55-GD65-WIFI) is 100% genuine MSI hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This MSI H55-GD65-WIFI motherboard LGA 1156 (Socket H) ATX includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the MSI H55-GD65-WIFI motherboard LGA 1156 (Socket H) ATX compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the H55-GD65-WIFI.
