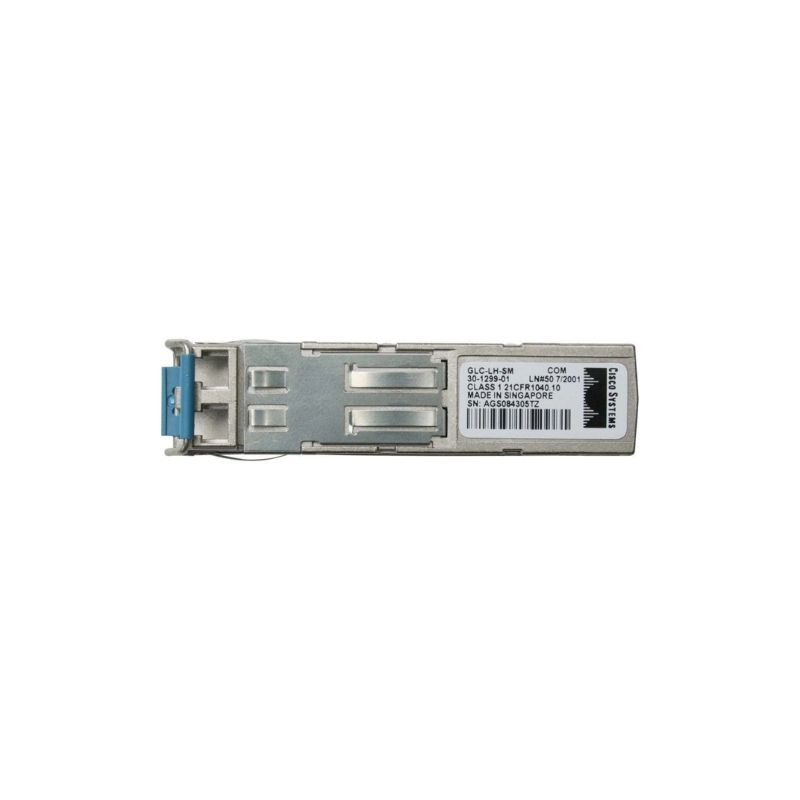

Cisco 1000BASE-LX/LH SFP Transceiver Module
Brand: Cisco · SKU: GLC-LH-SM · MPN: GLC-LH-SM · Category: Networking
The GLC-LH-SM is a high-performance, reliable SFP module designed for seamless integration in enterprise networking solutions. It is a 1000BASE-LX/LH SFP for both Multimode (MMF) and Single-Mode Fibers (SMF). It operates on standard single-mode fiber-optic link spans of up to 10 km and up to 550 m on any multimode fibers (62.5um or 50um core size). The module is compatible with the IEEE 802.3z 1000BASE-LX standard for Gigabit Ethernet networks. It features a wavelength of 1310nm, a maximum data transfer rate of 1.25 Gbps, and is hot-swappable. It typically uses a Dual LC connector and has a low power consumption of less than 1 Watt. Digital Diagnostics Monitoring (DDM) is generally not supported for the genuine Cisco part, although compatible versions may offer it.
Specifications
| Data Rate | 1.25 Gbps (1000BASE-LX/LH) |
|---|---|
| Fiber Type | Single-Mode (SMF) and Multi-Mode (MMF) |
| Wavelength | 1310 nm |
| DDM Support | No (for genuine Cisco) |
| Form Factor | SFP (Small Form-factor Pluggable) |
| Connector Type | LC Duplex |
| Power Consumption | < 1W |
| Max Distance (MMF) | 550 m (over 62.5/50 µm fiber) |
| Max Distance (SMF) | 10 km |
| Operating Temperature | 0°C to 70°C (Commercial) |
| Warranty | Varies by seller; genuine Cisco warranty or Lifetime warranty for compatible versions. |
| Weight | 20 g (approximate for compatible version) |
| Dimensions | 0.5 in (W) x 2.4 in (L) x 0.4 in (H) (approximate for compatible version) |
Key Features
The Cisco GLC-LH-SM is a Gigabit Ethernet SFP transceiver supporting both single-mode fiber (up to 10km) and multimode fiber (up to 550m) links. It utilizes a 1310nm wavelength and is compliant with the 1000BASE-LX standard. It is a hot-pluggable module designed for high port density applications in data centers, enterprise closets, and service provider networks.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this Cisco 1000BASE-LX/LH SFP Transceiver Module (GLC-LH-SM) is 100% genuine Cisco hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This Cisco 1000BASE-LX/LH SFP Transceiver Module includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the Cisco 1000BASE-LX/LH SFP Transceiver Module compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the GLC-LH-SM.
