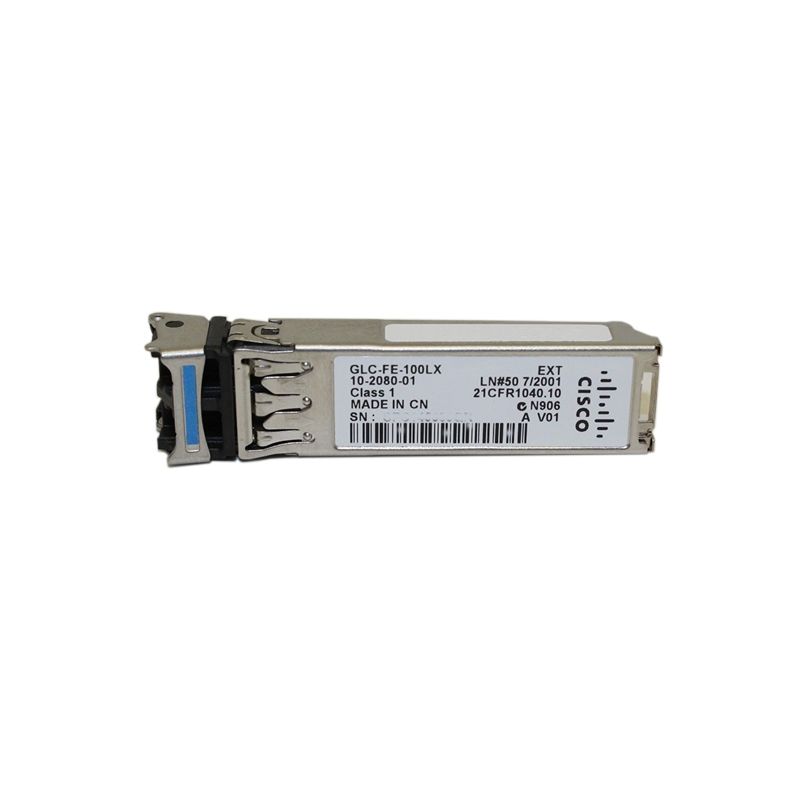

Cisco 100BASE-LX SFP Transceiver Module
Brand: Cisco (or Compatible) · SKU: GLC-FE-100LX · MPN: GLC-FE-100LX · Category: Networking
The Cisco GLC-FE-100LX is a 100BASE-LX SFP transceiver module that operates on ordinary single-mode fiber-optic (SMF) link spans up to 10 kilometers long. It provides 100Base-LX throughput up to 10km over single-mode fiber (SMF) using a wavelength of 1310nm via an LC duplex connector. This module is hot-swappable, supports Digital Optical Monitoring (DOM), and is compliant with industry standards like IEEE 802.3 and IEEE 802.3u. It is designed for use in Fast Ethernet or dual-rate Fast/Gigabit Ethernet ports of Cisco switches and routers, enabling cost-effective solutions in data center and campus network applications. Compatible versions often offer a commercial operating temperature range of 0 to 70°C.
Specifications
| Standard | 100BASE-LX |
|---|---|
| Connector | LC Duplex |
| Data Rate | 100 Mbps Fast Ethernet |
| Fiber Type | Single-Mode Fiber (SMF) |
| Wavelength | 1310 nm |
| Form Factor | SFP (mini-GBIC) |
| DDM/DOM Support | Yes |
| Maximum Distance | 10 km |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, MSA |
| Operating Temperature Range | 0°C to 70°C (Commercial) |
| Warranty | Limited Lifetime (for compatible units) |
| Weight | 0.03 kg (for a compatible unit) |
| Dimensions | 8.5 x 13.4 x 56.5 mm (Typical SFP dimensions) |
Key Features
The GLC-FE-100LX is a plug-in SFP module supporting 100BASE-LX Fast Ethernet over single-mode fiber for distances up to 10 km, utilizing a 1310 nm wavelength and an LC duplex connector. It is hot-swappable and commonly supports DOM features.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this Cisco 100BASE-LX SFP Transceiver Module (GLC-FE-100LX) is 100% genuine Cisco (or Compatible) hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This Cisco 100BASE-LX SFP Transceiver Module includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the Cisco 100BASE-LX SFP Transceiver Module compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the GLC-FE-100LX.
