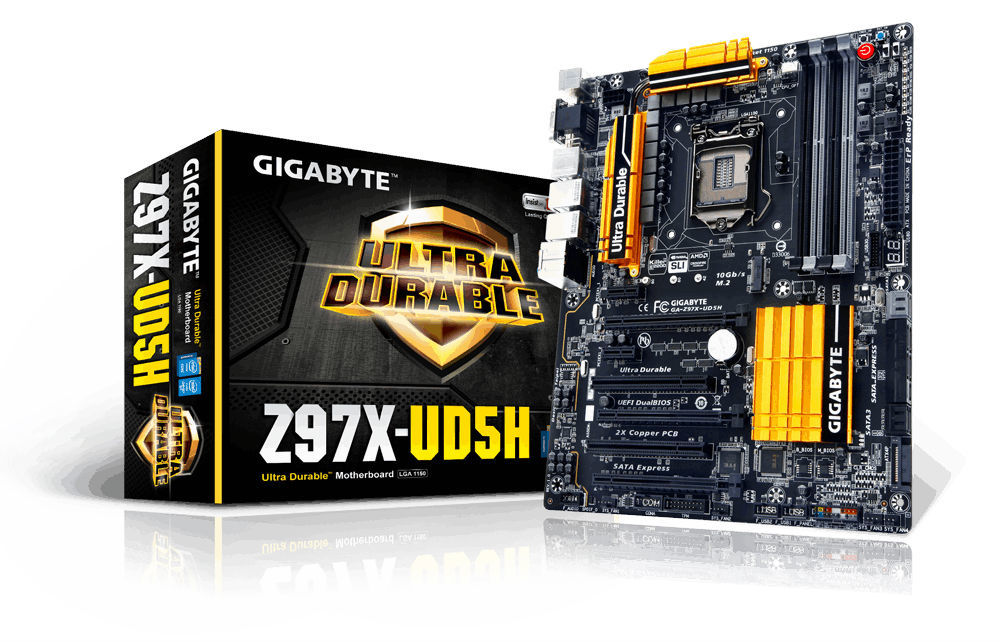

GIGABYTE GA-Z97X-UD5H motherboard Intel® Z97 LGA 1150 (Socket H3) ATX
Brand: Gigabyte · SKU: GA-Z97X-UD5H · MPN: GA-Z97X-UD5H · Category: Components
GIGABYTE GA-Z97X-UD5H, Intel, LGA 1150 (Socket H3), Intel® Celeron®, Intel® Pentium®, DDR3-SDRAM, 32 GB, DIMM. GIGABYTE GA-Z97X-UD5H motherboard Intel® Z97 LGA 1150 (Socket H3) ATX (part number GA-Z97X-UD5H) is an enterprise components product available from Server Tech Central. Key specifications include depth 244 mm, width 305 mm, bios type UEFI AMI, bluetooth No, pci slots 2, audio chip Realtek ALC1150, raid levels 0, 1, 5, 10, acpi version 5.0. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 244 mm |
|---|---|
| Width | 305 mm |
| BIOS type | UEFI AMI |
| Bluetooth | No |
| PCI slots | 2 |
| Audio chip | Realtek ALC1150 |
| RAID levels | 0, 1, 5, 10 |
| ACPI version | 5.0 |
| Ethernet LAN | Yes |
| Component for | PC |
| Microphone in | Yes |
| TPM connector | Yes |
| Memory channels | Dual-channel |
| S/PDIF out port | Yes |
| BIOS memory size | 128 Mbit |
| Bundled software | Norton Internet Security (OEM version) Intel Rapid Start Technology Intel Smart Connect Technology Intel Smart Response Technology |
| Processor socket | LGA 1150 (Socket H3) |
| CPU fan connector | Yes |
| Clear CMOS button | Yes |
| Clear CMOS jumper | Yes |
| Headphone outputs | 5 |
| Memory slots type | DIMM |
| Power source type | ATX |
| BIOS switch button | Yes |
| Warranty | 3-Year Warranty |
| Dimensions | 305 mm x 244 mm |
Product Description
GIGABYTE 9 Series Motherboards GIGABYTE 9 Series motherboards support the latest 4th & 5th Generation Intel® Core™ processors, bringing together a unique blend of features and technologies that offer the absolute ultimate platform for your next PC build. Extreme Multi-GPU Support Flexible graphics capabilities supported for either 3-Way CrossFire™ or 2-Way SLI™ action, delivering the ultimate in graphics performance for gaming enthusiasts who demand the highest frame rates without compromising on resolution. M.2 Onboard Connector GIGABYTE 9 series motherboards come equipped with an onboard M.2 slot, providing users PCI-Express connectivity for SSD devices. Delivering up to 10 Gb/s data transfer speeds, M.2 offers users considerably faster storage performance than current mSATA and even SATA Revision 3 (6Gb/s) storage devices. SATA Express Connector SATA Express interface provides multiple PCI Express lanes and 2 SATA 3.0 6 Gb/s ports, exposed through the same connector, allowing use of both PCI Express and SATA storage devices. Exposed PCI Express lanes are providing a pure PCI Express connection to the storage device, without any additional layers of abstraction. Intel® Gigabit LAN Intel® Gigabit LAN networking, a popular choice with gamers that features several performance-enhancing features such as advanced interrupt handling to help reduce CPU overhead and Jumbo Frame support for extra large data packets. Killer Networking NO LAG, JUST FRAG! Select GIGABYTE 9 series motherboards feature the Killer™ E2200 from Qualcomm Atheros, a high-performance, adaptive gigabit Ethernet controller that offers better online gaming and online media performance compared to standard solutions. The Killer™ E2200 features Advanced Stream Detect technology, which identifies and prioritizes all network traffic to ensure important applications that require high-speed connectivity are prioritized over less important traffic. Realtek ALC1150 115dB SNR HD Audio The ALC1150 is a high-performance multi-channel High Definition Audio Codec that delivers an exceptional audio listening experience with up to 115dB SNR, ensuring users get the best possible audio quality from their PC. The ALC1150 provides ten DAC channels that simultaneously support 7.1-channel sound playback, plus 2 channels of independent stereo sound output (multiple streaming) through the front panel stereo outputs. Two stereo ADCs are integrated and can support a microphone array with Acoustic Echo Cancellation (AEC), Beam Forming (BF), and Noise Suppression (NS) technologies. The ALC1150 incorporates Realtek proprietary converter technology to achieve Front differential output 115dB Signal-to-Noise ratio (SNR) playback (DAC) quality and 104dB SNR recording (ADC) quality. Built-in Rear Audio Amplifier Specially designed for gamers, GIGABYTE 9 series Ultra Durable™ motherboards utilize a high-capacity amplifier which is able to drive 600Ω loads, giving gamers a fuller range of dynamic sound with crisper details and less distortion when using high quality professional headphones. APP Center GIGABYTE APP Center gives you easy access to wealth of GIGABYTE apps that help you get the most from your GIGABYTE motherboard. Using a simple, unified user interface, GIGABYTE APP Center allows you to launch all GIGABYTE apps installed on your system. EasyTune™ - Smart Quick Boost provides users with different levels of CPU frequencies to choose to achieve desired system performance. - Advanced CPU OC allows users to set CPU base clock, frequency, and voltages, and integrated graphics frequency. - Advanced DDR OC allows users to set the memory clock. - 3D Power allows users to change power phase, voltage, and frequency settings. Cloud Station™ - GIGABYTE Cloud Station™ is composed of several GIGABYTE unique apps that allow your smart phones/tablet devices to communicate, share resources, and control desktop PCs via wireless connection. - HomeCloud HomeCloud allows users to share the files between your smart phone/tablet device and computer or back up the files from the device to the computer. - HotSpot HotSpot turns your computer into a virtual wireless access point and allows you to share your connection with your other wireless devices. - GIGABYTE Remote GIGABYTE Remote allows users to remotely control the mouse / keyboard / Windows Media Player on your computer from your smart phone/tablet device. - Remote OC Remote OC allows users to remotely control their desktop PC with a powerful suite of software functions that Include overclocking and system tweaking, system monitoring plus the ability to also remotely power down/reset the PC when needed. - Auto Green Auto Green is an easy-to-use tool that provides users with simple options to enable system power savings via a Bluetooth-enabled smart phone/tablet devices. When the device is out of the range of the computer's Bluetooth receiver, the system will enter the specified power saving mode. 10K Durable Black™ Soild Caps GIGABYTE 9
Key Features
GIGABYTE GA-Z97X-UD5H. Processor manufacturer: Intel, Processor socket: LGA 1150 (Socket H3), Compatible processor series: Intel® Celeron®, Intel® Pentium®. Supported memory types: DDR3-SDRAM, Maximum internal memory: 32 GB, Memory slots type: DIMM. Supported storage drive interfaces: SATA, RAID levels: 0, 1, 5, 10. Parallel processing technology support: 2-Way CrossFireX, 2-Way SLI, 3-Way CrossFireX, Maximum graphics card memory: 1000 MB, Maximum resolution: 4096 x 2160 pixels. Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: Intel
Frequently Asked Questions
Is this product genuine OEM?
Yes, this GIGABYTE GA-Z97X-UD5H motherboard Intel® Z97 LGA 1150 (Socket H3) ATX (GA-Z97X-UD5H) is 100% genuine Gigabyte hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This GIGABYTE GA-Z97X-UD5H motherboard Intel® Z97 LGA 1150 (Socket H3) ATX includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the GIGABYTE GA-Z97X-UD5H motherboard Intel® Z97 LGA 1150 (Socket H3) ATX compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the GA-Z97X-UD5H.
