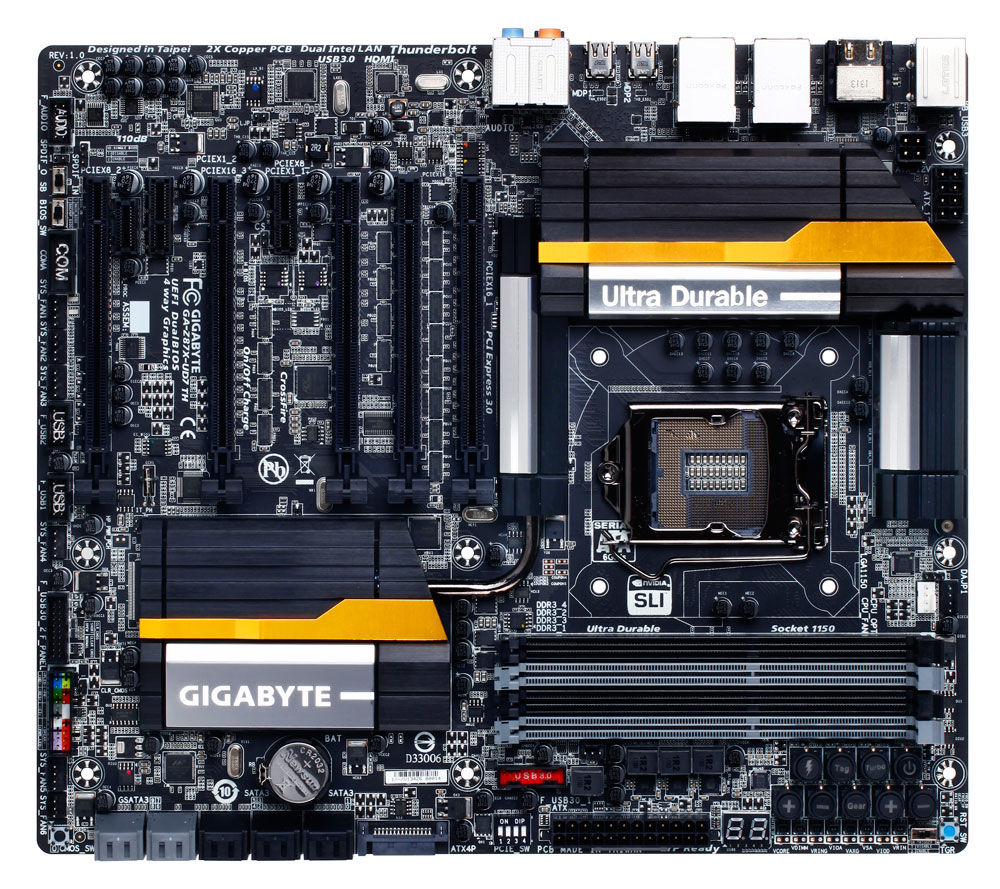

GIGABYTE GA-Z87X-UD7 TH motherboard Intel® Z87 LGA 1150 (Socket H3) Extended ATX
Brand: GIGABYTE · SKU: GA-Z87X-UD7 TH · MPN: GA-Z87X-UD7 TH · Category: Components
GIGABYTE GA-Z87X-UD7 TH, Intel, LGA 1150 (Socket H3), Intel® Celeron®, Intel® Pentium®, i3-4xxx, i5-4xxx, i7-4xxx, DDR3-SDRAM, 32 GB. GIGABYTE GA-Z87X-UD7 TH motherboard Intel® Z87 LGA 1150 (Socket H3) Extended ATX (part number GA-Z87X-UD7 TH) is an enterprise components product available from Server Tech Central. Key specifications include depth 264 mm, wi-fi Yes, width 305 mm, bios type EFI AMI, bluetooth Yes, audio chip Realtek ALC898, raid levels 0, 1, 5, 10, acpi version 2.0a. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 264 mm |
|---|---|
| Wi-Fi | Yes |
| Width | 305 mm |
| BIOS type | EFI AMI |
| Bluetooth | Yes |
| Audio chip | Realtek ALC898 |
| RAID levels | 0, 1, 5, 10 |
| ACPI version | 2.0a |
| Cooling type | Passive |
| Ethernet LAN | Yes |
| HDMI version | 1.4a |
| Component for | PC |
| Microphone in | Yes |
| Memory voltage | 1.5 V |
| Memory channels | Dual-channel |
| S/PDIF out port | Yes |
| Wi-Fi standards | 802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| BIOS memory size | 64 Mbit |
| Processor socket | LGA 1150 (Socket H3) |
| Bluetooth version | 4.0 |
| CPU fan connector | Yes |
| Clear CMOS button | Yes |
| Clear CMOS jumper | Yes |
| Headphone outputs | 1 |
| Warranty | 3-Year Warranty |
| Dimensions | 305 mm x 264 mm |
Product Description
- Supports 4th Generation Intel® Core™ processors - GIGABYTE Ultra Durable™ 5 Plus Technology - Dual Thunderbolt™ technology support - Wi-Fi IEEE802.11ac and Bluetooth 4.0 Card - IR® Digital CPU Power Design - Unique OC Touch Feature - Unique OC Ignition Feature - 15µ gold plated CPU socket - 4-way Graphics Support - Durable black solid capacitors - GIGABYTE On/Off Charge™ 2 for USB devices - Dual Intel® LAN with teaming technology - New Heatsink design with 9 onboard fan connectors - Realtek ALC898 with High Quality 110dB SNR HD audio - Sound Blaster X-Fi MB3 software suite - GIGABYTE UEFI DualBIOS™ - Supports CFOS Speed Internet Accelerator Software - 10 USB 3.0 ports Dual Thunderbolt™ 2 – The Fastest Connection to Your PC Just Got Faster The new Dual Thunderbolt™ 2 controller from Intel®, builds on the success of previous revisions, adding channel bandwidth aggregation to facilitate single channel transfer speeds of up 20GB/s, compared to a max of 10GB/s on previous designs. This allows for incredible data transfer speeds when using high performance storage devices, while also supporting daisy-chaining of up 12 devices and triple digital display support. OC Ignition (Patent Pending) There are occasions as an overclocker when you want to shut down the system without turning off the power to other parts of the system, for example the drives and system fans. This is where OC Ignition is really useful. Hitting the OC Ignition button gives continuous, uninterrupted power to all the motherboard's connected drives and system fans, but not to the CPU. This is useful in 'cold bug' situations when you need to heat the CPU to a bootable temperature, but you'd prefer the fans to keep spinning, reducing moisture build-up. Overclockers using i-ram drives may also want to maintain SATA power and not risk losing their customized OS install while users with regular SSDs or HDDs also know that frequent powering on and off is harmful to your drives in the long-term. OC Ignition is also useful in allowing users to pre-test water cooling setups, and even allows case mod demos to be developed without having to fully turn on the PC. OC Ignition: Feature Summary - Powers fans and drives without booting or powering the CPU - Active fans help to reduce moisture build-up when using LN2 - Maintain continuous uninterrupted power to drives - Safely powers water cooling systems for safe leak checking - Test demo and case mod systems without needing to boot the system OC Touch GIGABYTE OC Touch includes a range of easy to use buttons and switches featured exclusively on GIGABYTE OC motherboards. OC PCIe Switch Overclockers can manually turn on or off each installed PCIe lane of the motherboard allowing users to effortlessly remove graphic cards from the system without the hassle of physically removal. This is especially convenient for VGA overclocking on LN2 and water cooled systems. OC PEG OC Peg adds auxiliary power to the PCIe slots of your motherboard, improving system stability in extreme configurations. This is especially useful in power-hungry 4-way graphics configurations. Built-in Gaming Audio/Headphone Amplifier (Front Headphone / Rear line out) GIGABYTE 8 Series motherboards feature a high capacity headphone amplifier which is able to drive 600Ω loads, allowing gamers to enjoy a fuller range of dynamic sound with crisper details and less distortion when using high quality professional headphones. Featuring a wide bandwidth, low noise, high slew rate and low distortion, GIGABYE 8 series motherboards are ideal for professional audio usage and gaming enthusiasts. Wi-Fi / Bluetooth 4.0 PCIe Expansion Card This motherboard comes with an exclusive IEEE802.11ac WiFi card that supports up to 867Mbps wireless networks and Bluetooth 4.0. IEEE802.11ac WiFi runs at up to 867Mbit/s and the bundled 2.4GHz/5GHz dual-band, 2T2R antenna gives you wide coverage. HyperDuo Technology-Automated SSD/HDD Tiering Greater Performance, Cost-efficient Equipped with Marvell SE9230 controller, the motherboard supports HyperDuo Technology. While the SSD and HDD are connected, HyperDuo makes the SSD become the cache of the HDD and delivers SSD-like performance. GIGABYTE Ultra Durable™ 5 Plus GIGABYTE Ultra Durable™ 5 Plus debuts on GIGABYTE 8 Series motherboards, with a range of features and component choices that provide record-breaking performance, cool and efficient operation and extended motherboard lifespan. Ultra Cool All New Heat Sink Design GIGABYTE motherboards feature new heatsink designs that offer uncompromisingly efficient cooling on key areas of the motherboard including the PWM area and chipset (PCH). GIGABYTE 8 Series motherboards offer both passive, active and water cooling support of the crucial PWM area so even the most aggressive and extreme configurations will be kept well within optimal thermal parameters. Ultra Performance IR® Digital CPU Power Design GIGABYTE motherboards use industry-leading PWM controllers and PowIRstage™ ICs and
Key Features
GIGABYTE GA-Z87X-UD7 TH. Processor manufacturer: Intel, Processor socket: LGA 1150 (Socket H3), Compatible processor series: Intel® Celeron®, Intel® Pentium®. Supported memory types: DDR3-SDRAM, Maximum internal memory: 32 GB, Memory slots type: DIMM. Supported storage drive interfaces: SATA III, RAID levels: 0, 1, 5, 10. Parallel processing technology support: 2-Way CrossFireX, 2-Way SLI, 3-Way CrossFireX, 3-Way SLI, 4-Way CrossFireX, 4-Way SLI, Maximum graphics card memory: 1024 MB, Graphics card family: Intel. HDMI version: 1.4a
Frequently Asked Questions
Is this product genuine OEM?
Yes, this GIGABYTE GA-Z87X-UD7 TH motherboard Intel® Z87 LGA 1150 (Socket H3) Extended ATX (GA-Z87X-UD7 TH) is 100% genuine GIGABYTE hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This GIGABYTE GA-Z87X-UD7 TH motherboard Intel® Z87 LGA 1150 (Socket H3) Extended ATX includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the GIGABYTE GA-Z87X-UD7 TH motherboard Intel® Z87 LGA 1150 (Socket H3) Extended ATX compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the GA-Z87X-UD7 TH.
