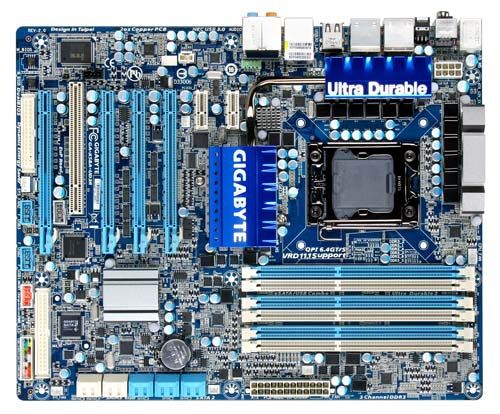

GIGABYTE GA-X58A-UD3R (rev. 2.0) Intel® X58 Socket B (LGA 1366) ATX
Brand: GIGABYTE · SKU: GA-X58A-UD3R (REV. 2.0) · MPN: GA-X58A-UD3R (REV. 2.0) · Category: Components
GIGABYTE GA-X58A-UD3R (rev. 2.0), Intel, Socket B (LGA 1366), Intel® Core™ i7, DDR3-SDRAM, 24 GB, Triple-channel. GIGABYTE GA-X58A-UD3R (rev. 2.0) Intel® X58 Socket B (LGA 1366) ATX (part number GA-X58A-UD3R (REV. 2.0)) is an enterprise components product available from Server Tech Central. Key specifications include depth 244 mm, width 305 mm, bios type AWARD, pci slots 1, raid levels 0, 1, 5, 10, acpi version 1.0b, component for PC, microphone in Yes. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 244 mm |
|---|---|
| Width | 305 mm |
| BIOS type | AWARD |
| PCI slots | 1 |
| RAID levels | 0, 1, 5, 10 |
| ACPI version | 1.0b |
| Component for | PC |
| Microphone in | Yes |
| LAN controller | Realtek RTL8111E |
| Memory voltage | 1.5 V |
| CD/AUX audio in | Yes |
| Controller type | iTE IT8720 |
| Memory channels | Triple-channel |
| S/PDIF out port | Yes |
| Bundled software | Norton Internet Security |
| Processor socket | Socket B (LGA 1366) |
| CPU fan connector | Yes |
| Headphone outputs | 2 |
| Power source type | ATX |
| ECC сompatibility | Non-ECC |
| USB 2.0 connectors | 2 |
| Motherboard chipset | Intel® X58 |
| Networking features | Gigabit Ethernet |
| PS/2 ports quantity | 2 |
| Warranty | 3-Year Warranty |
| Dimensions | 305 mm x 244 mm |
Product Description
Get Ready to Unleash the Power of 32nm 6 Core CPUs GIGABYTE's entire line of X58-based motherboards are ready to support the new generation of Intel 32nm 6-core processors, delivering the very best platform for multitasking, multimedia and high performance gaming. Introduction Based on the Intel® X58 chipset, the GIGABYTE GA-X58A-UD3R delivers all the killer next generation features that gaming enthusiasts and power users have been waiting for including GIGABYTE's 333 Onboard Acceleration features with support for USB 3.0, Serial-ATA Revision 3.0 (6Gbps) and a 3x USB Power Boost, as well as multi-GPU support for NVIDIA 3-Way SLI™ and ATI CrossFireX™ and support for Intel's high performance processors offering a high level of future CPU headroom for users wanting to maintain cutting-edge levels of performance. With the memory controller integrated directly into the processor die, the GIGABYTE GA-X58A-UD3R also supports triple channel DDR3 memory for blazing fast memory performance. Intel® Core™ i7 Processor and X58 Chipset support The GA-X58A-UD3R was designed specifically to take advantage of the raw power of the next generation Intel® Core™ i7 processors and the Intel® X58 Express chipset, whose new evolution in computing architecture is able to deliver an amazing performance break through from past processor generations. Replacing the Front Side Bus is the new Quick Path Interconnect, or QPI, whose 25.6 GB/sec transfer rates (double the bandwidth of the 1600MHz FSB) eliminates the communication bottleneck between the processor and chipset. On/Off Charge Technology GIGABYTE On/Off Charge technology allows you to charge your iPhone, iPad and iPod Touch regardless of whether your PC is on, in standby mode or even off. A derivative of GIGABYTE's highly acclaimed 3x USB Power feature, On/Off Charge enables devices to draw more current from GIGABYTE motherboard USB ports than standard USB ports allow, so that charging from your PC can be as fast as with a charger. On/Off Charge USB port Charges iPad, iPhone and iPod Touch while PC Hibernates or even when shut down (off). GIGABYTE GA-X58A-UD3R Obtains USB 3.0 Motherboard Certification Officially The GIGABYTE motherboards support the latest generation SuperSpeed USB 3.0 technology made possible through an onboard NEC uPD720200 host controller. With superfast transfer rates of up to 5 Gbps, users are able to experience an almost a 10x improvement over USB 2.0. Additionally, backwards compatibility with USB 2.0 assures users of long term use of their legacy USB 2.0 devices. The onboard NEC SuperSpeed USB 3.0 technology also provides new power management features that include increased maximum bus power and device current draw to better accommodate power-hungry devices. SATA 6 Gbps Support Yet another onboard feature of GIGABYTE motherboards are Marvell's SE9128 chips for high-speed SATA Revision 3.0 compatibility, delivering superfast 6Gbps link speeds for twice the data transfer rates of SATA Revision 2.0 (3 Gbps). When used in RAID 0 (Stripe) mode, GIGABYTE motherboards offer even faster data transfer rates of up to 4x the speed of current SATA interfaces. 3x USB Power Boost GIGABYTE motherboards feature a 3x USB power boost, delivering greater compatibility and extra power for USB devices. GIGABYTE’s unique USB power design is also able to efficiently regulate output over the full voltage range, which greatly enhances USB device compatibility. In addition, dedicated lower resistance fuses ensure lower voltage drops, and provide more stable and plentiful power delivery. Qualified for Windows® 7 The motherboard qualified for WHQL (Windows Hardware Quality Labs) certification of Windows 7 from Microsoft®, setting the standard for future Windows 7 certified motherboards. Dynamic Energy Saver™ 2 GIGABYTE Dynamic Energy Saver™ 2 incorporates a host of intelligent features that, at the click of a button, utilize a proprietary hardware and software design to considerably enhance PC system energy efficiency, reduce power consumption and deliver optimized auto-phase-switching for the CPU, Memory, Chipset, VGA, HDD, and fans. Cloud OC GIGABYTE Cloud OC is a free overclocking application that facilitates PC overclocking through any web browsing capable device such as a smart phone, iPad, iPhone, Netbooks or notebook PC. Being browser based, it connects via wireless Internet, Bluetooth or through an Ethernet cable, and its many functions are categorized into three tabs: Tuner, System Info and Control. Hotkey OC GIGABYTE Hotkey OC allows users to create and save various profiles that can be adopted for different benchmarks. Hotkey OC then allows users to jump between these profiles on the fly so that the best profile for each segment within the benchmark can be used to optimize scores and boost overall performance. For example, when running 3DMark 06, the 1st profile might be optimized for graphics, and can be used for the first two graphics tests, then, the next two tests ca
Key Features
GIGABYTE GA-X58A-UD3R (rev. 2.0). Processor manufacturer: Intel, Processor socket: Socket B (LGA 1366), Compatible processor series: Intel® Core™ i7. Supported memory types: DDR3-SDRAM, Maximum internal memory: 24 GB, Memory channels: Triple-channel. Supported storage drive interfaces: SATA II, SATA III, RAID levels: 0, 1, 5, 10. Parallel processing technology support: 3-Way SLI. Ethernet interface type: Gigabit Ethernet, LAN controller: Realtek RTL8111E, Networking features: Gigabit Ethernet
