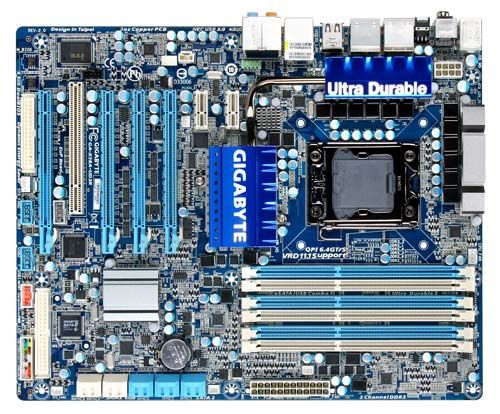

GIGABYTE GA-X58A-UD3R Socket B (LGA 1366) ATX
Brand: GIGABYTE · SKU: GA-X58A-UD3R · MPN: GA-X58A-UD3R · Category: Components
GIGABYTE GA-X58A-UD3R, Socket B (LGA 1366), Intel® Core™ i7, 1.5 V, Non-ECC, 800,1066,1333 MHz, ATX. GIGABYTE GA-X58A-UD3R Socket B (LGA 1366) ATX (part number GA-X58A-UD3R) is an enterprise components product available from Server Tech Central. Key specifications include depth 244 mm, width 305 mm, audio output Realtek ALC889, memory voltage 1.5 V, s/pdif in port Yes, cd/aux audio in Yes, s/pdif out port Yes, bios memory size 32 Mbit. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 244 mm |
|---|---|
| Width | 305 mm |
| Audio output | Realtek ALC889 |
| Memory voltage | 1.5 V |
| S/PDIF in port | Yes |
| CD/AUX audio in | Yes |
| S/PDIF out port | Yes |
| BIOS memory size | 32 Mbit |
| Bundled software | Norton Internet Security |
| Drivers included | Yes |
| Processor socket | Socket B (LGA 1366) |
| Special features | Support for @BIOS Support for Q-Flash Support for Xpress BIOS Rescue Support for Download Center Support for Xpress Install Support for Xpress Recovery2 Support for EasyTune (Note 6) Support for Easy Energy Saver Support for Smart Recovery Support for Auto Green Support for ON/OFF Charge Support for Q-Share |
| CPU fan connector | Yes |
| Power source type | ATX |
| ECC сompatibility | Non-ECC |
| USB 2.0 connectors | 2 |
| PS/2 ports quantity | 2 |
| Power fan connector | Yes |
| S/PDIF in connector | Yes |
| PCI Express x1 slots | 2 |
| S/PDIF out connector | Yes |
| Audio output channels | 7.1 channels |
| PCI Express x16 slots | 4 |
| Number of memory slots | 6 |
| Warranty | 3-Year Warranty |
| Dimensions | 305 mm x 244 mm |
Product Description
Get Ready to Unleash the Power of 32nm 6 Core CPUs GIGABYTE's entire line of X58-based motherboards are ready to support the new generation of Intel 32nm 6-core processors, delivering the very best platform for multitasking, multimedia and high performance gaming. Introduction Based on the Intel X58 chipset, the GIGABYTE GA-X58A-UD3R delivers all the killer next generation features that gaming enthusiasts and power users have been waiting for including GIGABYTE's 333 Onboard Acceleration features with support for USB 3.0, Serial-ATA Revision 3.0 (6Gbps) and a 3x USB Power Boost, as well as multi-GPU support for NVIDIA 3-Way SLI and ATI CrossFireX and support for Intel's high performance processors offering a high level of future CPU headroom for users wanting to maintain cutting-edge levels of performance. With the memory controller integrated directly into the processor die, the GIGABYTE GA-X58A-UD3R also supports triple channel DDR3 memory for blazing fast memory performance. Intel Core i7 Processor and X58 Chipset support The GA-X58A-UD3R was designed specifically to take advantage of the raw power of the next generation Intel Core i7 processors and the Intel X58 Express chipset, whose new evolution in computing architecture is able to deliver an amazing performance break through from past processor generations. Replacing the Front Side Bus is the new Quick Path Interconnect, or QPI, whose 25.6 GB/sec transfer rates (double the bandwidth of the 1600MHz FSB) eliminates the communication bottleneck between the processor and chipset. On/Off Charge Support GIGABYTE On/Off Charge technology that enables faster iPhone, iPad and iPod Touch charging. A derivative of GIGABYTE's highly acclaimed 3x USB Power feature, On/Off Charge technology allows iPhone, iPad and iPod touch devices to draw more current from GIGABYTE motherboard USB ports than standard USB ports allow, with the added benefit that the PC can be on, in standby mode or even off...more *Due to certain mobile phone limitations, users may need to connect the mobile phone to their PC before the PC enters S4/S5 mode to enable a quick charge from non On/Off Charge USB ports. Charging results may vary by model. On/Off Charge USB port Charges iPad, iPhone and iPod Touch while PC Hibernates or even when shut down (off). GIGABYTE GA-X58A-UD3R Obtains USB 3.0 Motherboard Certification Officially The GIGABYTE motherboards support the latest generation SuperSpeed USB 3.0 technology made possible through an onboard NEC uPD720200 host controller. With superfast transfer rates of up to 5 Gbps, users are able to experience an almost a 10x improvement over USB 2.0. Additionally, backwards compatibility with USB 2.0 assures users of long term use of their legacy USB 2.0 devices. The onboard NEC SuperSpeed USB 3.0 technology also provides new power management features that include increased maximum bus power and device current draw to better accommodate power-hungry devices. * USB 3.0 10x performance is a maximum theoretical value. Actual performance may vary by system configuration. SATA 6 Gbps Support Yet another onboard feature of GIGABYTE X58A motherboards are Marvell's new SE9128 chips for high-speed SATA Revision 3.0 compatibility, delivering superfast 6Gbps link speeds for twice the data transfer rates of SATA Revision 2.0 (3 Gbps). When used in RAID 0 (Stripe) mode, GIGABYTE X58A series motherboards offer even faster data transfer rates of up to 4x the speed of current SATA interfaces. * SATA3 RAID 0 4x and SATA3 2x performance are maximum theoretical values. Actual performance may vary by system configuration. * SATA3 SSDs are not recommended for use in RAID 0 mode on Marvell SE9128 ports. 3x USB Power Boost GIGABYTE motherboards feature a 3x USB power boost, delivering greater compatibility and extra power for USB devices. GIGABYTE’s unique USB power design is also able to efficiently regulate output over the full voltage range, which greatly enhances USB device compatibility. In addition, dedicated lower resistance fuses ensure lower voltage drops, and provide more stable and plentiful power delivery. Qualified for Windows 7 The motherboard qualified for WHQL (Windows Hardware Quality Labs) certification of Windows 7 from Microsoft, setting the standard for future Windows 7 certified motherboards...more Dynamic Energy Saver 2 GIGABYTE Dynamic Energy Saver 2 incorporates a host of intelligent features that use a proprietary hardware and software design to considerably enhance PC system energy efficiency, Reduce power consumption and deliver optimized auto-phase-switching for the CPU, Memory, Chipset, VGA, HDD, and fans with a simple click of button. Hotkey OC download Smart 6- A Smarter way for PC system Management GIGABYTE Smart 6™ is designed with user-friendliness in mind, and offers a combination of 6 innovative software utilities that provide easier and smarter PC system management. Smart 6™ allows you to speed up system performance, reduce boot-up time,
Key Features
GIGABYTE GA-X58A-UD3R. Processor socket: Socket B (LGA 1366), Compatible processor series: Intel® Core™ i7. Memory voltage: 1.5 V, ECC сompatibility: Non-ECC, Supported memory clock speeds: 800,1066,1333 MHz. Motherboard form factor: ATX, Audio output channels: 7.1 channels, Power source type: ATX. BIOS memory size: 32 Mbit. Width: 305 mm, Depth: 244 mm
