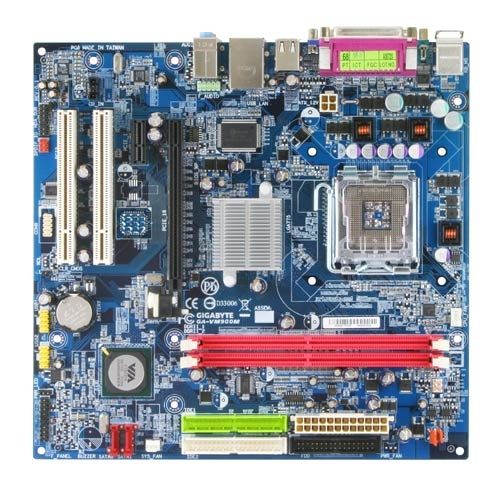

GIGABYTE GA-VM900M motherboard VIA P4M900 LGA 775 (Socket T) micro ATX
Brand: GIGABYTE · SKU: GA-VM900M · MPN: GA-VM900M · Category: Components
GIGABYTE GA-VM900M, Intel, LGA 775 (Socket T), 4 GB, Realtek RTL8201CL, 10/100Mb Ethernet, micro ATX. GIGABYTE GA-VM900M motherboard VIA P4M900 LGA 775 (Socket T) micro ATX (part number GA-VM900M) is an enterprise components product available from Server Tech Central. Key specifications include depth 233 mm, width 244 mm, audio chip VIA VT1708A, microphone in Yes, lan controller Realtek RTL8201CL, cd/aux audio in Yes, expansion slots 1 PCI Expressx16 1 PCI Expressx1 2 PCI, processor socket LGA 775 (Socket T). Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 233 mm |
|---|---|
| Width | 244 mm |
| Audio chip | VIA VT1708A |
| Microphone in | Yes |
| LAN controller | Realtek RTL8201CL |
| CD/AUX audio in | Yes |
| Expansion slots | 1 PCI Expressx16 1 PCI Expressx1 2 PCI |
| Processor socket | LGA 775 (Socket T) |
| CPU fan connector | Yes |
| Headphone outputs | 1 |
| Power source type | ATX |
| COM ports quantity | 1 |
| USB 2.0 connectors | 2 |
| Motherboard chipset | VIA P4M900 |
| Networking features | 10/100Mb Ethernet |
| PS/2 ports quantity | 1 |
| Power fan connector | Yes |
| S/PDIF out connector | Yes |
| WiFi-AP antenna jack | N |
| Serial ports quantity | 1 |
| Number of memory slots | 2 |
| Processor manufacturer | Intel |
| USB 2.0 ports quantity | 4 |
| Maximum internal memory | 4 GB |
| Warranty | 3-Year Warranty |
| Dimensions | 244 mm x 233 mm |
Product Description
Introduction The Gigabyte GA-VM900M motherboard features VIA P4M900 and 8237A express chipset supporting Intel Core™2 Duo processor which enables excellent overall system performance and stability. The integrated graphics, Chrome9 HC Graphics engine, provides high quality graphics to ensure outstanding visual experience for multimedia equipments. It also provides a variety of features such as Serial ATA, 8 USB2.0 ports, 8-channel HD audio, 10/100Mbps network connection, and a high-speed Ultra ATA133 interface. Windows® Vista™ Basic Ready Windows® Vista™ Basic promises to deliver a streamlined computing experience designed to fundamentally change how users view, find and organize their digital information. With Intel LGA775 motherboards solutions all enabling support for Vista™ Basic, GIGABYTE offers a fresh and unique desktop experience that will be more informative, intuitive and completely new. Supports DDR2 667/533 up to 4GB Memory Available with 2 DIMM slots supporting up to 4GB of DDR2 667 memory, GA-VM900M provides the highest performance platform with the high-bandwidth (4.2GB/s) DDR2 memory solution. Intel Next-Generation Core™2 Duo Processor Leading the silicon process technology from 90nm to 65nm, the Intel new-generation CPU transistors deliver more energy-efficient performance than anyone. Based on the Intel's next generation Micro Architecture, the Intel Core ™2 Duo processor with two cores and shared L2 caches provides the best capability-per-watt solutions. The cutting-edge processor the significant performance boosts and better energy efficient platform. Serial ATA with RAID 0, 1, JBOD function Serial ATA is the revolutionary ATA interface that provides scalable performance for IDE device. With up to 150MB/s data transfer rate, Serial ATA is faster than current Parallel ATA and delivers superior input/output performance. In addition, the Serial ATA interface is furnished with RAID 0,1 function for extra performance enhancement and data protection. Ethernet 10/100Mbps Network Connection The onboard 10/100 Mbps Ethernet LAN connection offers a cost-saving and reliable solution for value-minded users requiring straightforward network connectivity. Intel® High Definition Audio Intel® High Definition Audio enables premium digital sound in the PC for an immersive surround sound experience. In addition, Intel HD Audio delivers multiple audio channels in your PC so you can listen to two different streams simultaneously in two separate rooms. RoHS compliant As a member of the global community to look after the environment, Gigabyte complies with the European Union's Restriction of use of certain Hazardous Substances (RoHS) directive which limits the use of lead, mercury, cadmium and other hazardous substances in electronic products.. From components and material selection to production processes, make up of accessories, packaging/color boxes etc; GIGABYTE has carefully examined and designed this product to be 100% RoHS compliant. GIGABYTE will continue to develop RoHS compliant PC components and commit valuable resources to promoting and advancing RoHS directive goals and objectives.
Key Features
GIGABYTE GA-VM900M. Processor manufacturer: Intel, Processor socket: LGA 775 (Socket T). Maximum internal memory: 4 GB. LAN controller: Realtek RTL8201CL, Networking features: 10/100Mb Ethernet. Motherboard form factor: micro ATX, Motherboard chipset: VIA P4M900, Audio chip: VIA VT1708A. Width: 244 mm, Depth: 233 mm
