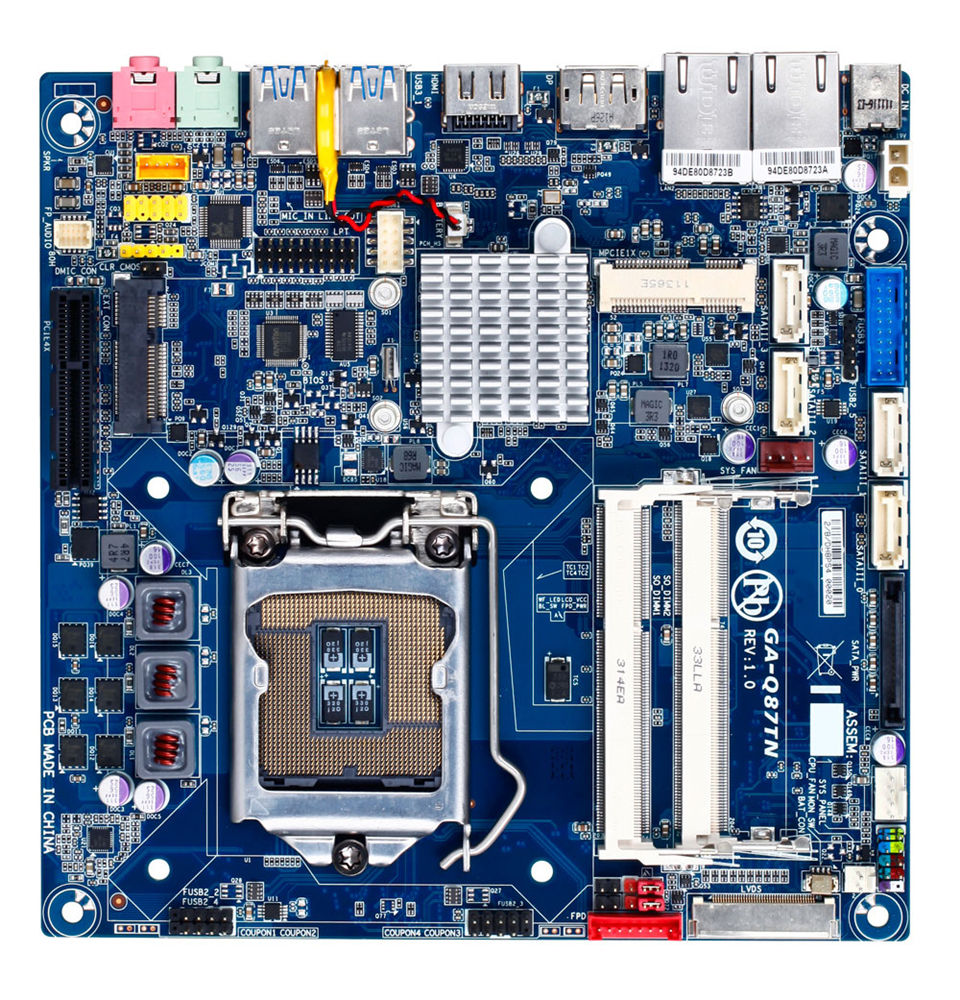

GIGABYTE GA-Q87TN motherboard Intel® Q87 mini ITX
Brand: GIGABYTE · SKU: GA-Q87TN · MPN: GA-Q87TN · Category: Components
GIGABYTE GA-Q87TN, Intel, Intel® Celeron®, Intel® Pentium®, DDR3-SDRAM, 16 GB, SO-DIMM, Dual-channel. GIGABYTE GA-Q87TN motherboard Intel® Q87 mini ITX (part number GA-Q87TN) is an enterprise components product available from Server Tech Central. Key specifications include depth 170 mm, width 170 mm, bios type EFI AMI, acpi version 2.0a, ethernet lan Yes, hdmi version 1.4a, component for PC, microphone in Yes. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 170 mm |
|---|---|
| Width | 170 mm |
| BIOS type | EFI AMI |
| ACPI version | 2.0a |
| Ethernet LAN | Yes |
| HDMI version | 1.4a |
| Component for | PC |
| Microphone in | Yes |
| Memory voltage | 1.5 V |
| Memory channels | Dual-channel |
| CPU fan connector | Yes |
| Clear CMOS jumper | Yes |
| Memory slots type | SO-DIMM |
| Power source type | ATX |
| Maximum resolution | 4096 x 2160 pixels |
| Parallel connector | Yes |
| USB 2.0 connectors | 1 |
| HDMI ports quantity | 1 |
| Motherboard chipset | Intel® Q87 |
| Serial port headers | 1 |
| PC health monitoring | CPU |
| PCI Express x4 slots | 1 |
| mSATA ports quantity | 1 |
| Audio output channels | 7.1 channels |
| Warranty | 3-Year Warranty |
| Dimensions | 170 mm x 170 mm |
Product Description
GIGABYTE Thin Mini-ITX Motherboards GIGABYTE Thin-Mini-ITX motherboards are the ideal platform for today’s All-in-One, small form factor and slim profile PCs. Offering a full featured PC experience in a minimal device footprint, GIGABYTE Thin Mini-ITX motherboards are 43% thinner than traditional Mini-ITX designs. Complying with the latest Thin Mini-ITX guidelines, GIGABYTE Thin Mini-ITX motherboards offer additional flexibility making them suited to broad range of innovative PC designs. Selectable Panel Power Driver GIGABYTE Thin Mini-ITX motherboards feature a selectable power driver allowing for both 3.3v and 5v configurations. This brings additional flexibility for LVDS panels that require both 3.3v and 5v drivers. Voltage settings are configured via an onboard jumper. Selectable Back Light Power Module GIGABYTE Thin Mini-ITX motherboards offer flexible backlight power delivery with both 12v and 19v options available via onboard jumpers. This enhances compatibility with the wide range of backlit displays available today. Wide Range Voltage Input Offering additional flexibility for system DC voltage input, GIGABYTE Thin Mini-ITX motherboards offer a broad voltage range of 12v to 19v, eliminating compatibility issues with many traditional IPC designs. PCI Express x4 Expansion Slot GIGABYTE Thin Mini-ITX motherboards are equipped with a x4 PCI Express expansion slot providing up to 25W of power and easy integration of TV tuner, video capture or RAID cards with a compatible riser card.
Key Features
GIGABYTE GA-Q87TN. Processor manufacturer: Intel, Compatible processor series: Intel® Celeron®, Intel® Pentium®. Supported memory types: DDR3-SDRAM, Maximum internal memory: 16 GB, Memory slots type: SO-DIMM. Supported storage drive interfaces: SATA III. Maximum resolution: 4096 x 2160 pixels. HDMI version: 1.4a
Frequently Asked Questions
Is this product genuine OEM?
Yes, this GIGABYTE GA-Q87TN motherboard Intel® Q87 mini ITX (GA-Q87TN) is 100% genuine GIGABYTE hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This GIGABYTE GA-Q87TN motherboard Intel® Q87 mini ITX includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the GIGABYTE GA-Q87TN motherboard Intel® Q87 mini ITX compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the GA-Q87TN.
