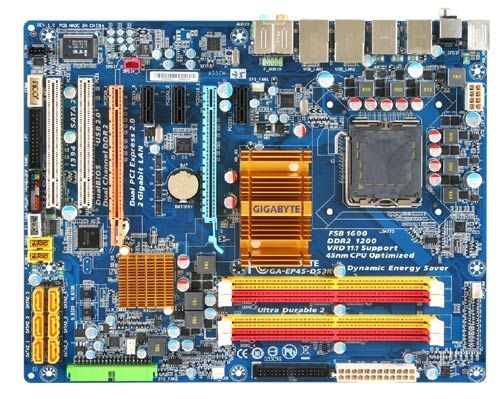

GIGABYTE GA-EP45-DS3R S775 P45 ATX LGA 775 (Socket T)
Brand: GIGABYTE · SKU: GA-EP45-DS3R · MPN: GA-EP45-DS3R · Category: Components
GIGABYTE GA-EP45-DS3R S775 P45 ATX, Intel, LGA 775 (Socket T), 16 GB, 0, 1, 10, Realtek RTL8111C, 10/100/1000 Mbit. GIGABYTE GA-EP45-DS3R S775 P45 ATX LGA 775 (Socket T) (part number GA-EP45-DS3R) is an enterprise components product available from Server Tech Central. Key specifications include bios type Award, audio chip Realtek ALC889A, raid levels 0, 1, 10, lan controller Realtek RTL8111C, cd/aux audio in Yes, expansion slots 1 x PCIE x16 1 x PCIE 2.0 x8 3 x PCIE x1 2 x PCI, s/pdif out port Yes, bios memory size 64 Mbit. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| BIOS type | Award |
|---|---|
| Audio chip | Realtek ALC889A |
| RAID levels | 0, 1, 10 |
| LAN controller | Realtek RTL8111C |
| CD/AUX audio in | Yes |
| Expansion slots | 1 x PCIE x16 1 x PCIE 2.0 x8 3 x PCIE x1 2 x PCI |
| S/PDIF out port | Yes |
| BIOS memory size | 64 Mbit |
| Processor socket | LGA 775 (Socket T) |
| CPU fan connector | Yes |
| Headphone outputs | 6 |
| Power source type | ATX |
| USB 2.0 connectors | 2 |
| Networking features | 10/100/1000 Mbit |
| PS/2 ports quantity | 2 |
| Power fan connector | Yes |
| S/PDIF out connector | Yes |
| Audio output channels | 7.1 channels |
| Number of memory slots | 4 |
| Processor manufacturer | Intel |
| USB 2.0 ports quantity | 8 |
| Maximum internal memory | 16 GB |
| Motherboard form factor | ATX |
| Number of SATA connectors | 6 |
| Warranty | 3-Year Warranty |
Product Description
Based on the new Intel P45 chipset, GA-EP45-DS3R delivers a record setting 1600MHz Front Side Bus for the latest Intel® Core 2™ multi-core processors, including 45nm CPUs. With supporting dual channel DDR2 up to 1200MHz. GA-EP45-DS3R is equipped to support ATI CrossFireX™ Technology with dual PCI Express 2.0 x8 interfaces, delivering double the PCI Express bandwidth of 5 Gbit/s for the ultimate in extreme gaming performance. GA-EP45-DS3R also delivers several advanced GIGABYTE innovations including the DES Advanced, Ultra Durable 2, Ultra TPM design which provide optimized power savings, ultra cooling and ultra secure data protection. Smaller, Faster and More Efficient. GA-EP45-DS5 motherboards paired with Intel 45nm CPUs deliver the very best platform for multitasking, multimedia and high performance gaming. Not only do GIGABYTE's latest motherboards based on Intel Eaglelake chipsets all support Intel's new generation, 45nm multi-core processors. Dual Channel DDR2 1200. Experience the advanced technology of DDR2 1200 memory, featuring faster speeds and higher data bandwidth, which delivers superior performance for the most demanding applications. PCI-E 2.0 Graphic Interface. PCI-E 2.0 doubles the bus standard's bandwidth from 2.5 Gbit/s to 5 Gbit/s, meaning a x32 connector can transfer data at up to 16 GB/s in each direction. PCIe 2.0 also features improvements to the point-to-point data transfer protocol and its software architecture. ATI CrossFireX. With support for ATI CrossFireX, GIGABYTE pushes the envelope once again by delivering highly optimized performance and flexibility demanded by power users and extreme gaming enthusiasts. Designed to provide unmatched multi-GPU support with dual PCI Express connectivity, the GA-EP45-DS5 allows users to take advantage of the ultra smooth 3D rendering, blazing-fast frame rates and enhanced visual quality possible with a dual graphics card solution. Dolby Home Theater® - Enjoy a Rich Home Theater Surround Sound Experience. Dolby Home Theater places listeners in the middle of the action, giving their PCs a powerful set of tools to deliver a cinema-style experience in vivid surround sound. - Delivers vivid surround sound for music, movies, and games, using two to eight speakers or any set of headphones. - Designed to automatically deliver the best possible listening experience. Dynamic Energy Saver Advanced. GIGABYTE Dynamic Energy Saver Advanced provides better energy saving capabilities and enhanced system performance. GIGABYTE Dynamic Energy Saver Advanced is the world's only motherboard energy saving technology with hardware-based Dynamic 6-Gear Switching. With support for VRD 11.1, GIGABYTE’s DES Advanced allows the motherboard to switch to 1 Gear phase switching during idle, allowing for a dramatic increase in power savings. GIGABYTE has also retooled Dynamic Energy Saver to allow overclockers to experience the benefits of multi-gear power phase switching while overclocking, providing ultra stable, ultra smooth overclocking performance. Ultra Durable 2 -Designed with Top Quality Highly Efficient Components. - Ultra Cooling - Low RDS(on) MOSFET Design. Low RDS(on) MOSFETs specially designed to produce lower switching resistance for faster electric current charging and discharging. - Low Power Loss - Ferrite Core Choke Design. Ferrite core chokes comprised of a compound of iron oxide and other metal elements whose properties hold energy much longer than common iron core at high frequency. - Longer Life - All-Solid Capacitor Design. Solid capacitors contain a solid organic polymer, while electrolytic capacitors use a common liquid electrolyte, hence, the terms solid capacitor versus electrolytic capacitors. Ultra TPM - Industry’s highest level of data Security via onboard TPM. - Maximum level of data protection with 2048 bit encryption. - Security, manageability and flexibility that surpasses software-based encryption. - Portable User Key to protect data when away from your system. - Additional backup of user key in BIOS in case of misplaced key. High Velocity 2X Bandwidth Boost. The Dual LAN with Teaming functionality enabled allows 2 single connections to act as 1 single connection for 2x Bandwidth, improving overall throughput. Prevents network downtime by transferring the workload from a failed port to a working port. Receive Side Scaling balances the network traffic load evenly between 2 CPU cores in order to improve performance. Adjusts power consumption automatically according to your LAN cable lengths, up to 10% power savings. Hardware Overvoltage Control ICs. Hardware Overvoltage Control ICs which provide more voltage control options than before for the CPU North Bridge and memory. The overvoltage controllers also provide hardware linear real-time voltage control. In addition, Hardware Overvoltage Controller ICs also allow for much finer voltage control, allowing power users to adjust voltage in as little increments as 20mV for better overclocking perf
Key Features
GIGABYTE GA-EP45-DS3R S775 P45 ATX. Processor manufacturer: Intel, Processor socket: LGA 775 (Socket T). Maximum internal memory: 16 GB. RAID levels: 0, 1, 10. LAN controller: Realtek RTL8111C, Networking features: 10/100/1000 Mbit. Motherboard form factor: ATX, Audio output channels: 7.1 channels, Audio chip: Realtek ALC889A
Frequently Asked Questions
Is this product genuine OEM?
Yes, this GIGABYTE GA-EP45-DS3R S775 P45 ATX LGA 775 (Socket T) (GA-EP45-DS3R) is 100% genuine GIGABYTE hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This GIGABYTE GA-EP45-DS3R S775 P45 ATX LGA 775 (Socket T) includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the GIGABYTE GA-EP45-DS3R S775 P45 ATX LGA 775 (Socket T) compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the GA-EP45-DS3R.
