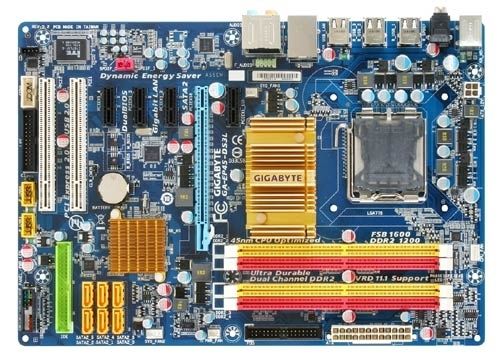

GIGABYTE GA-EP45-DS3L ATX LGA775 1600DDRII LGA 775 (Socket T)
Brand: GIGABYTE · SKU: GA-EP45-DS3L · MPN: GA-EP45-DS3L · Category: Components
GIGABYTE GA-EP45-DS3L ATX LGA775 1600DDRII, Intel, LGA 775 (Socket T), 16 GB, 0, 1, 10, Realtek RTL8111C, 10/100/1000 Mbit. GIGABYTE GA-EP45-DS3L ATX LGA775 1600DDRII LGA 775 (Socket T) (part number GA-EP45-DS3L) is an enterprise components product available from Server Tech Central. Key specifications include bios type Award, audio chip Realtek ALC888, raid levels 0, 1, 10, lan controller Realtek RTL8111C, cd/aux audio in Yes, expansion slots 1 x PCIE 2.0 x16 4 x PCIE x1 2 x PCI, s/pdif out port Yes, bios memory size 64 Mbit. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| BIOS type | Award |
|---|---|
| Audio chip | Realtek ALC888 |
| RAID levels | 0, 1, 10 |
| LAN controller | Realtek RTL8111C |
| CD/AUX audio in | Yes |
| Expansion slots | 1 x PCIE 2.0 x16 4 x PCIE x1 2 x PCI |
| S/PDIF out port | Yes |
| BIOS memory size | 64 Mbit |
| Processor socket | LGA 775 (Socket T) |
| CPU fan connector | Yes |
| Headphone outputs | 6 |
| Power source type | ATX |
| USB 2.0 connectors | 2 |
| Networking features | 10/100/1000 Mbit |
| PS/2 ports quantity | 2 |
| Power fan connector | Yes |
| S/PDIF out connector | Yes |
| Audio output channels | 7.1 channels |
| Number of memory slots | 4 |
| Processor manufacturer | Intel |
| USB 2.0 ports quantity | 8 |
| Maximum internal memory | 16 GB |
| Motherboard form factor | ATX |
| Number of SATA connectors | 6 |
| Warranty | 3-Year Warranty |
Product Description
Based on the new Intel P45 chipset, GA-EP45-DS3L delivers a record setting 1600MHz Front Side Bus for the latest Intel® Core 2™ multi-core processors, including 45nm CPUs and supporting dual channel DDR2 up to 1200MHz. GA-EP45-DS3L features PCI Express 2.0 x16 interfaces, delivering double the PCI Express bandwidth of 5 Gbit/s for the ultimate in extreme gaming performance. GA-EP45-DS3L delivers several advanced GIGABYTE innovations including the DES Advanced, Ultra Durable design which provide optimized power savings, ultra cooling and ultra durability. Smaller, Faster and More Efficient. GA-EP45-DS3 motherboards paired with Intel 45nm CPUs deliver the very best platform for multitasking, multimedia and high performance gaming. Not only do GIGABYTE's latest motherboards based on Intel Eaglelake chipsets all support Intel's new generation, 45nm multi-core processors. Dual Channel DDR2 1200. Experience the advanced technology of DDR2 1200 memory, featuring faster speeds and higher data bandwidth, which delivers superior performance for the most demanding applications. PCI-E 2.0 Graphic Interface. PCI-E 2.0 doubles the bus standard's bandwidth from 2.5 Gbit/s to 5 Gbit/s, meaning a x32 connector can transfer data at up to 16 GB/s in each direction. PCIe 2.0 also features improvements to the point-to-point data transfer protocol and its software architecture. Intel® High Definition Audio. Intel® High Definition Audio enables 8 channel premium digital sound in the PC for an immersive surround sound experience. In addition, Intel HD Audio delivers multiple audio channels in your PC so you can listen to two different streams simultaneously in two separate rooms. Dynamic Energy Saver Advanced. GIGABYTE Dynamic Energy Saver Advanced provides better energy saving capabilities and enhanced system performance. GIGABYTE Dynamic Energy Saver Advanced is the world’s only motherboard energy saving technology with hardware-based Dynamic 4-Gear* Switching. With support for VRD 11.1, GIGABYTE’s DES Advanced allows the motherboard to switch to 1 Gear phase switching during idle, allowing for a dramatic increase in power savings. GIGABYTE has also retooled Dynamic Energy Saver to allow overclockers to experience the benefits of multi-gear power phase switching while overclocking, providing ultra stable, ultra smooth overclocking performance. The Industry's Leading All-Solid Capacitor motherboard Design. To ensure a longer for systems in daily operation and boost system stability under extreme conditions, this platform adopts cutting-edge Conductive Polymer Aluminum Solid Capacitors from the world's leading vendors. With these high-quality components, users can take advantage of better electronic conductivity and excellent heat resistance for enhanced system durability. Gigabit LAN connectivity. The Gigabit network interface delivers a high speed LAN connection with data transfer rate up to 1000Mb/s, providing new generation connectivity for the broadband era. Gigabit LAN is ideally for seamless internet connection such as streaming audio and video contents. Adjusts power consumption automatically according to your LAN cable lengths, up to 10% power savings. EasyTune6. GIGABYTE has completely redesigned EasyTune6 from the ground up to make it easier than ever to manage and monitor your hardware resources as well as tweak your system settings in order to achieve maximum system performance. Whether you are an overclocking enthusiast, or a computer novice, EasyTune6 provides the tools you need to quickly and effortlessly fine tune your system. DualBIOS™ - Patented Dual Hardware BIOS Protection. DualBIOS™ is a GIGABYTE patented technology that automatically recovers BIOS data when main BIOS has crashed or failed. Featuring 2 physical BIOS ROMs integrated onboard, GIGABYTE DualBIOS™ allows quick and seamless recovery from BIOS damage or failure due to viruses or improper BIOS updating.
Key Features
GIGABYTE GA-EP45-DS3L ATX LGA775 1600DDRII. Processor manufacturer: Intel, Processor socket: LGA 775 (Socket T). Maximum internal memory: 16 GB. RAID levels: 0, 1, 10. LAN controller: Realtek RTL8111C, Networking features: 10/100/1000 Mbit. Motherboard form factor: ATX, Audio output channels: 7.1 channels, Audio chip: Realtek ALC888
Frequently Asked Questions
Is this product genuine OEM?
Yes, this GIGABYTE GA-EP45-DS3L ATX LGA775 1600DDRII LGA 775 (Socket T) (GA-EP45-DS3L) is 100% genuine GIGABYTE hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This GIGABYTE GA-EP45-DS3L ATX LGA775 1600DDRII LGA 775 (Socket T) includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the GIGABYTE GA-EP45-DS3L ATX LGA775 1600DDRII LGA 775 (Socket T) compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the GA-EP45-DS3L.
