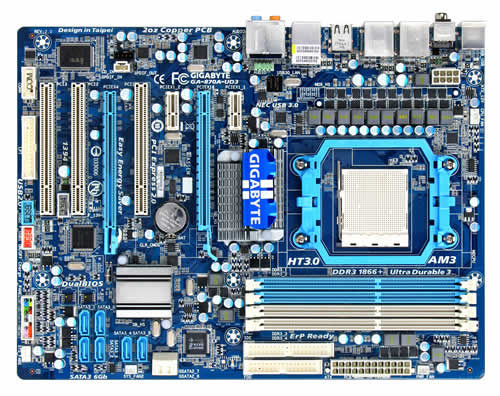

GIGABYTE GA-870A-UD3 (REV. 2.0) motherboard AMD 870 (RX881) Socket AM3 ATX
Brand: GIGABYTE · SKU: GA-870A-UD3 (REV. 2.0) · MPN: GA-870A-UD3 (REV. 2.0) · Category: Components
GIGABYTE GA-870A-UD3 (REV. 2.0), AMD, Socket AM3, Athlon II, DDR3-SDRAM, 16 GB, 1.5 V. GIGABYTE GA-870A-UD3 (REV. 2.0) motherboard AMD 870 (RX881) Socket AM3 ATX (part number GA-870A-UD3 (REV. 2.0)) is an enterprise components product available from Server Tech Central. Key specifications include depth 230 mm, width 305 mm, bios type AWARD, pci slots 3, acpi version 1.0b, component for PC, microphone in Yes, memory voltage 1.5 V. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 230 mm |
|---|---|
| Width | 305 mm |
| BIOS type | AWARD |
| PCI slots | 3 |
| ACPI version | 1.0b |
| Component for | PC |
| Microphone in | Yes |
| Memory voltage | 1.5 V |
| S/PDIF in port | Yes |
| S/PDIF out port | Yes |
| Bundled software | Norton Internet Security |
| Processor socket | Socket AM3 |
| CPU fan connector | Yes |
| Clear CMOS button | Yes |
| Headphone outputs | 2 |
| Power source type | ATX |
| Parallel connector | Yes |
| USB 2.0 connectors | 2 |
| Motherboard chipset | AMD 870 (RX881) |
| Networking features | Gigabit Ethernet |
| PS/2 ports quantity | 1 |
| S/PDIF in connector | Yes |
| PCI Express x1 slots | 2 |
| S/PDIF out connector | Yes |
| Warranty | 3-Year Warranty |
| Dimensions | 305 mm x 230 mm |
Product Description
Get Ready to Unleash the Power of AMD 6-Core CPU GIGABYTE's AMD motherboards are ready to support the new generation of AMD Phenom™II X 6 processors, delivering the very best platform for multitasking, multimedia and high performance gaming. On/Off Charge Technology GIGABYTE On/Off Charge technology allows you to charge your iPhone, iPad and iPod Touch regardless of whether your PC is on, in standby mode or even off. A derivative of GIGABYTE's highly acclaimed 3x USB Power feature, On/Off Charge enables devices to draw more current from GIGABYTE motherboard USB ports than standard USB ports allow, so that charging from your PC can be as fast as with a charger. Introduction The 870A-UD3 motherboard is designed to offer a stable, high-speed platform for delivering amazingly fast data transfer via revolutionary GIGABYTE Ultra Durable 3 technology with featuring 2 oz copper PCB, and further the latest GIGABYTE 333 onboard acceleration technologies (USB 3.0 / SATA3 6Gbs / 3X USB power). Based on AMD 870 chipset, the 870A-UD3 supports the latest 45nm AMD AM3 Phenom II/ Athlon II processors, integrated DDR3 memory controller, HyperTransport™ 3.0 technology links and dual PCI Express 2.0 graphics interfaces, and so on. With the innovative GIGABYTE Easy Energy Saver technology, the 870A-UD3 is able to provide user friendly computing, reach the maximum system performance easily while still able to save the power and environment in real life at the same time. Supports next generation of 45nm AMD AM3 CPU This motherboard designs with Split Power Plane, 8+2 phase VRM to support AMD the latest 45nm AM3 Phenom™II/ Athlon™II processors, delivering the great performance enchantment to system and ultimate scalability hardware expending. Auto Unlock Support Experience a phenomenal performance upgrade with GIGABYTE’s innovative Auto Unlock technology that unleashes your system’s hidden performance. Featuring a unique design that enables the processor’s hidden cores by BIOS, GIGABYTE Auto Unlock technology effectively provides a CPU upgrade while running multi-threaded applications or multi-tasking. USB 3.0 Support The GIGABYTE motherboards support the latest generation SuperSpeed USB 3.0 technology made possible through an onboard USB3.0 host controller. With superfast transfer rates of up to 5 Gbps, users are able to experience an almost a 10x improvement over USB 2.0. Additionally, backwards compatibility with USB 2.0 assures users of long term use of their legacy USB 2.0 devices. The onboard SuperSpeed USB 3.0 technology also provides new power management features that include increased maximum bus power and device current draw to better accommodate power-hungry devices. 3x USB Power Boost GIGABYTE motherboards feature a 3x USB power boost, delivering greater compatibility and extra power for USB devices. GIGABYTE’s unique USB power design is also able to efficiently regulate output over the full voltage range, which greatly enhances USB device compatibility. In addition, dedicated lower resistance fuses ensure lower voltage drops, and provide more stable and plentiful power delivery. SATA 6 Gbps Support Yet another onboard feature of GIGABYTE AMD 800A series motherboards are integrated the latest AMD SB850 chip for high-speed SATA Revision 3.0 compatibility, delivering 6 ports native superfast 6Gbps link speeds for twice the data transfer rates of SATA Revision 2.0 (3 Gbps) and RAID 0, 1, 5, 10 support. When used in RAID 0 (Stripe) mode, GIGABYTE AMD 800A series motherboards offer even faster data transfer rates of up to 4x the speed of current SATA interfaces. Ultra Durable 3 GIGABYTE Ultra Durable 3 design, featuring 2 ounces of copper for both the Power and Ground layers which dramatically lowers system temperature by delivering a more efficient spreading of heat from critical areas of the motherboard such as the CPU power zone throughout the entire PCB. GIGABYTE's Ultra Durable 3 also lowers the PCB impedance by 50%, which helps to reduce electrical waste and further lowers component temperatures. A 2oz Copper layer design also provides improved signal quality and lower EMI (Electromagnetic Interference), providing better system stability and allowing for greater margins for overclocking. AMD OverDrive Support The AMD OverDrive™ utility is provided by AMD, offering high-end users the ability to maximize the capability, flexibility, and adjustability of the platforms utilizing AMD processors, sockets, and chipsets. Dual Channel DDR3 1866+ MHz Delivering native support for DDR3 memory up to 1866MHz, GIGABYTE Ultra Durable 3 motherboards allow users to easily reach higher memory frequencies at lower voltages; achieving higher memory performance with lower power consumption to run even the most memory intensive applications such as high-definition video and 3D games with ease. GIGABYTE innovative technology- Easy Energy Saver Featuring an advanced proprietary software design, GIGABYTE Easy Energy Saver is able to dynamical
Key Features
GIGABYTE GA-870A-UD3 (REV. 2.0). Processor manufacturer: AMD, Processor socket: Socket AM3, Compatible processor series: Athlon II. Supported memory types: DDR3-SDRAM, Maximum internal memory: 16 GB, Memory voltage: 1.5 V. Supported storage drive interfaces: SATA II, SATA III. Ethernet interface type: Gigabit Ethernet, Networking features: Gigabit Ethernet. Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: AMD
