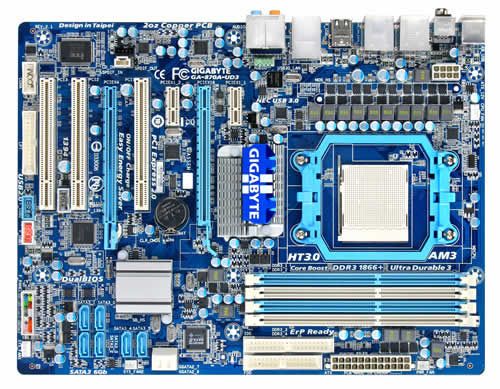

GIGABYTE GA-870A-UD3 Socket AM3 ATX
Brand: GIGABYTE · SKU: GA-870A-UD3 · MPN: GA-870A-UD3 · Category: Components
GIGABYTE GA-870A-UD3, AMD, Socket AM3, 16 GB, 1.5 V, 1066,1333 MHz, 0, 1, 5, 10, JBOD. GIGABYTE GA-870A-UD3 Socket AM3 ATX (part number GA-870A-UD3) is an enterprise components product available from Server Tech Central. Key specifications include depth 230 mm, width 305 mm, raid levels 0, 1, 5, 10, JBOD, audio output Realtek ALC892, microphone in Yes, memory voltage 1.5 V, s/pdif in port Yes, cd/aux audio in Yes. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 230 mm |
|---|---|
| Width | 305 mm |
| RAID levels | 0, 1, 5, 10, JBOD |
| Audio output | Realtek ALC892 |
| Microphone in | Yes |
| Memory voltage | 1.5 V |
| S/PDIF in port | Yes |
| CD/AUX audio in | Yes |
| S/PDIF out port | Yes |
| BIOS memory size | 16 Mbit |
| Bundled software | Norton Internet Security |
| Drivers included | Yes |
| Processor socket | Socket AM3 |
| CPU fan connector | Yes |
| Power source type | ATX |
| USB 2.0 connectors | 2 |
| PS/2 ports quantity | 1 |
| Power fan connector | Yes |
| S/PDIF in connector | Yes |
| PCI Express x1 slots | 2 |
| S/PDIF out connector | Yes |
| eSATA ports quantity | 2 |
| Audio output channels | 7.1 channels |
| PCI Express x16 slots | 2 |
| Warranty | 3-Year Warranty |
| Dimensions | 305 mm x 230 mm |
Product Description
Get Ready to Unleash the Power of AMD 6-Core CPU GIGABYTE's AMD motherboards are ready to support the new generation of AMD Phenom™II X 6 processors, delivering the very best platform for multitasking, multimedia and high performance gaming. Introduction The 870A-UD3 motherboard is designed to offer a stable, high-speed platform for delivering amazingly fast data transfer via revolutionary GIGABYTE Ultra Durable 3 technology with featuring 2 oz copper PCB, and further the latest GIGABYTE 333 onboard acceleration technologies (USB 3.0 / SATA3 6Gbs / 3X USB power). Based on AMD 870 chipset, the 870A-UD3 supports the latest 45nm AMD AM3 Phenom II/ Athlon II processors, integrated DDR3 memory controller, HyperTransport™ 3.0 technology links and dual PCI Express 2.0 graphics interfaces, and so on. With the innovative GIGABYTE Easy Energy Saver technology, the 870A-UD3 is able to provide user friendly computing, reach the maximum system performance easily while still able to save the power and environment in real life at the same time. Supports next generation of 45nm AMD AM3 CPU This motherboard designs with Split Power Plane, 8+2 phase VRM to support AMD the latest 45nm AM3 PhenomII/ AthlonII processors, delivering the great performance enchantment to system and ultimate scalability hardware expending. Auto Unlock Support Experience a phenomenal performance upgrade with GIGABYTE’s innovative Auto Unlock technology that unleashes your system’s hidden performance. Featuring a unique design that enables the processor’s hidden cores by BIOS, GIGABYTE Auto Unlock technology effectively provides a CPU upgrade while running multi-threaded applications or multi-tasking. * The ability of unlocking the hidden CPU cores might vary by different processors. USB 3.0 Support The GIGABYTE AMD 800A series motherboards support the latest generation SuperSpeed USB 3.0 technology made possible through an onboard NEC uPD720200 host controller. With superfast transfer rates of up to 5 Gbps, users are able to experience an almost a 10x improvement over USB 2.0. Additionally, backwards compatibility with USB 2.0 assures users of long term use of their legacy USB 2.0 devices. The onboard NEC SuperSpeed USB 3.0 technology also provides new power management features that include increased maximum bus power and device current draw to better accommodate power-hungry devices. * USB 3.0 10x performance is a maximum theoretical value. Actual performance may vary by system configuration. 3x USB Power Boost GIGABYTE motherboards feature a 3x USB power boost, delivering greater compatibility and extra power for USB devices. GIGABYTE’s unique USB power design is also able to efficiently regulate output over the full voltage range, which greatly enhances USB device compatibility. In addition, dedicated lower resistance fuses ensure lower voltage drops, and provide more stable and plentiful power delivery. SATA 6 Gbps Support Yet another onboard feature of GIGABYTE AMD 800A series motherboards are integrated the latest AMD SB850 chip for high-speed SATA Revision 3.0 compatibility, delivering 6 ports native superfast 6Gbps link speeds for twice the data transfer rates of SATA Revision 2.0 (3 Gbps) and RAID 0, 1, 5, 10 support. When used in RAID 0 (Stripe) mode, GIGABYTE AMD 800A series motherboards offer even faster data transfer rates of up to 4x the speed of current SATA interfaces. * SATA3 RAID 0 4x and SATA3 2x performance are maximum theoretical values. Actual performance may vary by system configuration. AMD OverDrive Support The AMD OverDrive utility is provided by AMD, offering high-end users the ability to maximize the capability, flexibility, and adjustability of the platforms utilizing AMD processors, sockets, and chipsets. Dual Channel DDR3 2000+ MHz Delivering native support for DDR3 memory up to 2000MHz, GIGABYTE Ultra Durable 3 series motherboards allow users to easily reach higher memory frequencies at lower voltages; achieving higher memory performance with lower power consumption to run even the most memory intensive applications such as high-definition video and 3D games with ease. GIGABYTE innovative technology- Easy Energy Saver Featuring an advanced proprietary software design, GIGABYTE Easy Energy Saver is able to dynamically adjust CPU power depending on workload, delivering just the right amount of power needed for the task. Coupled with AMD’s highly efficient 45nm AM3 CPU, the Easy Energy Saver is able to provide exceptional levels of power savings and enhanced power efficiency without sacrificing computing performance. EasyTune6 GIGABYTE has completely redesigned EasyTune6 from the ground up to make it easier than ever to manage and monitor your hardware resources as well as tweak your system settings in order to achieve maximum system performance. Whether you are an overclocking enthusiast, or a computer novice, EasyTune6 provides the tools you need to quickly and effortlessly fine tune your system. Norton Internet Securi
Key Features
GIGABYTE GA-870A-UD3. Processor manufacturer: AMD, Processor socket: Socket AM3. Maximum internal memory: 16 GB, Memory voltage: 1.5 V, Supported memory clock speeds: 1066,1333 MHz. RAID levels: 0, 1, 5, 10, JBOD. Motherboard form factor: ATX, Audio output channels: 7.1 channels, Power source type: ATX. BIOS memory size: 16 Mbit
Frequently Asked Questions
Is this product genuine OEM?
Yes, this GIGABYTE GA-870A-UD3 Socket AM3 ATX (GA-870A-UD3) is 100% genuine GIGABYTE hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This GIGABYTE GA-870A-UD3 Socket AM3 ATX includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the GIGABYTE GA-870A-UD3 Socket AM3 ATX compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the GA-870A-UD3.
