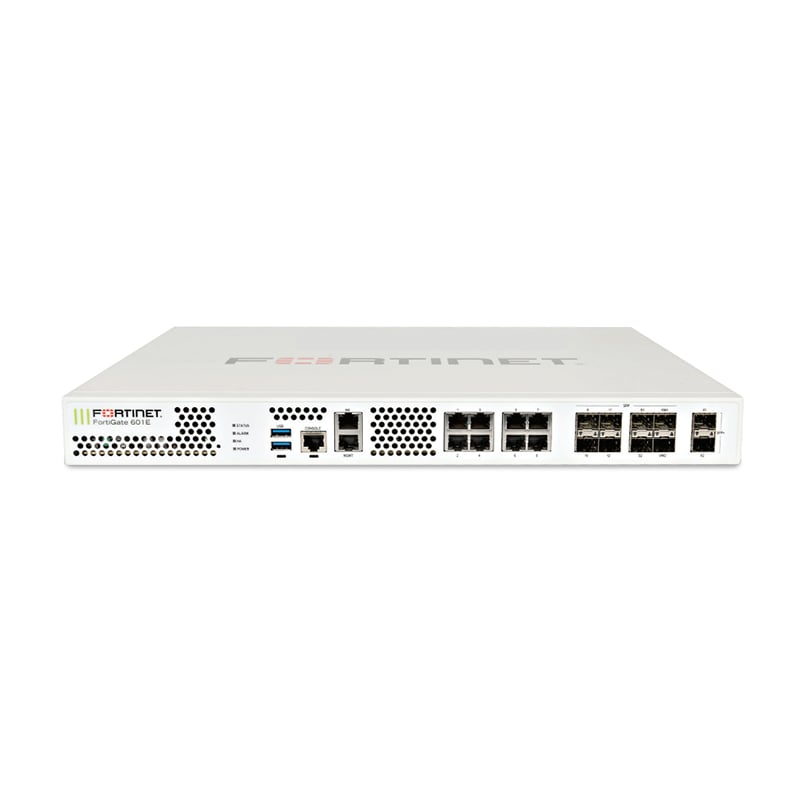

FG-601E-BDL-950-36, Fortinet FG-601E UTM Firewall, 3-Year 24x7 FortiCare, 3-Year UTP, Hardware included
SKU: FT:FG-601E-BDL-950-36 · MPN: FT:FG-601E-BDL-950-36 · Category: Networking
FG-601E Hardware plus 3 Year 24*7 FortiCare and FortiGuard Unified (UTP) Protection (FG-601E & FC-10-F6H1E-950-02-36)
Specifications
| Depth | 15 in |
|---|---|
| Width | 17 in |
| Height | 1.7 in |
| Capacity | Concurrent TCP sessions: 8000000 ¦ New TCP sessions per second: 450000 ¦ Firewall policies: 10000 ¦ Gateway to gateway IPSec VPN Tunnels: 2000 ¦ Client to gateway IPSec VPN tunnels: 50000 ¦ Concurrent SSL VPN users: 5000 ¦ Virtual domains: 10 ¦ Maximum number of switches: 48 ¦ Number of FortiAP devices: 512 ¦ Number of FortiToken devices: 1000 ¦ Maximum number of registered endpoints: 2000 |
| Features | Firewall protection, switching, routing, VPN support, traffic shaping, content filtering, manageable, IPv6 support, High Availability, Intrusion Prevention System (IPS), IPSec Virtual Private Network (VPN), anti-malware protection, IPv4 support, web threat protection, CAPWAP support, application filtering, checksum offload support, anti-virus protection |
| Hard Drive | SSD 240 GB x 2 |
| Interfaces | 2 x 10Gb Ethernet - SFP+ ¦ 1 x 1000Base-T (management) - RJ-45 ¦ 1 x 1000Base-T (HA) - RJ-45 ¦ 8 x 1000Base-T - RJ-45 ¦ 8 x 1000Base-X - SFP (mini-GBIC) ¦ 1 x console - RJ-45 ¦ 2 x USB 3.0 - Type A |
| Device Type | Security appliance |
| Form Factor | Rack-mountable |
| OS Provided | FortiOS |
| Performance | IPS throughput (enterprise traffic mix): 10 Gbps ¦ NGFW throughput: 9.5 Gbps ¦ Threat protection throughput: 7 Gbps ¦ Firewall throughput (1518-byte UDP): 36 Gbps ¦ Firewall throughput (512-byte UDP): 36 Gbps ¦ Firewall throughput (64-byte UDP): 27 Gbps ¦ IPv6 firewall throughput (1518-byte UDP): 36 Gbps ¦ IPv6 firewall throughput (512-byte UDP): 36 Gbps ¦ IPv6 firewall throughput (64-byte UDP): 27 Gbps ¦ Firewall latency (64-byte UDP): 2 µs ¦ Firewall throughput: 40.5 Mpps ¦ VPN throughput (512-bit IPSec): 20 Gbps ¦ VPN throughput (SSL): 7 Gbps ¦ SSL inspection throughput: 8 Gbps ¦ SSL inspection throughput: 5500 connections per second ¦ SSL inspection throughput: 800000 concurrent sessions per second ¦ Application control (AVC) throughput: 15 Gbps ¦ CAPWAP throughput: 18 Gbps |
| Power Device | Internal power supply |
| Bundled Services | 1 year FortiCare 24X7 Comprehensive Support + 1 year FortiGuard |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Status Indicators | Power, status, alarm, HA |
| Data Link Protocol | Gigabit Ethernet, 10 Gigabit Ethernet |
| Compliant Standards | UL, VCCI, C-Tick, ICSA IPSec certified, ICSA Firewall certified, cUL, ICSA Antivirus, CB, FCC Part 15 B Class A, IPv6 Ready, USGv6, ICSA SSL-VPN, ICSA IPS |
| Height (Rack Units) | 1U |
| Encryption Algorithm | SSL, 256-bit AES, 256-bit SHA, TLS 1.2 |
| Included Accessories | 2 SX SFP transceivers |
| Processors Installed | Fortinet FortiASIC CP9/NP6 |
| Connectivity Technology | Wired |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Max Operating Temperature | 104 °F |
| Warranty | 3-Year Warranty |
Key Features
- OEM Genuine Component verified by certified technicians.
- Clean serial number ready for service contract registration.
- Electrostatic Discharge (ESD) safe packaging.
- Supports hot-swapping for zero-downtime maintenance.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this FG-601E-BDL-950-36, Fortinet FG-601E UTM Firewall, 3-Year 24x7 FortiCare, 3-Year UTP, Hardware included (FT:FG-601E-BDL-950-36) is 100% genuine OEM hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This FG-601E-BDL-950-36, Fortinet FG-601E UTM Firewall, 3-Year 24x7 FortiCare, 3-Year UTP, Hardware included includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the FG-601E-BDL-950-36, Fortinet FG-601E UTM Firewall, 3-Year 24x7 FortiCare, 3-Year UTP, Hardware included compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the FT:FG-601E-BDL-950-36.
