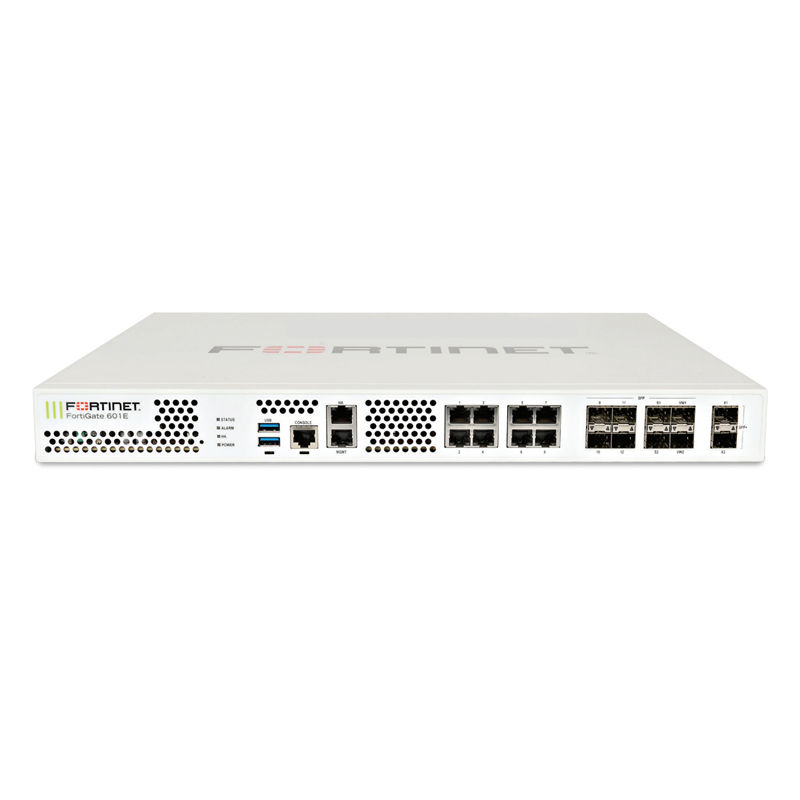

Brand: Fortinet · SKU: FG-601E · MPN: FG-601E · Category: Networking
The FortiGate 600E/601E series delivers next-generation firewall (NGFW) capabilities for mid-sized to large enterprises, with the flexibility to be deployed at the campus or enterprise branch. It protects against cyber threats with security processor-powered high performance, security efficacy, and deep visibility. The FG-601E model specifically includes 480 GB (2x 240 GB SSD) of internal onboard storage for logging, reporting, and WAN optimization. Powered by dedicated Security Processing Units (SPU NP6 and CP9), it provides industry-leading performance for SSL inspection and ultra-low latency. The appliance features a variety of high-speed interfaces including 10 GE SFP+ slots and multiple GE RJ45 and SFP ports to suit diverse networking requirements.
| Form Factor | Rack Mount, 1 RU |
|---|---|
| GE SFP Slots | 8 |
| GE RJ45 Ports | 10 (including MGMT and HA ports) |
| IPS Throughput | 10 Gbps |
| NGFW Throughput | 9.5 Gbps |
| Onboard Storage | 2x 240 GB SSD |
| 10 GE SFP+ Slots | 2 |
| Firewall Latency | 2 μs (64 byte UDP packets) |
| Firewall Policies | 10,000 |
| SSL-VPN Throughput | 7 Gbps |
| Concurrent Sessions | 8 Million (TCP) |
| Firewall Throughput | 36 Gbps |
| IPsec VPN Throughput | 20 Gbps |
| New Sessions per Second | 450,000 (TCP) |
| Power Consumption (Avg/Max) | 129 W / 244 W |
| Threat Protection Throughput | 7 Gbps |
| Virtual Domains (Default/Max) | 10 / 10 |
| Warranty | 1-Year Limited Hardware Warranty with options for FortiCare support extensions. |
| Weight | 16.6 lbs (7.5 kg) |
| Dimensions | 1.75 x 17.0 x 15.0 inches (44.45 x 432 x 380 mm) |
The FortiGate 601E is a high-performance security appliance designed for enterprise-grade protection. It leverages Fortinet's custom SPU technology to provide deep inspection of encrypted traffic without compromising network speed. With integrated internal storage, it is ideal for environments requiring local data retention and advanced security features like IPS, Application Control, and Web Filtering in a single compact chassis.
Yes, this Fortinet FortiGate 601E Next-Generation Firewall (FG-601E) is 100% genuine Fortinet hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
This Fortinet FortiGate 601E Next-Generation Firewall includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the FG-601E.
