Brand: Fortinet · SKU: FG-TRAN-SX · MPN: FG-TRAN-SX · Category: Networking

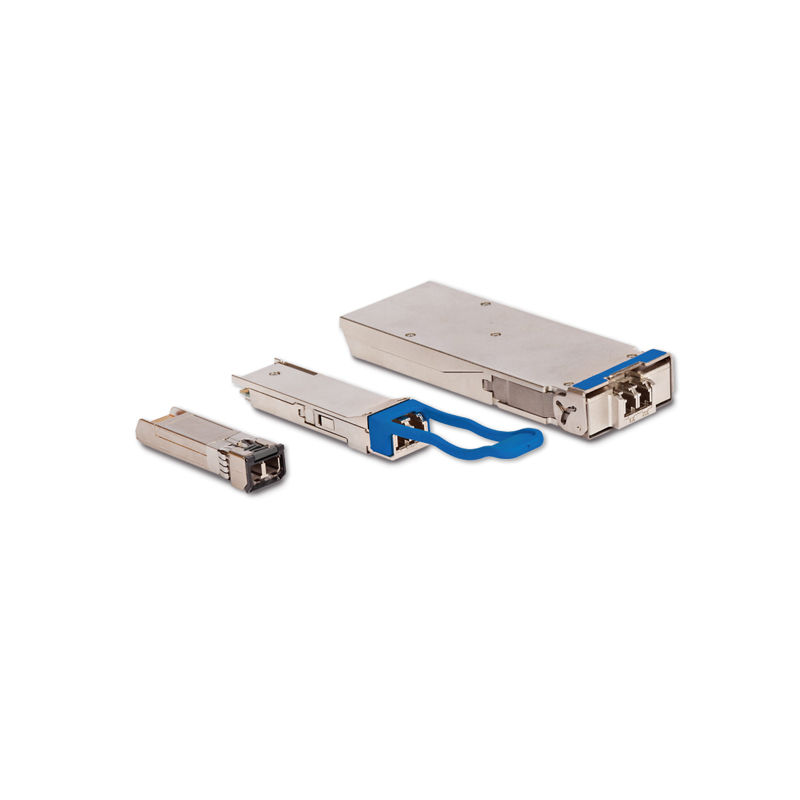

The Fortinet FG-TRAN-SX is a high-performance 1 Gigabit Ethernet (1 Gbps) Small Form-factor Pluggable (SFP) SX transceiver module. Designed for short-range data transmission over multi-mode fiber (MMF), it operates at a nominal wavelength of 850nm. This module supports transmission distances of up to 550 meters over 50/125µm (OM2/OM3) fiber and up to 220 meters over 62.5/125µm (OM1) fiber. It features a duplex LC connector and is hot-swappable, allowing for seamless installation and maintenance without disrupting network services. Fully compliant with IEEE 802.3z 1000Base-SX and SFP Multi-Source Agreement (MSA) standards, it is specifically tested for compatibility with Fortinet FortiGate, FortiSwitch, and other networking hardware platforms. Many versions include Digital Diagnostics Monitoring (DDM/DOM) to provide real-time operating parameters such as power, temperature, and voltage.
| Connector | Duplex LC |
|---|---|
| Data Rate | 1.25 Gbps |
| Interface | 1 GE SFP SX |
| Standards | IEEE 802.3z, SFP MSA, RoHS |
| Media Type | Multi-Mode Fiber (MMF) |
| Wavelength | 850 nm |
| Form Factor | SFP |
| Max Distance | 550 m |
| Power Consumption | < 1 W |
| Operating Temperature | 0°C to 70°C (Standard) |
| Warranty | Standard Fortinet Limited Warranty (typically 1 year or according to service contract) |
| Weight | 0.02 kg |
| Dimensions | 8.5 x 13.4 x 56.5 mm |
The Fortinet FG-TRAN-SX provides a reliable, cost-effective solution for 1GbE fiber connectivity in enterprise and data center environments. Its hot-pluggable design and broad compatibility with Fortinet equipment make it a standard choice for local area network uplinks.
Yes, this Fortinet FG-TRAN-SX 1 GE SFP SX Transceiver Module (FG-TRAN-SX) is 100% genuine Fortinet hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
This Fortinet FG-TRAN-SX 1 GE SFP SX Transceiver Module includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the FG-TRAN-SX.
