Brand: Fortinet · SKU: FG-TRAN-SFP+SR · MPN: FG-TRAN-SFP+SR · Category: Networking

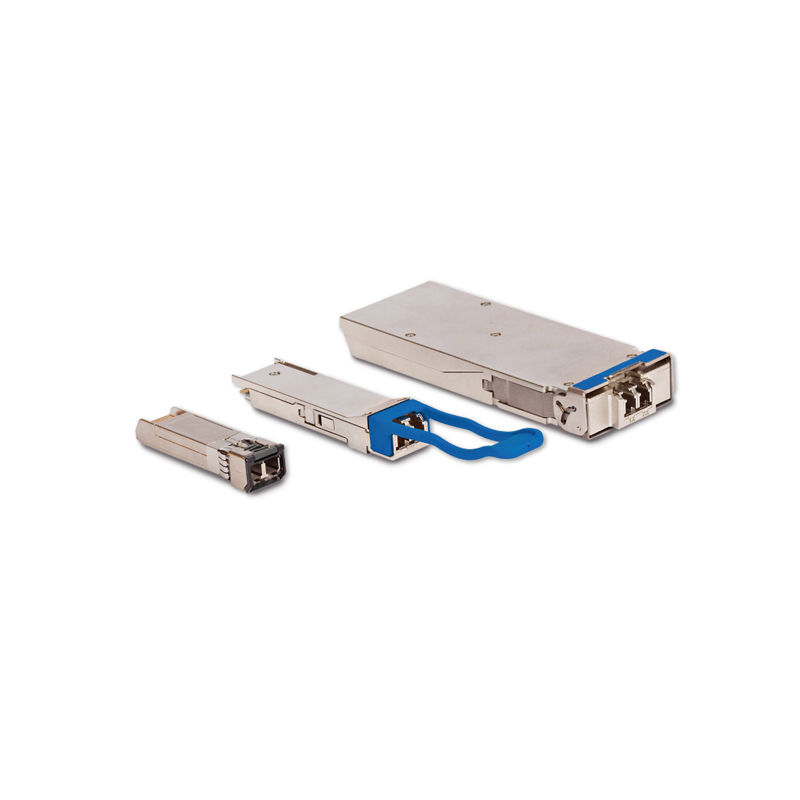

The Fortinet FG-TRAN-SFP+SR is a high-performance 10GBASE-SR SFP+ (Small Form-factor Pluggable Plus) transceiver module designed for short-range data transmission in high-speed 10 Gigabit Ethernet networks. Operating at a nominal wavelength of 850nm, this module supports a maximum link length of 300 meters over OM3 multimode fiber (MMF) and up to 400 meters over OM4 MMF. It features a duplex LC connector and is hot-pluggable, allowing for seamless installation and replacement without powering down the network equipment. The transceiver is equipped with Digital Optical Monitoring (DOM) support, providing real-time access to operating parameters such as temperature, laser bias current, transmitted optical power, and received optical power. It is compliant with SFP+ MSA (Multi-Source Agreement) standards and IEEE 802.3ae 10GBASE-SR specifications, ensuring broad compatibility with Fortinet FortiGate firewalls, FortiSwitch units, and other standard-compliant networking hardware.
| Connector | LC Duplex |
|---|---|
| Data Rate | 10 Gbps |
| Fiber Type | Multimode Fiber (MMF) |
| Wavelength | 850 nm |
| Form Factor | SFP+ |
| Max Distance | 300m (OM3) / 400m (OM4) |
| Receiver Type | PIN |
| Transmitter Type | VCSEL |
| Power Consumption | <1W |
| Operating Temperature | 0°C to 70°C (32 to 158°F) |
| Digital Monitoring (DOM/DDM) | Yes |
| Warranty | 1-Year Limited Warranty |
| Weight | 0.03 kg |
| Dimensions | 56.7 x 13.7 x 8.5 mm |
A reliable short-range 10G transceiver for high-speed connectivity within data centers and enterprise wiring closets, optimized for Fortinet hardware environments.
Yes, this Fortinet FG-TRAN-SFP+SR 10GBASE-SR SFP+ Transceiver Module (FG-TRAN-SFP+SR) is 100% genuine Fortinet hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
This Fortinet FG-TRAN-SFP+SR 10GBASE-SR SFP+ Transceiver Module includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the FG-TRAN-SFP+SR.
