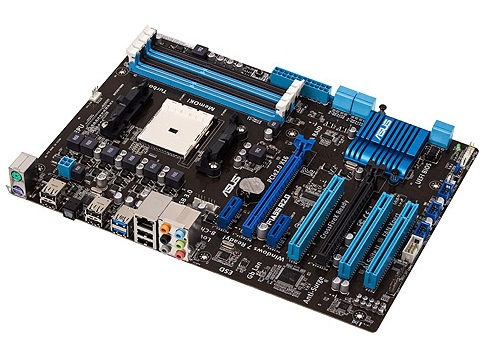

ASUS F1A55 R2.0 motherboard AMD A55 Socket FM1 ATX
Brand: ASUS · SKU: F1A55 R2.0 · MPN: F1A55 R2.0 · Category: Components
ASUS F1A55 R2.0, AMD, Socket FM1, AMD A, AMD E2, DDR3-SDRAM, 64 GB, DIMM. ASUS F1A55 R2.0 motherboard AMD A55 Socket FM1 ATX (part number F1A55 R2.0) is an enterprise components product available from Server Tech Central. Key specifications include depth 224 mm, width 305 mm, bios type UEFI, pci slots 3, audio chip Realtek ALC887, raid levels 0, 1, 10, JBOD, acpi version 2.0a, audio output 6. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 224 mm |
|---|---|
| Width | 305 mm |
| BIOS type | UEFI |
| PCI slots | 3 |
| Audio chip | Realtek ALC887 |
| RAID levels | 0, 1, 10, JBOD |
| ACPI version | 2.0a |
| Audio output | 6 |
| Cooling type | Passive |
| Ethernet LAN | Yes |
| Component for | PC |
| Graphics card | Radeon HD 6000 |
| Microphone in | Yes |
| LAN controller | Realtek RTL8111E |
| Trial software | Antivirus |
| Cables included | SATA |
| DirectX version | 11 |
| Memory channels | Dual-channel |
| S/PDIF out port | Yes |
| BIOS memory size | 64 Mbit |
| Bundled software | ASUS Utilities ASUS Update |
| Drivers included | Yes |
| Processor socket | Socket FM1 |
| CPU fan connector | Yes |
| Warranty | 3-Year Warranty |
| Dimensions | 305 mm x 224 mm |
Product Description
Hardware-ready for Windows 8 with Hybrid Digital Power Design - Network iControl - Real-time Network Bandwidth Control. - ASUS TurboV: Feel the adrenaline rush of real-time OC-now a reality. - UEFI BIOS - EZ Mode - Flexible & Easy BIOS Interface. - AI Suite II - One-stop Access to Innovative ASUS Features. - Multi-GPU CrossFireX Support! - Anti-Surge Protection: Protect Your Device - Windows 8 Ready – Assured Compatibility Instant OS Login ASUS has released new hardware and software designs to shorten system boot-up time to 2-seconds* for a smoother user experience that removes annoying delays under Windows 8, and even previous versions of Windows. Faster system boot and restart means Windows starts quicker and higher efficiency - No more waiting around. Multi-startup Options Thanks to ASUS Windows 8 hardware optimization, ASUS Boot Setting provides better flexibility in customizing your PCs startup process. You can enter the BIOS directly with one click through a user-friendly interface, and quickly select your preferred system boot up method: either get to the OS in seconds or opt for regular boot up. Whatever your choice, settings are saved and persistent, with no need to choose every time you power on. AMD® A-& E2- series Accelerated Processor with AMD Radeon™ HD 6000 Series Graphics This motherboard supports AMD® A-& E2- series Accelerated Processor with AMD Radeon™ HD 6000 Series Graphics. This revolutionary APU (Accelerated Processing Unit) combines processing power and advanced DirectX 11 graphics in one small, energy-efficient design to enable accelerated performance and an industry-leading visual experience. It features Dual-channel DDR3 memory support and accelerates data transfer rate up to 5GT/s AMD® A55 FCH(Hudson D2) AMD® A55 FCH (Hudson D2) is designed to support up to 5GT/s interface speed and PCI Express™ 2.0 x 16(at x4 speed)graphics. Hybrid DIGI+ VRM Hybrid DIGI+ VRM: Maximizing System Potential ASUS brings the exclusive Hybrid DIGI+ VRM design to great value motherboards to better serve a wider range of user needs. Based on technology developed for high performance ASUS products, Hybrid DIGI+ VRM on ASUS motherboards with the AMD A55 chipset allows APU voltage and VRM frequency adjustments via smart preset modes and user-defined profiles. The unique design offers a broad range of adjustable power options to create more headroom for flexible system tuning. Boosted by world-renowned ASUS quality, it creates an all-round platform for a diverse range of applications, including gaming, multimedia, and productivity, all with improved multitasking. Energy Efficiency All Around Tap into the world's first real-time PC power saving chip through a simple onboard switch or AI Suite II utility. Get total system-wide energy optimization by automatically detecting current PC loadings and intelligently moderating power consumption. This also reduces fan noise and extends component longevity! One stop Access to Innovative ASUS Features With its user-friendly interface, ASUS AI Suite II consolidates all the exclusive ASUS features into one simple to use software package. It allows users to supervise Overclocking, energy management, fan speed control, voltage and sensor readings. This all-in-one software offers diverse and ease to use functions, with no need to switch back and forth between different utilities.
Key Features
ASUS F1A55 R2.0. Processor manufacturer: AMD, Processor socket: Socket FM1, Compatible processor series: AMD A, AMD E2. Supported memory types: DDR3-SDRAM, Maximum internal memory: 64 GB, Memory slots type: DIMM. Supported storage drive interfaces: SATA II, RAID levels: 0, 1, 10, JBOD. Parallel processing technology support: 2-Way CrossFireX, Graphics card: Radeon HD 6000. Ethernet interface type: Gigabit Ethernet, LAN controller: Realtek RTL8111E
Frequently Asked Questions
Is this product genuine OEM?
Yes, this ASUS F1A55 R2.0 motherboard AMD A55 Socket FM1 ATX (F1A55 R2.0) is 100% genuine ASUS hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This ASUS F1A55 R2.0 motherboard AMD A55 Socket FM1 ATX includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the ASUS F1A55 R2.0 motherboard AMD A55 Socket FM1 ATX compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the F1A55 R2.0.
