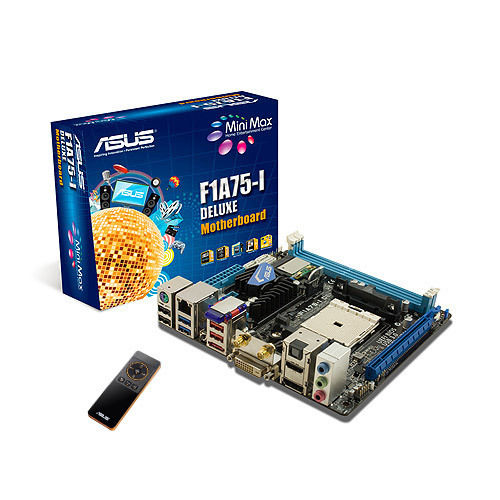

ASUS F1A75-I Deluxe AMD A75 FCH Socket FM1 mini ITX
Brand: ASUS · SKU: 90-MIBGQ0-G0EAY0DZ · MPN: 90-MIBGQ0-G0EAY0DZ · Category: Components
ASUS F1A75-I Deluxe, AMD, Socket FM1, AMD A, AMD E2, DDR3-SDRAM, 32 GB, Dual-channel. ASUS F1A75-I Deluxe AMD A75 FCH Socket FM1 mini ITX (part number 90-MIBGQ0-G0EAY0DZ) is an enterprise components product available from Server Tech Central. Key specifications include depth 170 mm, width 170 mm, bios type UEFI, bluetooth Yes, audio chip Realtek ALC892, raid levels 0, 1, 10, JBOD, acpi version 2.0a, component for PC. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 170 mm |
|---|---|
| Width | 170 mm |
| BIOS type | UEFI |
| Bluetooth | Yes |
| Audio chip | Realtek ALC892 |
| RAID levels | 0, 1, 10, JBOD |
| ACPI version | 2.0a |
| Component for | PC |
| Graphics card | Radeon HD 6000 |
| Microphone in | Yes |
| LAN controller | Realtek RTL8111E |
| Cables included | SATA |
| DirectX version | 11 |
| Memory channels | Dual-channel |
| S/PDIF out port | Yes |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| BIOS memory size | 32 Mbit |
| Drivers included | Yes |
| Processor socket | Socket FM1 |
| CPU fan connector | Yes |
| Clear CMOS button | Yes |
| Clear CMOS jumper | Yes |
| Headphone outputs | 1 |
| Power source type | ATX |
| Warranty | 3-Year Warranty |
| Dimensions | 170 mm x 170 mm |
Product Description
This motherboard supports AMD® A-& E2- series Accelerated Processor with AMD Radeon™ HD 6000 Series Graphics. This revolutionary APU (Accelerated Processing Unit) combines processing power and advanced DirectX 11 graphics in one small, energy-efficient design to enable accelerated performance and an industry-leading visual experience. It features Dual-channel DDR3 memory support and accelerates data transfer rate up to 5GT/s. AMD® A75 FCH (Hudson D3) is designed to support up to 5GT/s interface speed and PCI Express™ 2.0 x 16(at x4 speed)graphics. It supports 6 x SATA6Gb/s ports and 4 x USB 3.0 Ports. The AMD® A75 FCH natively supports next-generation Serial ATA (SATA) storage interface, this motherboard delivers up to 6.0 Gb/s data transfer rates. Additionally, get enhanced scalability, faster data retrieval, double the bandwidth of current bus systems. Experience ultra-fast data transfer at 4.8Gbps with USB 3.0 – the latest connectivity standard. Built to connect easily with next-generation components and peripherals, USB 3.0 transfers data 10 times faster and is also backward compatible with USB 2.0 components. The world’s first Dual Intelligent Processors from ASUS pioneered the use of two onboard chips - TPU (TurboV Processing Unit) and EPU (Energy Processing Unit). Its new generation of Dual Intelligent Processors 2 with DIGI+ VRM launches power delivery into a digital standard with a programmable microprocessor that perfectly serves power signal, eliminating digital-to-analog conversion lag. It’s the most precise power delivery available providing the best in class power efficiency, greater performance, and rock solid stability. With ASUS DIGI+ VRM, users can easily adjust power phase performance and system voltages via diverse settings to maximize overall performance and overclocking potential.
Key Features
ASUS F1A75-I Deluxe. Processor manufacturer: AMD, Processor socket: Socket FM1, Compatible processor series: AMD A, AMD E2. Supported memory types: DDR3-SDRAM, Maximum internal memory: 32 GB, Memory channels: Dual-channel. Supported storage drive interfaces: SATA III, RAID levels: 0, 1, 10, JBOD. Maximum graphics card memory: 2048 MB, Graphics card: Radeon HD 6000. Ethernet interface type: Fast Ethernet, Gigabit Ethernet, LAN controller: Realtek RTL8111E, Wi-Fi standards: 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Frequently Asked Questions
Is this product genuine OEM?
Yes, this ASUS F1A75-I Deluxe AMD A75 FCH Socket FM1 mini ITX (90-MIBGQ0-G0EAY0DZ) is 100% genuine ASUS hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This ASUS F1A75-I Deluxe AMD A75 FCH Socket FM1 mini ITX includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the ASUS F1A75-I Deluxe AMD A75 FCH Socket FM1 mini ITX compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the 90-MIBGQ0-G0EAY0DZ.
