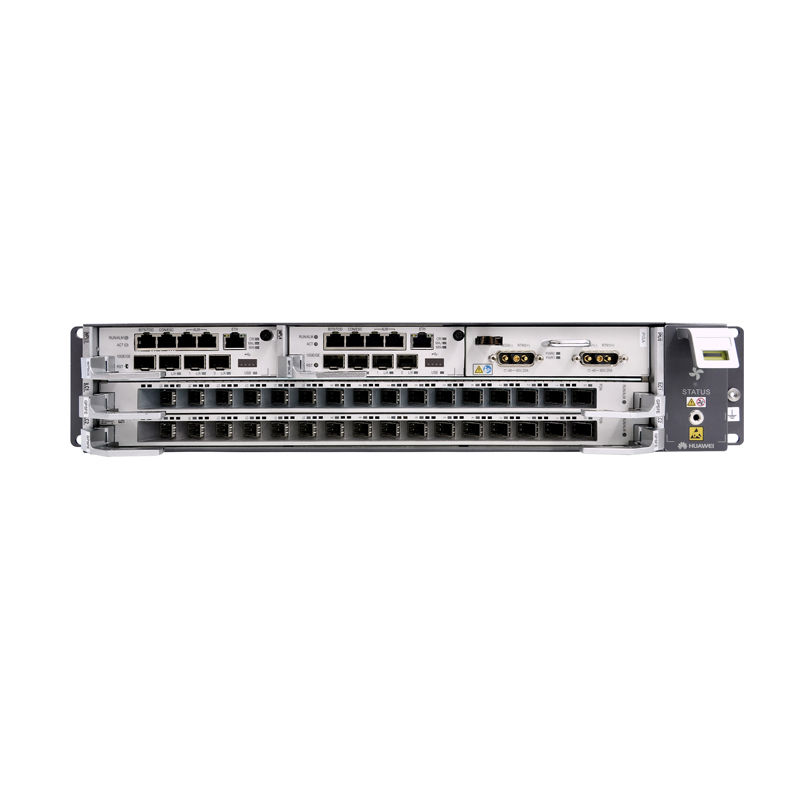

EA5800-X2, Huawei SmartAX Series OLT, 2 Service Slots/Small Capacity
SKU: EA5800-X2 · MPN: EA5800-X2 · Category: Components
Huawei SmartAX EA5800-X2, small-capacity, supports 2 service slots
Specifications
| Altitude | 4,000m. The air density varies with altitude and will affect the heat dissipation of a device. Therefore, the working environment temperature of the EA5800 varies with altitude. |
|---|---|
| 10 GE Ports | 16 |
| GE/FE Ports | 96 |
| Rated voltage | DC power supply: -48V/-60V AC power supply: 110V/220V |
| Ambient Humidity | 5% RH to 95% RH |
| Power Supply Modes | DC power support (dual for backup) AC power supply + battery for backup |
| Supported Cabinets | N63E-22 |
| Ambient Temperature | -40°C to 65°C*. The EA5800 can start up at temperatures as low as -25°C. Note: The 65°C temperature refers to the highest temperature measured at the air intake vent of service subrack. |
| Board Configuration | Control board slots: 3, 4 Service board or upstream interface board slots: 1 to 2 Does not support universal interface board Power board slot: 0 |
| Atmospheric Pressure | 70 kPa to 106 kPa |
| Maximum Input Current | DC power supply: 20A AC power supply: 8A |
| Working Voltage Range | DC power supply: -38.4V to -72V AC power supply: 100V to 240V |
| Dimensions (W x D x H) | 2U high and 19 inches wide Excluding mounting brackets: 442 mm x 268.7 mm x 88.1 mm Including IEC mounting brackets: 482.6 mm x 268.7 mm x 88.1 mm Including ETSI mounting brackets: 535 mm x 268.7 mm x 88.1 mm |
| Switching/Forwarding Delay | Short forwarding delay: The 100 Mbit/s Ethernet port sends 64-byte Ethernet packets at a delay shorter than 20 μs. |
| GPON Ports/ XG(S)-PON Ports | 32 |
| Maximum Number of MAC Addresses | 262,143 |
| Bit Error Rate (BER) in full load | A BER smaller than 10e-7 for a port that transmits data in full load. |
| System Reliability Specifications | System availability for typical configurations: > 99.999% Mean-Time-Between-Failures (MTBF): About 45 years. Note: Due to different network environments and different boards used by devices, the preceding MTBF (45 years) of the EA5800 is only for reference. The average repair time for Field Replaceable Units (FRUs) is about 2 hours. The preceding values are only for reference. For details, please contact the relevant Huawei engineers. |
| Maximum Number of ARP/Routing Entries | 131,072 |
| Maximum Number of Concurrent 4K Video Users | 2,000 |
| Maximum Bandwidth per Service Slot (load sharing mode) | 80 Gbit/s |
| System Layer 2 Packet Forwarding Rate (load sharing mode) | 714 Mpps |
| Switching Capacity of the Control Board (load sharing mode) | 480 Gbit/s |
| Warranty | 3-Year Warranty |
Key Features
- OEM Genuine Component verified by certified technicians.
- Clean serial number ready for service contract registration.
- Electrostatic Discharge (ESD) safe packaging.
- Supports hot-swapping for zero-downtime maintenance.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this EA5800-X2, Huawei SmartAX Series OLT, 2 Service Slots/Small Capacity (EA5800-X2) is 100% genuine OEM hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This EA5800-X2, Huawei SmartAX Series OLT, 2 Service Slots/Small Capacity includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the EA5800-X2, Huawei SmartAX Series OLT, 2 Service Slots/Small Capacity compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the EA5800-X2.
