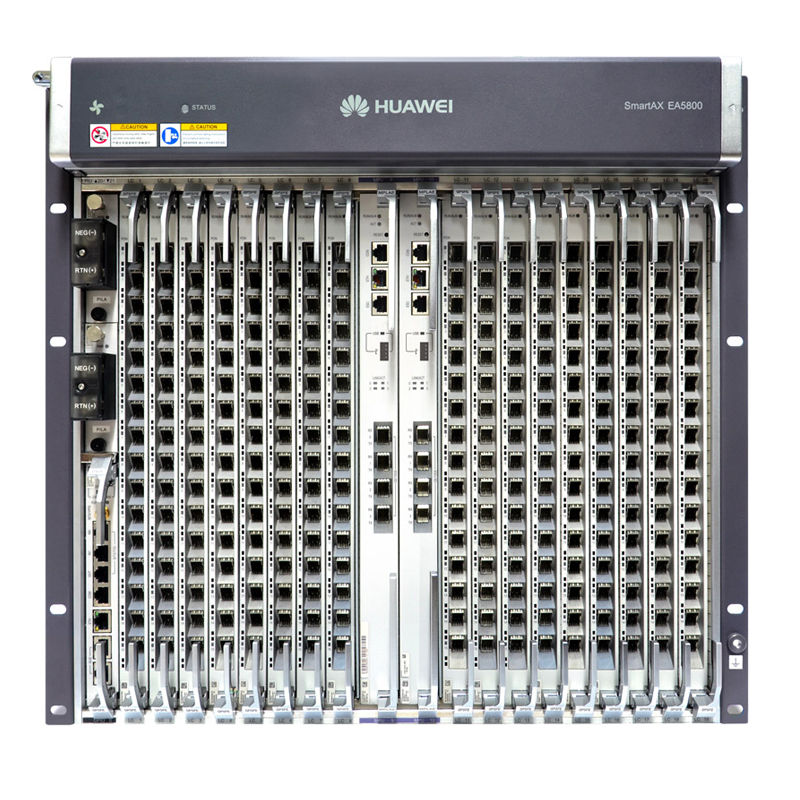

EA5800-X17, Huawei SmartAX EA5800 Series OLT, 17 service slots/large-capacity/ETSI

SKU: EA5800-X17 · MPN: EA5800-X17 · Category: Components

EA5800-X17, Huawei SmartAX EA5800 Series OLT, 17 service slots/large-capacity/ETSI
Request for Quote
In Stock • 10 units

Huawei SmartAX EA5800-X17, large-capacity, ETSI, supports 17 service slots

View Components Products

Specifications

Altitude4,000m. The air density varies with altitude and will affect the heat dissipation of a device. Therefore, the working environment temperature of the EA5800 varies with altitude.
10 GE Ports408
GE/FE Ports816
Rated voltage-48V/-60V
Ambient Humidity5% RH to 95% RH
Power Supply ModesDC power support (dual for backup)
Supported CabinetsN63E-22
Ambient Temperature-40°C to 65°C*. The EA5800 can start up at temperatures as low as -25°C. Note: The 65°C temperature refers to the highest temperature measured at the air intake vent of service subrack.
Board ConfigurationControl board slots: 9, 10 Service board or upstream interface board slots: 1 to 8, 11 to 19 Universal interface board slot: 0 Power board slots: 20, 21
Atmospheric Pressure70 kPa to 106 kPa
Maximum Input Current60A
Working Voltage Range-38.4V to -72V DC
Dimensions (W x D x H)11U high and 21 inches wide Excluding mounting brackets: 493 mm x 287 mm x 486 mm Including mounting brackets: 535 mm x 287 mm x 486 mm
Switching/Forwarding DelayShort forwarding delay: The 100 Mbit/s Ethernet port sends 64-byte Ethernet packets at a delay shorter than 20 μs.
GPON Ports/ XG(S)-PON Ports272
Maximum Number of MAC Addresses262,143
Bit Error Rate (BER) in full loadA BER smaller than 10e-7 for a port that transmits data in full load.
System Reliability SpecificationsSystem availability for typical configurations: > 99.999% Mean-Time-Between-Failures (MTBF): About 45 years. Note: Due to different network environments and different boards used by devices, the preceding MTBF (45 years) of the EA5800 is only for reference. The average repair time for Field Replaceable Units (FRUs) is about 2 hours. The preceding values are only for reference. For details, please contact the relevant Huawei engineers.
Maximum Number of ARP/Routing Entries131,072
Maximum Number of Concurrent 4K Video Users16,000
Maximum Bandwidth per Service Slot (load sharing mode)100 Gbit/s
System Layer 2 Packet Forwarding Rate (load sharing mode)5,298 Mpps
Switching Capacity of the Control Board (load sharing mode)3.6 Tbit/s
Warranty3-Year Warranty

Key Features

  • OEM Genuine Component verified by certified technicians.
  • Clean serial number ready for service contract registration.
  • Electrostatic Discharge (ESD) safe packaging.
  • Supports hot-swapping for zero-downtime maintenance.

Frequently Asked Questions

Is this product genuine OEM?

Yes, this EA5800-X17, Huawei SmartAX EA5800 Series OLT, 17 service slots/large-capacity/ETSI (EA5800-X17) is 100% genuine OEM hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.

What warranty is included?

This EA5800-X17, Huawei SmartAX EA5800 Series OLT, 17 service slots/large-capacity/ETSI includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.

How long does shipping take?

We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.

Can I return this product?

Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.

Is the EA5800-X17, Huawei SmartAX EA5800 Series OLT, 17 service slots/large-capacity/ETSI compatible with my system?

Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the EA5800-X17.
