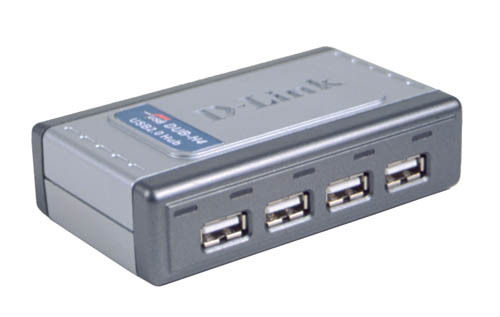

D-Link Hi-Speed USB 2.0 4-Port Hub
Brand: D-Link · SKU: DUB-H4/B · MPN: DUB-H4/B · Category: Components
D-Link Hi-Speed USB 2.0 4-Port Hub, USB 1.x or USB 2.0 support , Windows XP/ME/2000/98 Mac OS X, 105 mm, 160 mm, 94 mm, 380.5 g. D-Link Hi-Speed USB 2.0 4-Port Hub (part number DUB-H4/B) is an enterprise components product available from Server Tech Central. Key specifications include i/o ports 1x upstream USB Type "B" receptacle 4x downstream USB Type "A" receptacles, interface USB, package depth 160 mm, package width 105 mm, package height 94 mm, package weight 380.5 g, dimensions (wxdxh) 99.6 x 59.5 x 25.7 mm, pallet gross width 110 cm. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| I/O ports | 1x upstream USB Type "B" receptacle 4x downstream USB Type "A" receptacles |
|---|---|
| Interface | USB |
| Package depth | 160 mm |
| Package width | 105 mm |
| Package height | 94 mm |
| Package weight | 380.5 g |
| Dimensions (WxDxH) | 99.6 x 59.5 x 25.7 mm |
| Pallet gross width | 110 cm |
| Power requirements | Self Powered -12.6W, 2.1 A @ 5 VDC |
| Pallet gross length | 120 cm |
| Pallet height (air) | 136 cm |
| Pallet height (sea) | 185 cm |
| Pallet gross weight (air) | 269.9 kg |
| Pallet gross weight (sea) | 368.5 kg |
| Products per pallet (air) | 600 pc(s) |
| Products per pallet (sea) | 840 pc(s) |
| Minimum system requirements | USB 1.x or USB 2.0 support |
| Operating temperature (T-T) | 0 - 40 °C |
| Shipping (inner) case width | 33.2 cm |
| Compatible operating systems | Windows XP/ME/2000/98 Mac OS X |
| Shipping (inner) case height | 24.4 cm |
| Shipping (inner) case length | 49 cm |
| Compliance industry standards | OHCI, EHCI |
| Shipping (inner) case net weight | 4 kg |
| Warranty | 3-Year Warranty |
Product Description
The D-Link DUB-H4 2.0 is a Hi-Speed Universal Serial Bus 2.0 4-port hub with backward compatibility to USB 1.0 and 1.1. It provides an out of the box industry standard that allows connection of up to four USB peripherals or devices to your USB ready PC or Mac. The D-Link DUB-H4 is targeted at PC and Mac users that are expanding the number of USB ports on their system. The D-Link DUB-H4 2.0 is designed to provide quick and easy access to the four type "A" downstream ports for connecting USB peripherals, devices or other USB hubs. A single type "B" upstream port connects the DUB-H4 to the host computer, or another USB hub enabling up to 127 devices to be connected by cascading multiple hubs. Configured directly by the operating system, the D-Link DUB-H4 2.0 operates seamlessly with both Microsoft Windows and Apple Macintosh Operating Systems. As a standard USB hub, the D-Link DUB-H4 buffers USB data from any attached peripheral in compliance with USB specifications to provide an invisible extension of the USB bus. Supporting both low speed (1.5 Mbps and 12Mbps**) and Hi-speed (480 Mbps*) devices, each port creates a bridge between the peripheral and host computer. Diagnostic LED's located on the top of the device provide power state (self-power) and port status on each port. The DUB-H4 2.0 is packaged with all necessary documentation, a 6-foot hi-speed USB 2.0 'A' to 'B' cable and an AC power supply to ensure that the user is able to easily and quickly install and use the device.
Key Features
D-Link Hi-Speed USB 2.0 4-Port Hub. Minimum system requirements: USB 1.x or USB 2.0 support , Compatible operating systems: Windows XP/ME/2000/98 Mac OS X. Package width: 105 mm, Package depth: 160 mm, Package height: 94 mm. Pallet gross weight (air): 269.9 kg, Master (outer) cases per pallet (air): 30 pc(s), Products per pallet (air): 600 pc(s). Interface: USB, Dimensions (WxDxH): 99.6 x 59.5 x 25.7 mm, Compliance industry standards: OHCI, EHCI. I/O ports: 1x upstream USB Type "B" receptacle 4x downstream USB Type "A" receptacles
Frequently Asked Questions
Is this product genuine OEM?
Yes, this D-Link Hi-Speed USB 2.0 4-Port Hub (DUB-H4/B) is 100% genuine D-Link hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This D-Link Hi-Speed USB 2.0 4-Port Hub includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the D-Link Hi-Speed USB 2.0 4-Port Hub compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the DUB-H4/B.
