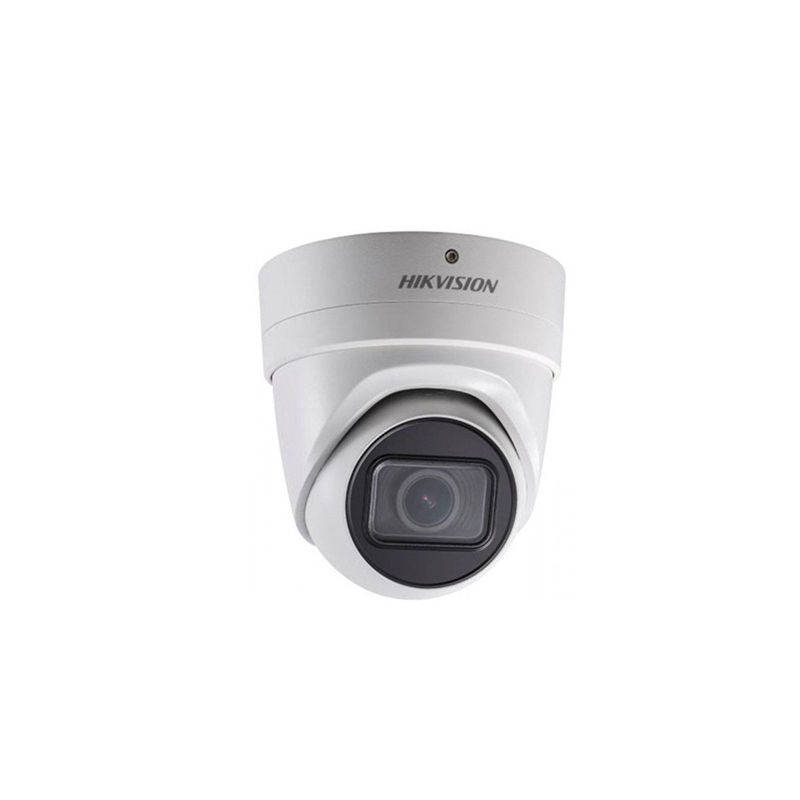

DS-2CD1H43G0-IZ, Hikvision Network Camera, 4MP Max Resolution/H.265+/Motorized VF 2.8-12mm
SKU: DS-2CD1H43G0-IZ · MPN: DS-2CD1H43G0-IZ · Category: Security
4MP Max Resolution, H.265+ Codec, 30m IR, IP67 Protection, Motorized VF f2.8-12mm lens, DWDR, DC12V & PoE, 128GB TF Card Slot, Support mobile monitoring via HikConnect
Specifications
| API | Open Network Video Interface, ISAPI |
|---|---|
| Alarm | -S: 1 input,1 output, max. 12 VDC, 30 mA |
| Audio | -S: 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 K Ω, interface type: non-equilibrium 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium |
| Model | DS-2CD1H43G0-IZ |
| Client | iVMS-4200, Hik-Connect |
| Linkage | Upload to FTP, notify surveillance center, send email, upload to memory card, trigger recording, trigger capture |
| Aperture | F1.6 |
| Material | Cover: plastic, main body: metal |
| Iris Type | Fixed |
| Lens Type | Varifocal Lens, motoried lens, 2.8 to 12 mm |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP ™, SMTP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS |
| Reset Key | Yes |
| User/Host | Up to 32 users. 3 levels: administrator, operator and user |
| H.264 Type | Baseline Profile/Main Profile/High Profile |
| H.265 Type | Main Profile |
| Lens Mount | Ø14 |
| Sub Stream | 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360) |
| Basic Event | Motion detection, video tampering alarm, exception |
| Day & Night | IR Cut Filter |
| Main Stream | 50 Hz: 20 fps (2560 × 1440) 25 fps (2304 × 1296, 1920 × 1080, 1280 × 720) 60 Hz: 20 fps (2560 × 1440) 30 fps (2304 × 1296, 1920 × 1080, 1280 × 720) |
| Web Browser | Plug-in required live view: IE 10+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+ Local service: Chrome 57.0+, Firefox 52.0+ |
| Shutter Time | 1/3 s to 1/100,000 s |
| IR Wavelength | 850 nm |
| Audio Bit Rate | -S: 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC) |
| Warranty | 3-Year Warranty |
Key Features
- OEM Genuine Component verified by certified technicians.
- Clean serial number ready for service contract registration.
- Electrostatic Discharge (ESD) safe packaging.
- Supports hot-swapping for zero-downtime maintenance.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this DS-2CD1H43G0-IZ, Hikvision Network Camera, 4MP Max Resolution/H.265+/Motorized VF 2.8-12mm (DS-2CD1H43G0-IZ) is 100% genuine OEM hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This DS-2CD1H43G0-IZ, Hikvision Network Camera, 4MP Max Resolution/H.265+/Motorized VF 2.8-12mm includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the DS-2CD1H43G0-IZ, Hikvision Network Camera, 4MP Max Resolution/H.265+/Motorized VF 2.8-12mm compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the DS-2CD1H43G0-IZ.
