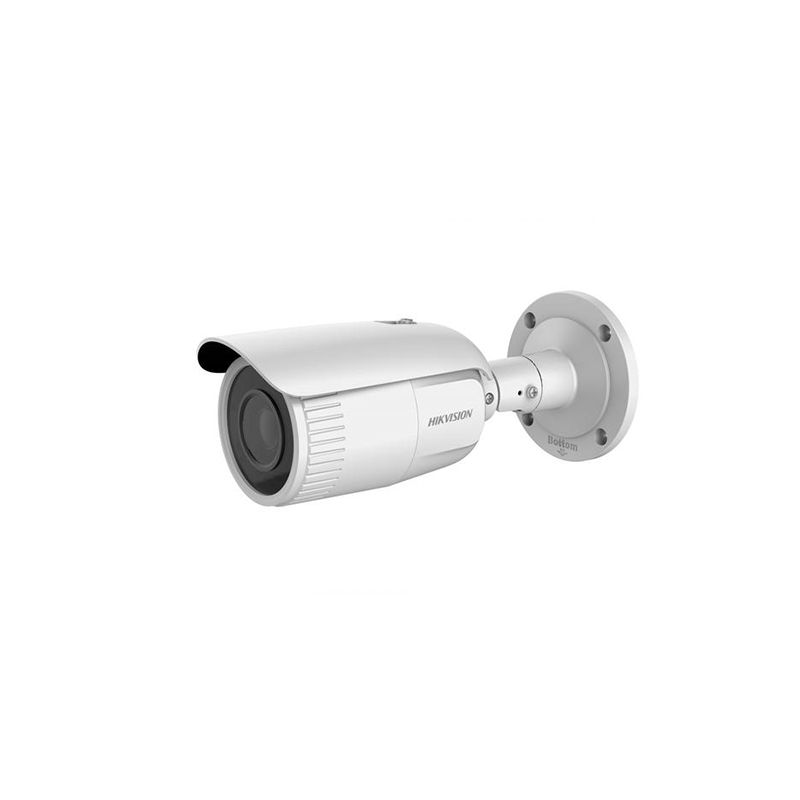

DS-2CD1643G0-IZ, Hikvision DS-2CD1643G0 Series Network Camera, 4MP Max Resolution/H.265+ Codec/30m IR
SKU: DS-2CD1643G0-IZ · MPN: DS-2CD1643G0-IZ · Category: Security
4MP Max Resolution, H.265+ Codec, 30m IR, IP67 Protection, Motorized VF f2.8-12mm lens, DWDR, DC12V & PoE, 128GB TF Card Slot, Support mobile monitoring via HikConnect
Specifications
| API | ONVIF (PROFILE S, PROFILE G), ISAPI |
|---|---|
| FOV | Horizontal field of view: 98°to 28° |
| WDR | 120 dB |
| Focus | Auto |
| Client | iVMS-4200, Hik-Connect, iVMS-5200 |
| H.264+ | Main stream supports |
| H.265+ | Main stream supports |
| Aperture | F1.6 |
| IR Range | Up to 30 m |
| Auto-Iris | No |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP™, SMTP, IGMP, Specification Available Models DS-2CD1643G0-I (2.8 mm to 12 mm), DS-2CD1643G0-IZ (2.8 mm to 12 mm) 802.1X, QoS, IPv6, UDP, Bonjour |
| User/Host | Up to 32 users |
| Day &Night | IR cut filter |
| Dimensions | 105 mm × 105 mm × 145 mm (4.1" × 4.1" × 5.7") |
| H.264 Type | Baseline Profile/Main Profile/High Profile |
| H.265 Type | Main Profile |
| Lens Mount | Φ14 |
| Sub-stream | 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240) |
| Wavelength | 850 nm |
| Main Stream | 50Hz: 20fps (2560 × 1440), 25fps (2304 × 1296, 1920 × 1080, 1280 × 720) |
| Web Browser | IE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+ |
| Focal Length | 2.8 to 12 mm |
| Power Supply | 12 VDC ± 20%, 5.5 mm coaxial power plug |
| Reset Button | Yes |
| Warranty | 3-Year Warranty |
Key Features
- OEM Genuine Component verified by certified technicians.
- Clean serial number ready for service contract registration.
- Electrostatic Discharge (ESD) safe packaging.
- Supports hot-swapping for zero-downtime maintenance.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this DS-2CD1643G0-IZ, Hikvision DS-2CD1643G0 Series Network Camera, 4MP Max Resolution/H.265+ Codec/30m IR (DS-2CD1643G0-IZ) is 100% genuine OEM hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This DS-2CD1643G0-IZ, Hikvision DS-2CD1643G0 Series Network Camera, 4MP Max Resolution/H.265+ Codec/30m IR includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the DS-2CD1643G0-IZ, Hikvision DS-2CD1643G0 Series Network Camera, 4MP Max Resolution/H.265+ Codec/30m IR compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the DS-2CD1643G0-IZ.
