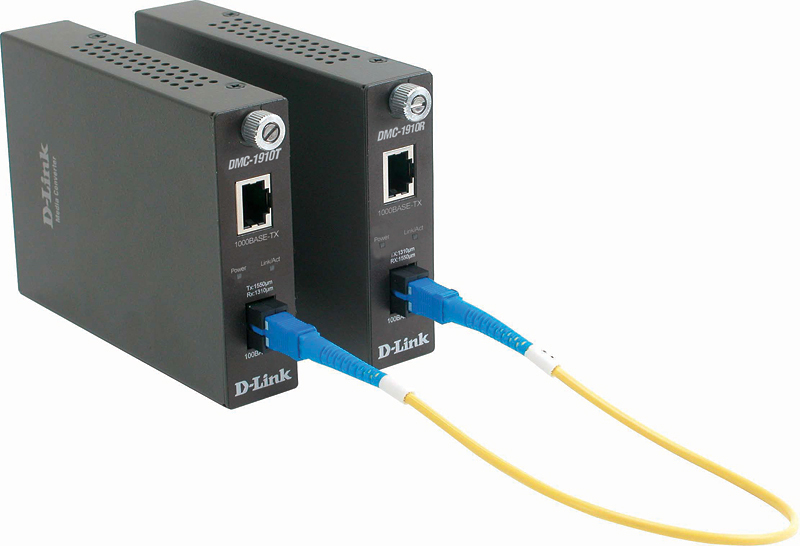

D-Link DMC-1910 network media converter 1000 Mbit/s 1550 nm Single-mode
Brand: D-Link · SKU: DMC-1910 · MPN: DMC-1910 · Category: Components
D-Link DMC-1910, 1000 Mbit/s, 1000Base-T, 1000Base-LX, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3z, Full, 15000 m
Specifications
| Manual | Yes |
|---|---|
| Hot-swap | Yes |
| Internal | No |
| User guide | Yes |
| Wavelength | 1550 nm |
| Certification | FCC, VCCI, CE, C-Tick |
| Duplex system | Full |
| Dimensions (WxDxH) | 88 x 120 x 25 mm |
| Fiber mode structure | Single-mode |
| Fiber ports quantity | 1 |
| Networking standards | IEEE 802.3ab, IEEE 802.3x, IEEE 802.3z |
| Fiber optic connector | SC |
| External power adapter | Yes |
| Connectivity technology | Wired |
| Converter input interface | 1000Base-T |
| Maximum transfer distance | 15000 m |
| Storage temperature (T-T) | -10 - 70 °C |
| Converter output interface | 1000Base-LX |
| Ethernet LAN (RJ-45) ports | 1 |
| Maximum data transfer rate | 1000 Mbit/s |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Warranty | 3-Year Warranty |
Product Description
Gigabit Media Converter The D-Link DMC-1910 Fiber Media Converter converts 1000BASE-T copper Gigabit signals to 1000BASE-LX fiber Gigabit signals. This allows you to connect longer distance fiber cables between two devices that are designed only for shorter distance Cat. 5 twisted-pair cable. The DMC-1910 media converter combines transmitting and receiving signals onto one fiber strand using two wavelengths. This design avoids the budget losses incurred by the single-wavelength single-fiber technology, and minimizes any possibility of reflections in the system. The DMC-1910 consists of two units. One unit uses one wavelength to transmit and a second wavelength to receive, while the other flips that relationship. Two different types of transmitting wavelength are supported: one bi-directional wavelength for both transmission and reception. Both units of the DMC-1910 media converter are encased in a solid metal housing with LED status indicators. The DMC-1910 can be used as stand-alone converter, or installed in a DMC-1000 chassis. In case you install it in the chassis, you will remove the metal cases of the two units and slide in their PC boards into the chassis slots. The chassis's power supply will be used instead of the media converters' own AC to DC power adapter. The media converter is hot swappable when used with the chassis.
Key Features
D-Link DMC-1910. Maximum data transfer rate: 1000 Mbit/s, Converter input interface: 1000Base-T, Converter output interface: 1000Base-LX. Maximum transfer distance: 15000 m, Wavelength: 1550 nm, Fiber mode structure: Single-mode. Fiber optic connector: SC, Connectivity technology: Wired. Certification: FCC, VCCI, CE, C-Tick. Dimensions (WxDxH): 88 x 120 x 25 mm
