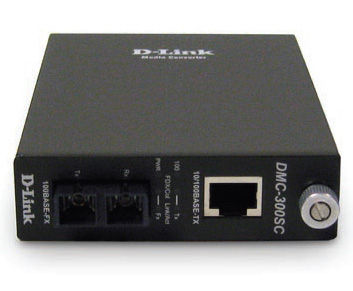

D-Link DMC-300SC network media converter
Brand: D-Link · SKU: DMC-300SC/E · MPN: DMC-300SC/E · Category: Components
D-Link DMC-300SC, 10Base-T, 100BASE-T, 100Base-FX, LAN, 7.2 W, 300 g, 0 - 40 °C, -25 - 70 °C
Specifications
| Weight | 300 g |
|---|---|
| Interface | RJ-45, SC |
| Cable type | UTP Cat. 3, 4, 5; 62.5/125μm MM Fiber; 10/125μm SM Fiber |
| Full duplex | Yes |
| Certification | FCC Class B, VCCI Class B, CE Class B |
| Package depth | 274 mm |
| Package width | 208 mm |
| LED indicators | LAN |
| Package height | 68 mm |
| Package weight | 769 g |
| Cabling technology | 10Base-T, 100BASE-T, 100Base-FX |
| Dimensions (WxDxH) | 89 x 119 x 25 mm |
| Pallet gross width | 120 cm |
| Power requirements | 7.5V, 1.5A |
| Pallet gross length | 110 cm |
| Pallet height (air) | 194.3 cm |
| Pallet height (sea) | 194.3 cm |
| Pallet gross weight (air) | 391 kg |
| Pallet gross weight (sea) | 391 kg |
| Products per pallet (air) | 440 pc(s) |
| Products per pallet (sea) | 440 pc(s) |
| Storage temperature (T-T) | -25 - 70 °C |
| Harmonized System (HS) code | 85176990 |
| Operating temperature (T-T) | 0 - 40 °C |
| Warranty | 3-Year Warranty |
| Weight | 300 g |
Product Description
Designed to convert 10BASE-T/100BASE-TX copper to 100Base-FX fiber media and vice versa, the DMC-300SC offers conversion from fiber to copper to minimize cost and extend hauls. The DMC-300SC by D-Link® is a media converter designed to connect 10BASE-T/100BASE-TX copper to 100Base-FX fiber media and vice versa. Based on the IEEE 802.3 and 802.3u standards, the DMC-300SC is designed for use with multimode fiber cable utilizing the SC-Type connector. The DMC-300SC supports shortwave (SX) laser specifications at a full wire-speed forwarding rate. Other features of this module include the ability to be used as a standalone device (no chassis required), Auto MDI/MDI-X, Auto negotiation of speeds and duplex modes on twisted-pair port, and front panel status LEDs. The DMC-300SC will transmit at extended
Key Features
D-Link DMC-300SC. Cabling technology: 10Base-T, 100BASE-T, 100Base-FX. LED indicators: LAN. Power consumption (typical): 7.2 W. Weight: 300 g. Package width: 208 mm, Package depth: 274 mm, Package height: 68 mm
Frequently Asked Questions
Is this product genuine OEM?
Yes, this D-Link DMC-300SC network media converter (DMC-300SC/E) is 100% genuine D-Link hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This D-Link DMC-300SC network media converter includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the D-Link DMC-300SC network media converter compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the DMC-300SC/E.
