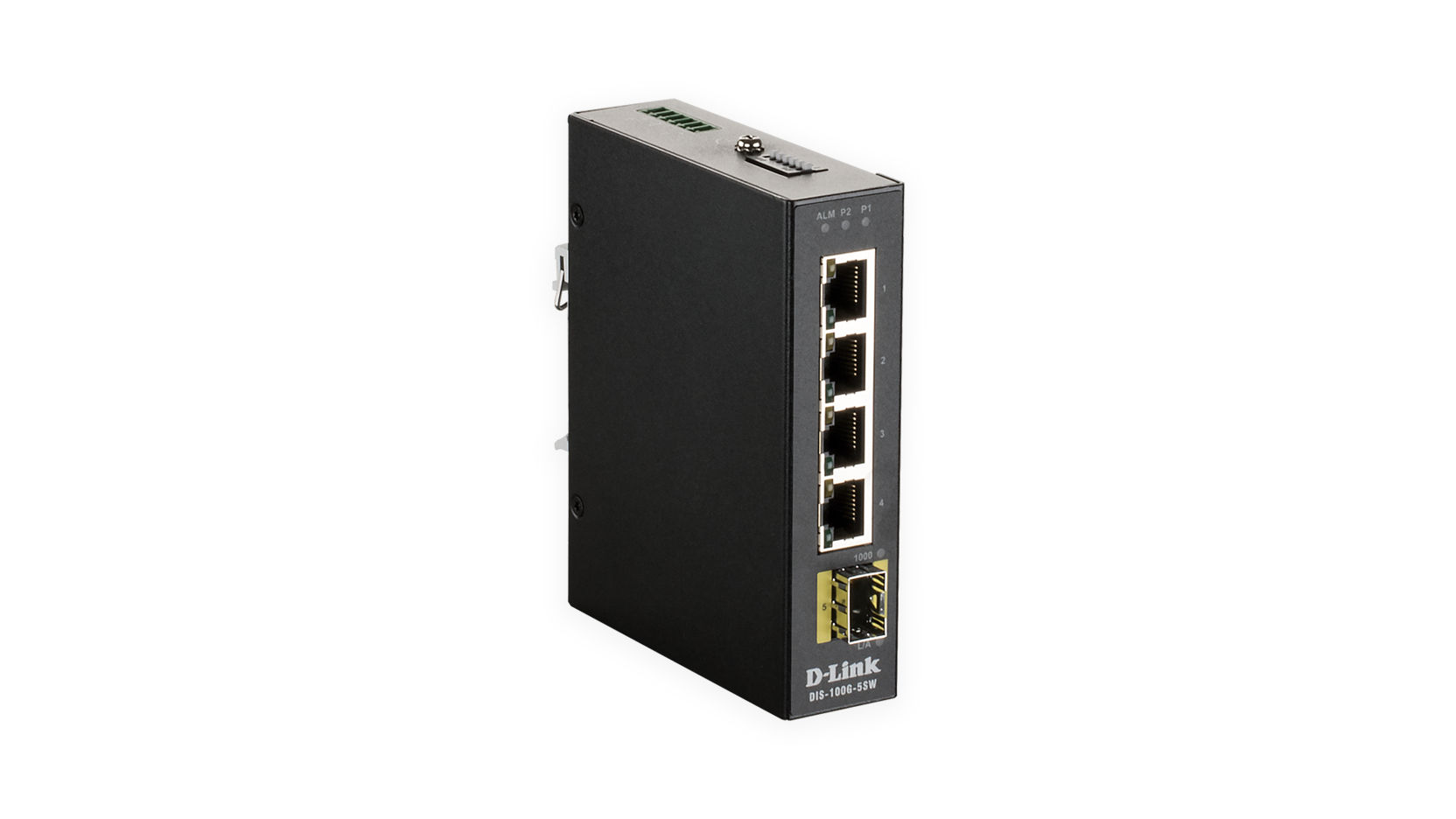

D-Link 5-Port Unmanaged Industrial Switch with 4 x 10/100/1000BaseT(X) & 1 x 100/1000BaseSFP
Brand: D-Link · SKU: DLI-DIS-100G-5SW · MPN: D-Link 5-Port Unmanaged Industrial Switch with 4 x 10/100/1000BaseT(X) & 1 x 100/1000BaseSFP · Category: Networking
D-Link 5-Port Unmanaged Industrial Switch with 4 x 10/100/1000BaseT(X) & 1 x 100/1000BaseSFP, Unmanaged, L2, Gigabit Ethernet (10/100/1000), Full duplex, Wall mountable
Specifications
| Depth | 29.1 mm |
|---|---|
| Width | 112.2 mm |
| Height | 89.4 mm |
| Weight | 295 g |
| 10G support | No |
| Full duplex | Yes |
| Switch type | Unmanaged |
| Jumbo frames | 9000 |
| Switch layer | L2 |
| Certification | IEC60068-2-6; IEC60068-2-27; IEC60068-2-32; UL 60950-1, CE, FCC, RoHS, WEEE |
| Package depth | 178 mm |
| Package width | 140 mm |
| Auto MDI/MDI-X | Yes |
| LED indicators | LAN, Power |
| Package height | 83 mm |
| Package weight | 500 g |
| Product colour | Black |
| Wall mountable | Yes |
| Forwarding rate | 7.44 Mpps |
| Traffic shaping | Yes |
| Auto-negotiation | Yes |
| DC input voltage | 12 - 58 V |
| Heat dissipation | 12.18 BTU/h |
| DIN rail mounting | Yes |
| Warranty | 3-Year Warranty |
| Weight | 295 g |
| Dimensions | 112.2 mm x 29.1 mm x 89.4 mm |
Product Description
The DIS-100G Series Gigabit Industrial Unmanaged Switches are equipped with a variety of port combinations including 10/100/1000BASE-T non-PoE or PoE ports, and SFP ports. These switches feature a robust design making them ideal for deployment in industrial and outdoor cabinet surveillance settings, capable of withstanding the harshest environments. In addition, the DIS-100G Series are Plug-and-Play, allowing for effortless and swift deployment. Durable, Reliable, and Efficient The DIS-100G Series switches are housed in a highly resistant IP30-rated metal casing to protect the switches from harsh environmental conditions. The high electromagnetic compatibility (EMC) protects the DIS-100G Series from unwanted effects when operating in environments with strong electromagnetic interference. The fanless design extends the life of the DIS-100G Series while also being able to operate in a wide temperature range from -40 °C up to 75 °C. For increased flexibility, the DIS-100G Series can also be mounted on a DIN rail or conveniently mounted on a solid surface wall. In addition, the DIS-100G Series supports dual power input which allows for a redundant power supply configuration to make sure the switches continue to operate in the event of a primary power supply failure. Meanwhile, a powerful IEEE 802.1p Quality of Service (QoS) engine prioritizes network traffic so that time-sensitive data is delivered efficiently, even during bursts of high data traffic. This helps ensure an optimal experience for streaming critical data such as from surveillance and recognition systems. Power over Ethernet Support The PoE-ready DIS-100G-5PSW features a total PoE budget of 120 W, capable of supplying up to 30 W of power per port to connected PoE-enabled devices leveraging existing conventional Ethernet cabling. This effectively cuts down deployment times, reduces cable clutter, and eliminates the need for dedicated power supplies to allow PoE-devices to be installed in remote locations. Green Ethernet Technology The DIS-100G Series features green technology, including IEEE 802.3az Energy-Efficient Ethernet (EEE), link status detection, and cable length detection. Energy Efficient Ethernet reduces the power consumption of the switches when network utilization is low, effectively lowering the cost of ownership during periods of inactivity. Link status detection automatically powers down ports when there is no link detected, saving power when the connected device has been shut down or disconnected. Cable length detection automatically adjusts the power output of the port based on the length of the cable, reducing the power requirements of the switch to only what is necessary for the installation. Limited Lifetime Warranty D-Link offers a Limited Lifetime Warranty on the DIS-100G Series Gigabit Industrial Unmanaged Switches to further its commitment to product quality and long-term customer confidence.
Key Features
D-Link 5-Port Unmanaged Industrial Switch with 4 x 10/100/1000BaseT(X) & 1 x 100/1000BaseSFP. Switch type: Unmanaged, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 4. Full duplex. MAC address table: 2000 entries, Switching capacity: 10 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z. DC input voltage: 12 - 58 V. Wall mountable
Technical Deployment Advisory
Target Personnel
Network Security Admins
Infrastructure Fit
Leaf-Spine Data Center Fabrics
"Network Security Admins should consider the DLI-DIS-100G-5SW for Leaf-Spine Data Center Fabrics where consistent throughput and robust connectivity are mandatory."
Frequently Asked Questions
Is this product genuine OEM?
Yes, this D-Link 5-Port Unmanaged Industrial Switch with 4 x 10/100/1000BaseT(X) & 1 x 100/1000BaseSFP (DLI-DIS-100G-5SW) is 100% genuine D-Link hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This D-Link 5-Port Unmanaged Industrial Switch with 4 x 10/100/1000BaseT(X) & 1 x 100/1000BaseSFP includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the D-Link 5-Port Unmanaged Industrial Switch with 4 x 10/100/1000BaseT(X) & 1 x 100/1000BaseSFP compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the DLI-DIS-100G-5SW.
