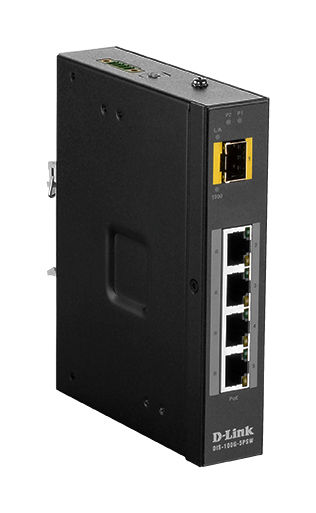

D-Link 5-Port Unmanaged Switch with 4 x 10/100/1000BaseT(X) ports (4 PoE) & 1 x 100/1000BaseSFP
Brand: D-Link · SKU: DLI-DIS-100G-5PSW · MPN: D-Link 5-Port Unmanaged Switch with 4 x 10/100/1000BaseT(X) ports (4 PoE) & 1 x 100/1000BaseSFP · Category: Networking
D-Link 5-Port Unmanaged Switch with 4 x 10/100/1000BaseT(X) ports (4 PoE) & 1 x 100/1000BaseSFP, Unmanaged, L2, Gigabit Ethernet (10/100/1000), Full duplex, Power over Ethernet (PoE), Wall mountable
Specifications
| Depth | 29 mm |
|---|---|
| Width | 139 mm |
| Height | 107 mm |
| Weight | 375 g |
| 10G support | No |
| Full duplex | Yes |
| Switch type | Unmanaged |
| Jumbo frames | 9000 |
| Switch layer | L2 |
| Certification | IEC60068-2-6; IEC60068-2-27; IEC60068-2-32, UL 61010-1, UL C1D2, CE, FCC, RoHS, WEEE |
| Package depth | 210 mm |
| Package width | 181 mm |
| Rack mounting | No |
| Auto MDI/MDI-X | Yes |
| LED indicators | LAN, PoE, Power |
| Package height | 75 mm |
| Package weight | 700 g |
| Product colour | Black |
| Wall mountable | Yes |
| Forwarding rate | 7.44 Mpps |
| Traffic shaping | Yes |
| Auto-negotiation | Yes |
| DC input voltage | 12 - 58 V |
| Heat dissipation | 410.12 BTU/h |
| Warranty | 3-Year Warranty |
| Weight | 375 g |
| Dimensions | 139 mm x 29 mm x 107 mm |
Product Description
Unmanaged Plug and Play with SFP and PoE Plug in and go. The DIS-100G-5PSW reliably forwards Ethernet frames. Gigabit Connectivity with PoE and SFP slots Designed with 4 x 100/1000Base-T PoE ports and 1 x 100/1000Base SFP slot to suit a range of devices and network layouts. Officially Certified Certifications for vibration, shock, free-fall, and electromagnetic compatibility to maximise network uptime in a variety of deployment environments, including smart city surveillance, factory automation, and outdoor wireless networks. Withstands Extreme Temperatures Operates effortlessly in a range of industrial and harsh environments in temperatures from -40°C to +75°C, and can cold start from -40°C. Strong Build The tough housing has been created to keep your network protected and reliably rugged. That’s why every DIS-switch comes with a 5-year D-Link warranty. PoE Support With its 120 W PoE power budget, it’s been designed to supply data and PoE power to compliant devices, which removes the need for unnecessary plugs and cables and reduces deployment time and effort. Fast Deployment For instant installation it features a snap-to-DIN-rail clip, and also supports wall mounting. Fanless Design With no moving parts inside to reduce downtime and maintenance call outs, the rugged housing has been optimised for the transfer of heat. Discrete Size Small but mighty. To make the most of cabinet space, it measures: 139 x 29 x 107 mm.
Key Features
D-Link 5-Port Unmanaged Switch with 4 x 10/100/1000BaseT(X) ports (4 PoE) & 1 x 100/1000BaseSFP. Switch type: Unmanaged, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 4. Full duplex. MAC address table: 2000 entries, Switching capacity: 10 Gbit/s. Networking standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE.... DC input voltage: 12 - 58 V. Power over Ethernet (PoE). Wall mountable
Technical Deployment Advisory
Target Personnel
NOC Managers
Infrastructure Fit
Edge Compute Deployments
"Scaling a Edge Compute Deployments requires hardware that ensures packet integrity; the D-Link DLI-DIS-100G-5PSW is design-optimized for this specific role in the network stack."
Frequently Asked Questions
Is this product genuine OEM?
Yes, this D-Link 5-Port Unmanaged Switch with 4 x 10/100/1000BaseT(X) ports (4 PoE) & 1 x 100/1000BaseSFP (DLI-DIS-100G-5PSW) is 100% genuine D-Link hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This D-Link 5-Port Unmanaged Switch with 4 x 10/100/1000BaseT(X) ports (4 PoE) & 1 x 100/1000BaseSFP includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the D-Link 5-Port Unmanaged Switch with 4 x 10/100/1000BaseT(X) ports (4 PoE) & 1 x 100/1000BaseSFP compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the DLI-DIS-100G-5PSW.
