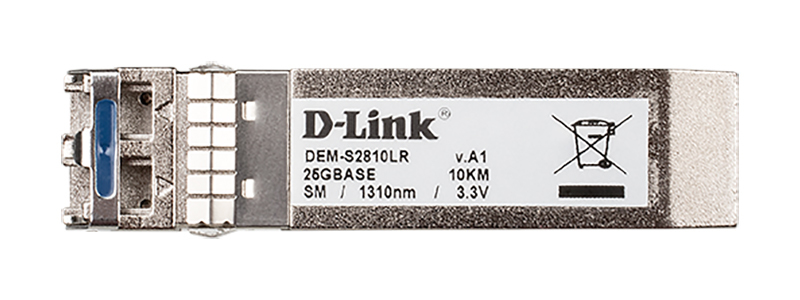

D-Link DEM-S2810LR network transceiver module Fiber optic 25000 Mbit/s SFP28 1310 nm
Brand: D-Link · SKU: DLI-DEM-S2810LR · MPN: DEM-S2810LR · Category: Networking
D-Link DEM-S2810LR, Fiber optic, 25000 Mbit/s, SFP28, LC, 9/125 µm, LR
Specifications
| Depth | 13.7 mm |
|---|---|
| Width | 57.3 mm |
| Height | 8.5 mm |
| Weight | 25 g |
| Wavelength | 1310 nm |
| Certification | MSA, RoHS, CE, FCC, VCCI, LVD, EN 60825-1, EN 60825-2 |
| Input voltage | 3.3 V |
| Interface type | SFP28 |
| Rx power (max) | 0.5 dBmW |
| Rx power (min) | -13.3 dBmW |
| Tx power (max) | 2 dBmW |
| Tx power (min) | -5 dBmW |
| Maximum current | 0.3 A |
| Hot-Plug support | Yes |
| SFP transceiver type | Fiber optic |
| Fiber optic connector | LC |
| SFP transceiver standard | LR |
| Maximum transfer distance | 10000 m |
| Storage temperature (T-T) | -40 - 85 °C |
| Maximum data transfer rate | 25000 Mbit/s |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Fiber ethernet cabling technology | 25GBASE |
| Operating relative humidity (H-H) | 5 - 95% |
| Warranty | 3-Year Warranty |
| Weight | 25 g |
| Dimensions | 57.3 mm x 13.7 mm x 8.5 mm |
Product Description
D-Link’s 25G SFP28 Module series are hot-swappable SFP28 transceivers that are plugged into SFP28 slots on switches and support 25G Ethernet. The transceivers use the Small Form-factor Pluggable 28 format (SFP28) connectors. The D-Link 25G SFP28 Module Series transceivers offer customers a wide variety of 25G Ethernet connectivity options for data centers, enterprise wiring closets, and service provider transport applications. Hot Pluggable All D-Link transceivers are hot pluggable. You can connect atransceiver while the system is powered on without causing any issues, and easily swap one for another without having to reboot the switch each time. This permits modules to be added or removed without interrupting the network, facilitating maintenance and greatly reducing downtime. 25G Ethernet speeds The transceivers support 25G Ethernet, which results in very fast data transmissions of up to 25 Gbit/s. This is 25 times faster than Gigabit Ethernet and enables the switch to handle faster and higher data transmissions, making it very suitable for business needs.
Key Features
D-Link DEM-S2810LR. SFP transceiver type: Fiber optic, Maximum data transfer rate: 25000 Mbit/s, Interface type: SFP28. Input voltage: 3.3 V, Maximum current: 0.3 A. Certification: MSA, RoHS, CE, FCC, VCCI, LVD, EN 60825-1, EN 60825-2. Width: 57.3 mm, Depth: 13.7 mm, Height: 8.5 mm
Technical Deployment Advisory
Target Personnel
NOC Managers
Infrastructure Fit
Edge Compute Deployments
"Scaling a Edge Compute Deployments requires hardware that ensures packet integrity; the D-Link DLI-DEM-S2810LR is design-optimized for this specific role in the network stack."
Frequently Asked Questions
Is this product genuine OEM?
Yes, this D-Link DEM-S2810LR network transceiver module Fiber optic 25000 Mbit/s SFP28 1310 nm (DLI-DEM-S2810LR) is 100% genuine D-Link hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This D-Link DEM-S2810LR network transceiver module Fiber optic 25000 Mbit/s SFP28 1310 nm includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the D-Link DEM-S2810LR network transceiver module Fiber optic 25000 Mbit/s SFP28 1310 nm compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the DLI-DEM-S2810LR.
