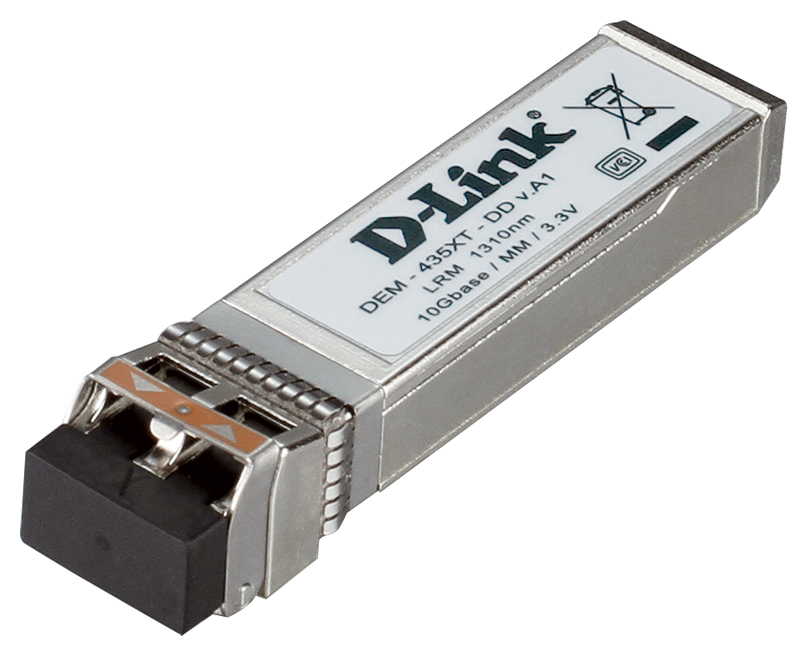

D-Link DEM-435XT-DD network transceiver module Fiber optic 10000 Mbit/s SFP+ 1310 nm
Brand: D-Link · SKU: DEM-435XT-DD · MPN: DEM-435XT-DD · Category: Networking
D-Link DEM-435XT-DD, Fiber optic, 10000 Mbit/s, SFP+, LC, 62.5/125 µm, LRM
Specifications
| Depth | 14.8 mm |
|---|---|
| Width | 56.5 mm |
| Height | 11.8 mm |
| Safety | CSA, TUV, CDRH |
| Weight | 22 g |
| Wavelength | 1310 nm |
| Certification | CE, FCC, VCCI |
| Input voltage | 3.3 V |
| Interface type | SFP+ |
| Product colour | Metallic |
| RX sensitivity | -6.5 dB |
| Rx power (max) | 1.5 dBmW |
| Rx power (min) | -6.5 dBmW |
| Tx power (max) | 1.5 dBmW |
| Tx power (min) | -4.5 dBmW |
| Maximum current | 0.3 A |
| Hot-Plug support | Yes |
| Housing material | Metal |
| Quantity per pack | 1 pc(s) |
| SFP transceiver type | Fiber optic |
| Fiber optic connector | LC |
| Compliance certificates | RoHS |
| SFP transceiver standard | LRM |
| Maximum transfer distance | 220 m |
| Warranty | 3-Year Warranty |
| Weight | 22 g |
| Dimensions | 56.5 mm x 14.8 mm x 11.8 mm |
Product Description
D-Link’s 10G SFP+ Module series are hot-swappable SFP+ transceivers that plug into SFP+ slots on switches and support 10G Ethernet. The D-Link 10GBASE SFP+ Module Series transceivers offer customers a wide variety of 10G Ethernet connectivity options for data centers, enterprise wiring closets, and service provider transport applications. Enhanced Small Form-factor Pluggable Format The transceivers use the Enhanced Small Form-factor Pluggable format (SFP+). The SFP+ form factor is smaller than other form factors such as Xenpak, X2, and 10G XFP, ensuring lower costs, lower power disruption, and higher port density. They provide the necessary signal amplification for data to be transmitted to the network cable from the port, and vice versa, for the port to receive data from the network cable. Hot Pluggable All D-Link transceivers are hot-pluggable. You can connect a transceiver while the system is powered on without causing any problems. This permits modules to be added or removed without interrupting the network. 10G Ethernet speeds The transceivers all support 10G Ethernet, which results in very fast data transmissions of up to 10Gbit/s. This is 10 times faster than Gigabit Ethernet and enables the switch to handle faster and higher data transmissions, making it very suitable for business needs. Digital Diagnostics Monitoring (DDM) Several of the 10G SFP+ Modules feature DDM real-time monitoring of critical parameters, including transmitted and received power, temperature, and voltage. This allows for convenient monitoring of the module’s fiber connection and early detection of problems. Bi-directional WDM transmission Bi-directional WDM transmission allows data to be transmitted simultaneously in both directions on a fiber cable. This helps you save on the cost of deploying extra fiber cables as well as allows for more flexible bandwidth allocation.
Key Features
D-Link DEM-435XT-DD. SFP transceiver type: Fiber optic, Maximum data transfer rate: 10000 Mbit/s, Interface type: SFP+. Product colour: Metallic, Housing material: Metal. Input voltage: 3.3 V, Maximum current: 0.3 A. Compliance certificates: RoHS, Safety: CSA, TUV, CDRH, Certification: CE, FCC, VCCI. Width: 56.5 mm, Depth: 14.8 mm, Height: 11.8 mm
Frequently Asked Questions
Is this product genuine OEM?
Yes, this D-Link DEM-435XT-DD network transceiver module Fiber optic 10000 Mbit/s SFP+ 1310 nm (DEM-435XT-DD) is 100% genuine D-Link hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This D-Link DEM-435XT-DD network transceiver module Fiber optic 10000 Mbit/s SFP+ 1310 nm includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the D-Link DEM-435XT-DD network transceiver module Fiber optic 10000 Mbit/s SFP+ 1310 nm compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the DEM-435XT-DD.
