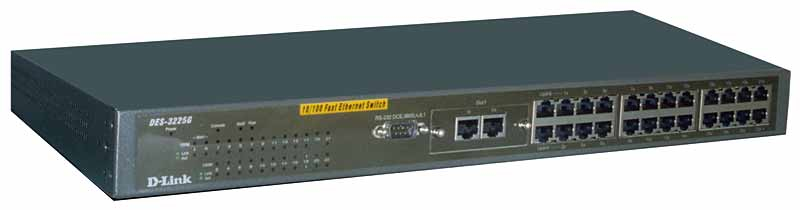

D-Link DES-3225G network switch Managed Fast Ethernet (10/100) 1U Black
Brand: D-Link · SKU: DES-3225G · MPN: DES-3225G · Category: Networking
D-Link DES-3225G, Managed, Fast Ethernet (10/100), Full duplex, Rack mounting, 1U
Specifications
| Depth | 367 mm |
|---|---|
| Width | 441 mm |
| Height | 44 mm |
| Safety | UL1950, CSA950, En60950 |
| Fiber type | Multi-mode |
| 10G support | No |
| Form factor | 1U |
| Full duplex | Yes |
| MIB support | MIB-II RFC 1213, Bridge MIB RFC 1493, RMON MIB RFC1757, D-Link Enterprise MIBs |
| Switch type | Managed |
| Console port | RS-232 |
| VLAN support | Yes |
| Certification | FCC Class A CE Mark VCCI Class A C-Tick BSMI Class A |
| Rack mounting | Yes |
| Auto MDI/MDI-X | Yes |
| LED indicators | Yes |
| Number of fans | 2 fan(s) |
| Product colour | Black |
| AC input voltage | 100 - 240 V |
| ExpressCard slot | No |
| MAC address table | 12000 entries |
| Store-and-forward | Yes |
| AC input frequency | 50 - 60 Hz |
| Fiber ports quantity | 3 |
| Warranty | 3-Year Warranty |
| Dimensions | 441 mm x 367 mm x 44 mm |
Product Description
24 Auto-sensing 10/100Mbps Ports This standalone switch provides a maximum of 24 NWay ports that automatically negotiate between 10BASE-T and 100BASE-TX network speeds, as well as between full and half duplex modes. The available plug-in modules are : l. 2 port 10/100Mbps board 2. 1 port 100BASE-FX board 3. 2 port 100BASE-FX board 4. 1 port Gigabit Ethernet board Departmental Connection The switch is a low-cost solution for departmental connection that can handle network speeds of up to 2000Mbps (full-duplex gigabit Ethernet) and provide high bandwidth to multiple workgroup segments. It can also provide dedicated full-duplex Fast Ethernet links to multiple server farms for bandwidth intensive client-server applications. User-customizable Filters With layer 2 switching capabilities in addition to dynamic filtering through auto-learned MAC addresses, the switch also supports static filtering, permitting the administrator to define custom filters to set up network security and implement explicit forwarding. Industry-standard Management SNMP agent permits the switch to be part of a larger network with configuration control and traffic monitoring. In addition, remote monitoring capability is built into every segment, allowing easy implementation of RMON. Built-in HTTP server provides an easy-to-use Web-based management interface through a standard web browser. Broadcast Storm Protection The administrator can select to forward or discard multicast packets on all or specific segments to flexibly control broadcast data and prevent unnecessary absorption of network bandwidth. VLAN Support With virtual LAN support, the administrator can enhance security and create logical workgroups regardless of the users’ physical locations. This permits mobile users to simply plug into any wall socket to access the network, while remaining part of their original groups within an organization’s structure.
Key Features
D-Link DES-3225G. Switch type: Managed. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 24, Console port: RS-232. Full duplex. MAC address table: 12000 entries. Networking standards: IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z. Rack mounting, Form factor: 1U
Frequently Asked Questions
Is this product genuine OEM?
Yes, this D-Link DES-3225G network switch Managed Fast Ethernet (10/100) 1U Black (DES-3225G) is 100% genuine D-Link hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This D-Link DES-3225G network switch Managed Fast Ethernet (10/100) 1U Black includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the D-Link DES-3225G network switch Managed Fast Ethernet (10/100) 1U Black compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the DES-3225G.
