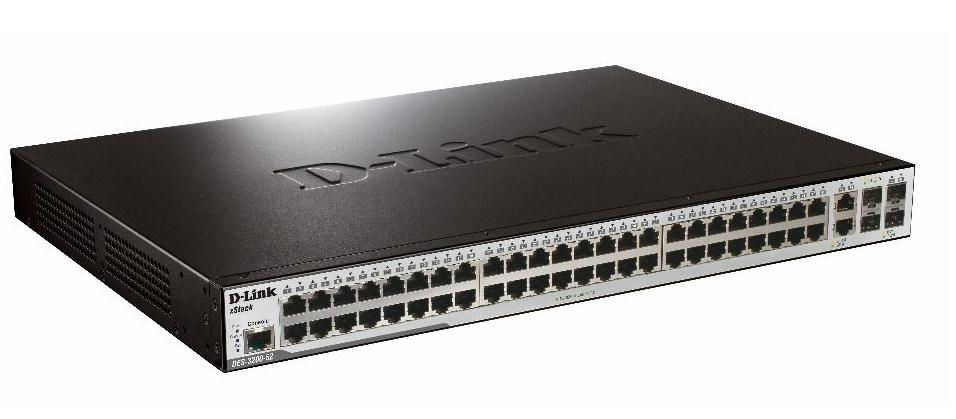

D-Link DES-3200-52 network switch Managed L2 1U Black

Specifications

Product Description

Metro Ethernet certified MEF 21 certification for deployments in MAN and carrier networks Robust Security With Access Control Lists, D-Link Safeguard Engine and Microsoft® NAP support IPv6 Ready Supports the new Internet standards Simplified Management Web GUI for easy configuration The DES-3200 Series is a member of D-Link’s Layer 2 Managed Switch family designed for the enterprise market. This Series provides 10/16/24/48 Fast Ethernet ports plus 2/4 combo Gigabit/SFP slots. The DES-3200-10/18 comes in a 9-inch desktop size and incorporates a fanless design suitable for silent environments. The DES-3200-28/52 provide copper connections on Fast Ethernet, an advantage when used for Metro Ethernet applications. They also offer the beneficial design of 2/4 Gigabit/SFP Combo slots which provide up to 4 Gbps uplink bandwidth or dual Ethernet ring topology support. The DES-3200-28P/52P are IEEE 802.3af /802.3at -compliant switches that provide 15.4W in every port and up to 30 W on a number of ports for Power over Ethernet (PoE) applications that require extra power. Metro Ethernet Forum (MEF) certification for Carriers and Internet Service Providers D-Link pioneers the industry by receiving the first round of MEF 21 for the DES-3200 Series. The MEF 21 certification guarantees that the DES-3200 Series meets the highest standards on OAM (Operations Administration Maintenance). The Connectivity Fault Management (CFM) feature provides tools to monitor and troubleshoot end-to-end Ethernet networks, allowing service providers to check connectivity, isolate network issues, and identify affected customers without sending a support technician on site. D-Link Unidirectional Link Detection (DULD) provides discovery mechanisms based on IEEE 802.3ah to discover unidirectional traffic issues that can affect fibre links. Security & Availability The DES-3200 Series supports 802.1x Port-based/Host-based Access Control, Guest VLAN, RADIUS and TACACS+ Authentication for strict access control over the network. The IP-MAC-Port Binding feature allows administrators to bind a source IP address with an associated MAC for a defined port number to enhance user access control. Furthermore with the DHCP Snooping feature, the switch automatically understands the IP/MAC pairs by snooping DHCP packets and saving them to the IMPB white list. These features play a significant role in keeping the network secure and auditable. The built-in D Link Safeguard Engine identifies and prioritizes “CPU interested” packets to prevent malicious traffic from interrupting normal network flows and protects switch operation. In addition, the Access Control List (ACL) feature enhances the network security and switch performance. Resilience / Performance Enhancement For mission critical environments the DES-3200 series supports Spanning Tree (STP), Rapid Spanning Tree (RSTP) and Multiple Spanning Tree (MSTP). STP allows you to configure the switch with redundant backup bridge path, so transmission and reception of data frames can be guaranteed in the event of any failed switch on the network. The Series also supports Link Aggregation Control Protocol (LACP), enabling you to group multiple ports in parallel to form a single port, increasing bandwidth and redundancy for higher availability. For Quality of Service (QoS), the DES-3200 supports advanced packet classification is based on TOS, DSCP, MAC address, IP addresses, VLAN ID, TCP/UDP port number, protocol type and user-defined packet content. This enables flexible configuration for specific multi-media applications such as IPTV. Additionally, the DES-3200 Series supports automatic, effective QoS function for voice traffic with the Auto Voice VLAN feature, which automatically places voice traffic into a dedicated VLAN with higher priority to guarantee the quality and security of voice conversations. Traffic & Bandwidth Control The Bandwidth Control feature allows network administrators to define the throughput levels for each port in order to manage bandwidth. It also provides fine granularity to define the ingress/egress traffic limits down to 62.5 kbps segments. Bandwidth can also be effectively managed for multicast applications like Video On Demand (VoD) with the IGMP snooping and MLD snooping features, to limit multicast traffic only to Switch ports where subscribers connect, optimising the overall network performance. The Switches also support the Broadcast Storm Control feature which minimises the chance of a virus outbreak within the network. Port Mirroring helps administrators facilitate traffic diagnostics or track Switch performance and make changes if necessary. Q-in-Q, also known as VLAN stacking, is a powerful yet simple and cost-effective solution which can be used to provide multiple virtual connections and access to multiple services available over the Metro Ethernet. Management Capabilities The DES-3200 series supports standard management protocols such as SNMP, RMON, Telnet/SSH/SSL and DHCP Re

Key Features

D-Link DES-3200-52. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports quantity: 52, Console port: RJ-45. Full duplex. MAC address table: 16000 entries, Switching capacity: 17.6 Gbit/s. Networking standards: IEEE 802.1ag, IEEE 802.1D, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ah. Rack mounting, Form factor: 1U
