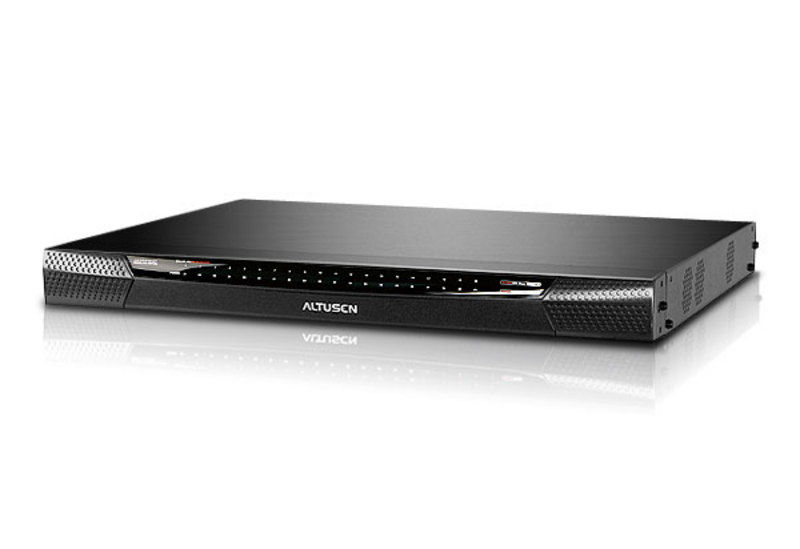

ATEN KN4140v KVM switch Rack mounting Black
Brand: ATEN · SKU: DCP2999 · MPN: DCP2999 · Category: Data Center
ATEN KN4140v, 1600 x 1200 pixels, Ethernet LAN, Rack mounting, 56 W, 1U, Black. ATEN KN4140v KVM switch Rack mounting Black (part number DCP2999) is an enterprise kvm switches product available from Server Tech Central. Key specifications include depth 433.6 mm, width 413.5 mm, height 44 mm, weight 6.12 kg, colour depth 32 bit, ethernet lan Yes, rack capacity 1U, rack mounting Yes. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 433.6 mm |
|---|---|
| Width | 413.5 mm |
| Height | 44 mm |
| Weight | 6.12 kg |
| Colour depth | 32 bit |
| Ethernet LAN | Yes |
| Rack capacity | 1U |
| Rack mounting | Yes |
| LED indicators | Yes |
| Ports quantity | 40 |
| Product colour | Black |
| Housing material | Metal |
| Maximum resolution | 1600 x 1200 pixels |
| Data link protocols | TCP, IP, HTTP, HTTPS, DNS, DHCP, PPP, UDP, ARP, ICMP, SMTP, RADIUS, LDAP, LDAPS |
| Security algorithms | 256-bit AES, 3DES, 802.1x RADIUS, DES, SSL/TLS |
| Management protocols | SMTP |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| USB 2.0 ports quantity | 3 |
| Compliance certificates | RoHS |
| Connectivity technology | Wired |
| Storage temperature (T-T) | -20 - 60 °C |
| Ethernet LAN (RJ-45) ports | 2 |
| Operating temperature (T-T) | 0 - 50 °C |
| Power consumption (typical) | 56 W |
| Warranty | 3-Year Warranty |
| Weight | 6.12 kg |
| Dimensions | 413.5 mm x 433.6 mm x 44 mm |
Product Description
Features Hardware - High port density - RJ-45 connectors and Cat 5e/6 cable for up to 40 ports in a 1U housing - Four separate buses for remote KVM over IP access - Two 10/100/1000 Mbps NICs for redundant LAN or two IP operation - Blade server support - Supports PS/2, USB, Sun Legacy (13W3) and serial (RS-232) connectivity - Local console provides PS/2 and USB keyboard and mouse support - Supports multiplatform server environments: Windows, Mac, Sun, Linux and VT100 based serial devices - Audio enabled - Virtual Media support lets you map DVD-CD-ROMs and other storage media to a remote server - Dual Power Supply - High video resolution - up to 1600 x 1200 @ 60Hz - 32 bit color depth for the local console; up to 1600 x 1200 @ 60Hz with 24 bit color depth for remote sessions, at up to 50 m - Monitor and control up to 40 computers on a single level, or control up to 640 computers in a two-level cascade* * Cascade-compatible KVM Switches include the following: CS9134, CS9138, CS88A, KH1508, KH1516, KH1508A, and KH1516A . Some KVM Over the NET™ features may not be supported, depending on the functionality of the cascaded KVM switch. Management - Up to 64 user accounts - up to 32 users simultaneously share the control - Green IT-Fan speed varies according to temperature - End session feature - administrators can terminate running sessions - Event logging and Windows-based Log Server support - Critical system event notification via SMTP email; SNMP trap and Syslog support - Customizable events notification - Firmware upgradeable - Out-of-Band Access-Modem dial-in/dial out/dial back support - Adapter ID Function: Stores port information allowing administrators to relocate the servers to different ports, without having to re-configure the adapters and switches - Port Share Mode allows multiple users to gain access to a server simultaneously - Integration with ALTUSEN CC2000 Management software - Power Association enables the switch’s KVM ports to be associated with an ATEN/ALTUSEN’S PDUs power outlets for remote power management of the servers from the switch’s interface - Manage browser access methods(Browser, http, https) - IPv6 capable Ease-to-Use Interface - Local Console, browser-based, and AP GUIs offer a unified multilanguage interface to minimize user training time and increase productivity - Multiplatform client support (Windows, Mac OS X, Linux, Sun) - Multi-browser support: Internet Explorer, Chrome, Firefox, Safari, Opera, Mozilla, Netscape - Browser-based UI in pure Web technology allows administrators to perform administrative tasks without pre-installed Java software package required - User can launch multiple Virtual Remote Desktop to control multiple connected servers from the same login session - Magic Panel - Full-screen or sizable and scalable Virtual Remote Desktop - Panel Array Mode available to both local console operators and remote access users - Keyboard/Mouse Broadcast – keyboard and mouse inputs can be duplicated on all the attached servers - Video syncing with the local console – local console monitor’s EDID information stored on the KVM Adapter Cables for display resolution optimization Advanced Security - Remote authentication support: RADIUS, LDAP, LDAPS, and MS Active Directory - 128-bit SSL encryption to protect password when users log in - Flexible encryption design allows users to choose any combination of 56-bit DES, 168-bit 3DES, 256-bit AES, 128-bit RC4, or Random for independent KB/Mouse, video, and virtual media data encryption - Support for IP/MAC Filter - Configurable user and group permissions for server access and control - Automated CSR creation utility and third party CA certificate authentication Virtual Media - Virtual media enables file applications, OS patching, software installation and diagnostic testing - Works with USB enabled servers in operating system and BIOS level - Supports DVD/CD drives, USB mass storage devices, PC hard drives and ISO images Virtual Remote Desktop - Video quality and video tolerance can be adjusted to optimize data transfer speed; monochrome color depth setting, threshold and noise settings for compression of the data bandwidth in low bandwidth situations - Full screen video display or scalable video display - Message Board for communication among remote usersc - Mouse DynaSync -automatically synchronizes the local and remote mouse movements - Exit Macros support - On-screen keyboard with multilanguage support - BIOS-level access Package Contents - 1x KN4140v KVM Over the NET™ Switch - 2x SA0142 Serial Adapters (RJ45-F to DB9-M; DTE to DCE) - 2x 1ADP-0008-001G Power Cords - 2x Utility Power Cord - 1x 5-in-1 Console Cable - 1x Rack Mount Kit - 1x Foot Pad Set (4 pcs.)1x User Instructions
Key Features
ATEN KN4140v. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, Security algorithms: 256-bit AES, 3DES, 802.1x RADIUS, DES, SSL/TLS. Maximum resolution: 1600 x 1200 pixels. Product colour: Black, Rack capacity: 1U, Housing material: Metal. Power consumption (typical): 56 W. Compliance certificates: RoHS
