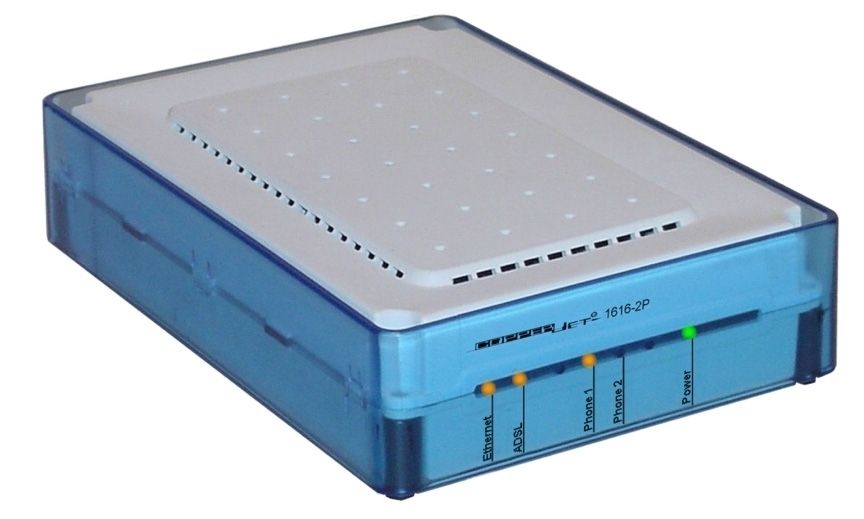

Allied Telesis CopperJet 1616 - ADSL over ISDN wired router

Brand: Allied Telesis · SKU: CJT-1616B-2PEU-01 · MPN: CJT-1616B-2PEU-01 · Category: Networking

Allied Telesis CopperJet 1616 - ADSL over ISDN wired router
Request for Quote
Backorder

Allied Telesis CopperJet 1616 - ADSL over ISDN, 24 Mbit/s, ADSL2, ADSL2+, ADSL (annex B), SNMP V1, V2, MIB I, MIB II, TELNET, Dying Gasp, Webserver, CE mark IEC 60950, Power, 0 - 40 °C. Allied Telesis CopperJet 1616 - ADSL over ISDN wired router (part number CJT-1616B-2PEU-01) is an enterprise routers product available from Server Tech Central. Key specifications include adsl Yes, weight 400 g, i/o ports - Ethernet (RJ45) - ADSL (RJ11) - Power - Phone 1, Phone 2 (RJ11), full duplex Yes, certification CE mark IEC 60950, led indicators Power, dsl specification ADSL2, ADSL2+, ADSL (annex B), power supply type 115-230 VAC, 50 - 60 Hz, 8 W. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.

View Networking Products

Specifications

ADSLYes
Weight400 g
I/O ports- Ethernet (RJ45) - ADSL (RJ11) - Power - Phone 1, Phone 2 (RJ11)
Full duplexYes
CertificationCE mark IEC 60950
LED indicatorsPower
Voice features- 2 x POTS/PSTN FXS (RJ11) - Active Inbound Call Switching - Lifeline support - DTMF - 600 Ohm - 2 REN - Internal Ring Source - Loop Start Signalling - DTMF Detect & Remove - ELCP, CAS, CCS - SIPv2 (RFC 3261), MGCP (RFC 3435), RTP (RFC3550) - SIP DNS, SIP QoS - G.711 (64Kbps PCM) - G.726 (32Kbps ADPCM) - G.729ab (8Kbps ADPCM) - G.168 Echo Cancellation - Universal CP Tone Detect - Voice Activity Detect - Silence Insertion Descriptor (SID) - Silence Suppression - Packet Loss Compensation (PLC) - Caller ID (Transmit/ Receive) - Caller ID/Call Waiting (Type-1 & 2) - Flash on/off hook - 3 Way call
DSL specificationADSL2, ADSL2+, ADSL (annex B)
Power supply type115-230 VAC, 50 - 60 Hz, 8 W
Security features- IPsec VPN termination - Stateful Inspection Firewall - Intrusion Detection - Denial Of Service protection - De-Militarized Zone - NAT/NAPT
Dimensions (WxDxH)120 x 170 x 40 mm
Supported WAN type- ADSL Annex A, RJ11 - ITU-T G.992.1 (G.dmt) - ITU-T G.992.3 ADSL2 (G.dmt.bis) - ITU-T G.992.5 ADSL2+ (G.dmt.bis.plus) - ANSI T1.413 i2 - G.994.1 (G.hs)
Downstream data rate24 Mbit/s
Management protocolsSNMP V1, V2, MIB I, MIB II, TELNET, Dying Gasp, Webserver
Connectivity technologyWired
Supports ISDN connectionYes
Storage temperature (T-T)-10 - 70 °C
Maximum data transfer rate0.1 Gbit/s
Operating temperature (T-T)0 - 40 °C
Compatible operating systems- Ethernet: Windows, Linux & MAC
Operating relative humidity (H-H)5 - 90%
Warranty3-Year Warranty
Weight400 g

Product Description

Unique Selling Points (USP): - Full featured ADSL2/2+ Voice Router and Firewall - Suitable for ADSL2+, ADSL2, ADSL over ISDN (annex B), U-R2 - Up to 24 Mbps downstream - 1 x Ethernet 10/100 BaseT - 2 x POTS/PSTN FXS - Supports VoIP (SIP, MGCP) - Voice over DSL ELCP, CAS, CCS - User friendly webserver interface - Active Inbound Call Switching - Upgrade to IPsec VPN - QuickStart for easy set-up Product description: Delivering ADSL/ADSL2 and ADSL2+ enables service providers to offer connections of more than 24 Mbps downstream with the CopperJet 1616. Furthermore, the CopperJet 1616 is a Voice over DSL (ATM) Integrated Access Device, which has proven interoperability with BLES (DSL-Forum), Paradyne/Jetstream, Cirpack, TDSoft, Siemens and Alcatel Voice Gateways. It supports 2POTS/PSTN connections on RJ11 connectors that can be used for telephony (analog phones), fax or PaBX services using its integrated residential exchange functions. The IAD also provides layer 2 Bridging and combines software security for added versatility. Active Inbound Call Switching enables the user to have both his traditional POTS Voice line and the VoDSL line connected to a single POTS telephone. This latest development from Allied Data Technologies is a combination of Data and Voice in order to supply customers a total package of data communications and telephony.

Key Features

Allied Telesis CopperJet 1616 - ADSL over ISDN. Downstream data rate: 24 Mbit/s, DSL specification: ADSL2, ADSL2+, ADSL (annex B). Management protocols: SNMP V1, V2, MIB I, MIB II, TELNET, Dying Gasp, Webserver. Certification: CE mark IEC 60950. LED indicators: Power. Weight: 400 g
