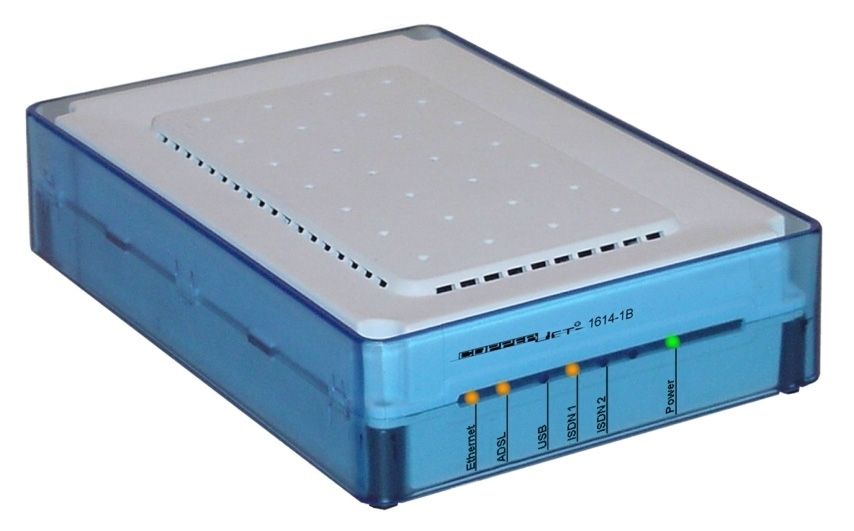

Allied Telesis CopperJet 1614 - ADSL over ISDN wired router

Brand: Allied Telesis · SKU: CJT-1614B-1BEU-01 · MPN: CJT-1614B-1BEU-01 · Category: Networking

Allied Telesis CopperJet 1614 - ADSL over ISDN wired router
Request for Quote
Backorder

Allied Telesis CopperJet 1614 - ADSL over ISDN, 24 Mbit/s, SNMP V1, V2, MIB I, MIB II, TELNET, Dying Gasp, Webserver, Installation CD, CE mark IEC 60950, ISDN, Power, 0 - 40 °C. Allied Telesis CopperJet 1614 - ADSL over ISDN wired router (part number CJT-1614B-1BEU-01) is an enterprise routers product available from Server Tech Central. Key specifications include adsl Yes, weight 400 g, i/o ports - Ethernet (RJ45) - ADSL (RJ11) - ISDN (RJ45) - Power - USB, full duplex Yes, certification CE mark IEC 60950, led indicators ISDN, Power, bundled software Installation CD, power supply type 115-230 VAC, 50 - 60 Hz, 8 W. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.

View Networking Products

Specifications

ADSLYes
Weight400 g
I/O ports- Ethernet (RJ45) - ADSL (RJ11) - ISDN (RJ45) - Power - USB
Full duplexYes
CertificationCE mark IEC 60950
LED indicatorsISDN, Power
Voice features- 1 x ISDN BRI S0 (RJ45) - 4 wire line (Tx & Rx) - ISDN 2B + 1D (2 x 64kbps + 1 x 16kbps) - 128 kbps data rate - Internal Ring Source - ELCP, CAS, CCS - G.711 (64Kbps PCM) - G.726 (32Kbps ADPCM) - G.168 - Universal CP Tone Detect - Voice Activity Detect s/AGC - Silence Compression and Reconstruction - Caller ID (Transmit/ Receive) - Caller ID ~ Call Waiting - Flash on/off hook
Bundled softwareInstallation CD
Power supply type115-230 VAC, 50 - 60 Hz, 8 W
Security features- Stateful Inspection Firewall - Intrusion Detection - Denial Of Service protection - De-Militarized Zone - NAT/NAPT
Dimensions (WxDxH)120 x 170 x 40 mm
Supported WAN type- ADSL Annex B - DTAG / U-R2, ETSI 101 388 - ITU-T G.992.1 (G.dmt) - ITU-T G.992.3 ADSL2 (G.dmt.bis) - ITU-T G.992.5 ADSL2+ (G.dmt.bis.plus) - ANSI T1.413 i2 - G.994.1 (G.hs)
Downstream data rate24 Mbit/s
Management protocolsSNMP V1, V2, MIB I, MIB II, TELNET, Dying Gasp, Webserver
Connectivity technologyWired
Supports ISDN connectionYes
Storage temperature (T-T)-10 - 70 °C
Maximum data transfer rate0.1 Gbit/s
Operating temperature (T-T)0 - 40 °C
Compatible operating systems- Ethernet: Windows, Linux & MAC - USB: Windows 98SE, ME, 2000, XP
Operating relative humidity (H-H)5 - 90%
Warranty3-Year Warranty
Weight400 g

Product Description

Unique Selling Points (USP): - Full featured ADSL2/2+ Voice Router - Suitable for ADSL2+, ADSL2, ADSL over ISDN (annex B) - Up to 24 Mbps downstream - 1 x Ethernet 10/100 BaseT - 1 x ISDN BRI - Voice over DSL ELCP, CAS, CCS - User friendly webserver interface - Active Inbound Call Switching - Upgrade to IPsec VPN - QuickStart for easy set-up Product Description: Delivering ADSL/ADSL2 and ADSL2+ enables service providers to offer connections of 24 Mbps downstream with the CopperJet 1614. Furthermore, ADSL2+ extends the reach of ADSL. The benefits of ADSL2/2+ are higher speeds up to 24 Mbps downstream; Low Power Mode (LPM) enables overall power savings by entering into sleep mode when the connection is not being used; Seamless rate adaptation (SRA) enables the system to change the data rate of the connection without any service interruption; Bonding of ADSL lines provides higher data rates; Fast startup reduces initialization time; Reach can be increased with almost 30%. The CopperJet 1614 is a Voice over ATM Integrated Access Device and can be upgraded to support Voice over IP (VoIP)*. It has proven interoperability with several Voice Gateways including, TDSoft, Siemens, Zhone and Alcatel. The CJT 1614 supports 1 x ISDN BRI S0 connection on a RJ45 connector that can be used for telephony (ISDN phones), fax (G4) or data (ISDN BRI) services using its automatic switchover system between telephony and data. It also provides layer 2 Bridging, layer 3 Routing and integrates a full-featured firewall for security. Capable of doing ADSL Annex A, Annex B, U-R2, ADSL2 and ADSL2+, the new CopperJet 16xx products from Allied Data Technologies increase the deployment of ADSL in rural areas and fulfill the demand for more bandwidth. * VoIP support on ISDN BRI is planned for future release

Key Features

Allied Telesis CopperJet 1614 - ADSL over ISDN. Downstream data rate: 24 Mbit/s. Management protocols: SNMP V1, V2, MIB I, MIB II, TELNET, Dying Gasp, Webserver. Bundled software: Installation CD. Certification: CE mark IEC 60950. LED indicators: ISDN, Power

Frequently Asked Questions

Is this product genuine OEM?

Yes, this Allied Telesis CopperJet 1614 - ADSL over ISDN wired router (CJT-1614B-1BEU-01) is 100% genuine Allied Telesis hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.

What warranty is included?

This Allied Telesis CopperJet 1614 - ADSL over ISDN wired router includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.

How long does shipping take?

We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.

Can I return this product?

Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.

Is the Allied Telesis CopperJet 1614 - ADSL over ISDN wired router compatible with my system?

Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the CJT-1614B-1BEU-01.
