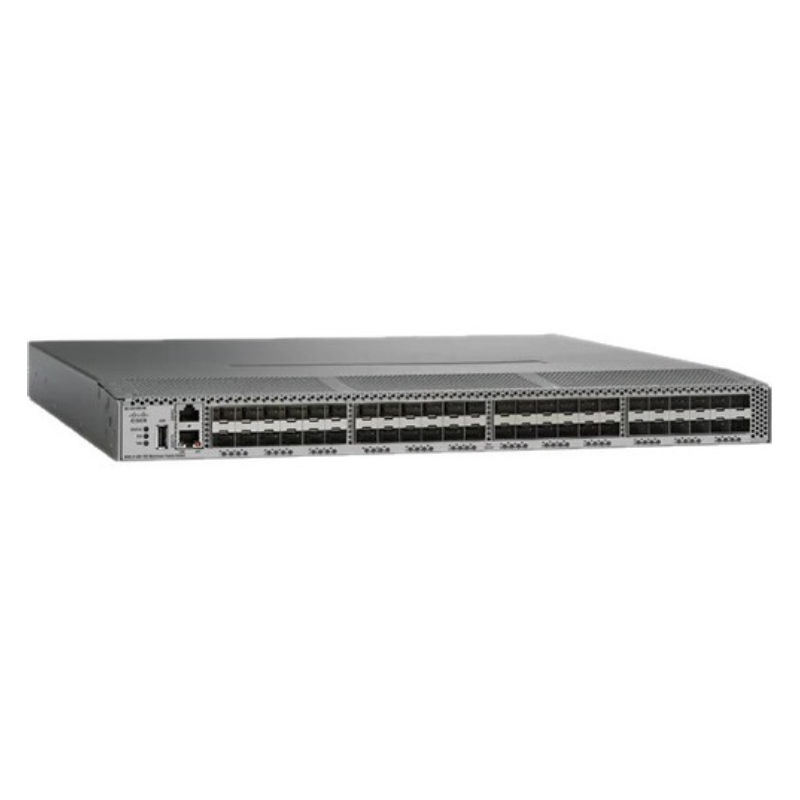

DS-C9148T-24EK9, Cisco MDS 9148T Switch, 24x32G FC/48 Ports/Exhaust

SKU: CIS:DS-C9148T-24EK9 · MPN: CIS:DS-C9148T-24EK9 · Category: Networking

DS-C9148T-24EK9, Cisco MDS 9148T Switch, 24x32G FC/48 Ports/Exhaust
Request for Quote
In Stock • 10 units

MDS 9148T 32G 48-Port FC switch, w/ 24 active ports, exhaust

View Switches Products

Specifications

Power● 80 Plus Platinum certified power supplies ● Power supply options ◦ 650W AC in base model, port-side exhaust variant (2 per switch) ◦ 650W AC in base model, port-side intake variant (2 per switch) ● Power cord ◦ IEC60320 C14 plug on 650W power supply connecting to a notched C15 socket connector (check Table 6 later in this document for power cords specific to regions) ● AC input: 100 to 240 VAC (10% range) ● Frequency: 50 to 60 Hz (nominal) ● Typical power consumption ◦ 217W for Idle 48-Port switch without optics modules ◦ 251W for 48-Port switch with 24 32G SW optics modules under typical conditions ◦ 297W for 48-Port switch with 48 32G SW optics modules under typical conditions ● Airflow ◦ Back to front (toward ports) using port-side exhaust fans ◦ Front to back (inward from ports) using port-side intake fans ◦ 50 Cubic Feet per Minute (CFM) through system fan assembly at 77°F (25°C) ◦ 100 CFM maximum
Security● VSAN fabric isolation ● Intelligent packet inspection at port level ● Hardware zoning by Access Control Lists (ACLs) ● Fibre Channel Security Protocol (FC-SP) switch-to-switch authentication ● FC-SP host-to-switch authentication ● Role-based access control (RBAC) using RADIUS, TACACS+, or Lightweight Directory Access Protocol (LDAP) authentication, authorization, and accounting (AAA) functions ● Secure FTP (SFTP) ● Secure Shell Protocol Version 2 (SSHv2) ● Simple Network Management Protocol Version 3 (SNMPv3) implementing Advanced Encryption Standard (AES) ● Control-plane security ● Cisco TrustSec ® payload encryption ● Secure Boot and Anti-counterfeit technology
Diagnostics● Power-On-Self-Test (POST) diagnostics ● Online Health Management System (OHMS) diagnostics ● Internal loopbacks ● SPAN ● Fibre Channel traceroute ● Fibre Channel ping ● Fibre Channel debug ● Cisco Fabric Analyzer ● Syslog ● Port-level statistics ● Link diagnostics (E-port and F-port links) ● Read Diagnostic Parameter
Performance● Port speed: 4-, 8-, 16-, and 32-Gbps autosensing with 32 Gbps of dedicated bandwidth per port ● Aggregate bandwidth of 1.5-Tbps end-to-end full duplex ● Buffer credits: Up to 8300 for a group of 16 ports, with a default of 500 buffer credits per port and a maximum of 8270 buffer credits for a single port in the group ● Port groups: 3 port groups of 16 ports each ● Port channel: Up to 16 load-balanced physical links grouped in one port channel
Serviceability● Configuration file management ● Call Home ● Port beaconing ● Link cable beacon ● System LEDs ● SNMP traps for alerts
Fabric services● Name server ● Registered State Change Notification (RSCN) ● Login services ● Fabric Configuration Server (FCS) ● Broadcast ● In-order delivery
Temperature range● Temperature, ambient operating: ◦ 32 to 104°F (0 to 40°C) with port-side exhaust and intake airflow variants ● Temperature, ambient nonoperating and storage: –40 to 158°F (–40 to 70°C) ● Relative humidity, ambient (noncondensing) operating: 10 to 90% ● Relative humidity, ambient (noncondensing) nonoperating and storage: 10 to 95% ● Altitude, operating: –197 to 6500 ft (–60 to 2000m)
Advanced functions● VSAN ● NPV ● IVR ● Port Channel with multipath load balancing ● Flow- and zone-based QoS
Network management● Management access through 2 out-of-band Ethernet ports ◦ mgmt0: 10/100/1000BASE-T port ◦ mgmt1: 1/10G SFP+ port# ● RS-232 serial console port ● USB power-on auto-provision port ● Access protocols ● Command-Line Interface (CLI) using the console and Ethernet port ● SNMPv3 using the Ethernet port and in-band IP over Fibre Channel access ● Storage Networking Industry Association (SNIA) Storage Management Initiative Specification (SMI-S) ● NX-API for REST ● full access through HTTPS REST ● Distributed device alias service ● Network security ● Per-VSAN RBAC using LDAP, RADIUS, and TACACS+-based AAA functions ● Simple File Transfer Protocol (SFTP) ● SSHv2 implementing AES ● SNMPv3 implementing AES ● Cisco Data Center Network Manager (DCNM)
Fibre Channel ports● Fixed-switch form factor with 48 SFP+ ports base ● Entry-level 24-port preactivated base model with flexibility to turn on any 24 ports ● Incremental ports ◦ 8-ports upgrade license offers the option of upgrading to 32, 40, and 48 ports
Programming interfaces● Scriptable CLI ● Cisco DCNM web services API ● NX-API RESTful interfaces ● Onboard Python interpreter ● Cisco Embedded Event Manager (EEM) ● Cisco NX-OS Software scheduler
Approvals and compliance● Safety compliance ● CE Marking ● UL 60950 ● CAN/CSA-C22.2 No. 60950 ● EN 60950 ● IEC 60950 ● TS 001 ● AS/NZS 3260 ● IEC60825 ● EN60825 ● 21 CFR 1040 ● EMC compliance ● FCC Part 15 (CFR 47) Class A ● ICES-003 Class A ● EN 55022 Class A ● CISPR 22 Class A ● AS/NZS 3548 Class A ● VCCI Class A ● EN 55024 ● EN 50082-1 ● EN 61000-6-1 ● EN 61000-3-2 ● EN 61000-3-3
Reliability and availability● Cisco In-Service Software Upgrade (ISSU) ● Hot-swappable, dual redundant power supplies ● Hot-swappable fan module with switch integrated temperature and power management ● Hot-swappable SFP+ optics ● Stateful process restart ● Any port configuration for port channels ● Fabric-based multipathing ● Per-VSAN fabric services ● Port tracking ● Virtual Router Redundancy Protocol (VRRP) for management IP interface ● FEC with HBA ports ● Buffer-to-buffer state change notification with HBA ports
Physical dimensions (H x W x D) and weight● 1 Rack Unit (1RU) (1.72 x 17.3 x 22.3 in. [4.37 x 43/9 x 56.6 cm]) excluding Power Supply Unit (PSU) and fan module handles ● 16.7 lb. (8.5 kg)
Warranty3-Year Warranty

Key Features

  • OEM Genuine Component verified by certified technicians.
  • Clean serial number ready for service contract registration.
  • Electrostatic Discharge (ESD) safe packaging.
  • Supports hot-swapping for zero-downtime maintenance.

Frequently Asked Questions

Is this product genuine OEM?

Yes, this DS-C9148T-24EK9, Cisco MDS 9148T Switch, 24x32G FC/48 Ports/Exhaust (CIS:DS-C9148T-24EK9) is 100% genuine OEM hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.

What warranty is included?

This DS-C9148T-24EK9, Cisco MDS 9148T Switch, 24x32G FC/48 Ports/Exhaust includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.

How long does shipping take?

We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.

Can I return this product?

Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.

Is the DS-C9148T-24EK9, Cisco MDS 9148T Switch, 24x32G FC/48 Ports/Exhaust compatible with my system?

Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the CIS:DS-C9148T-24EK9.
