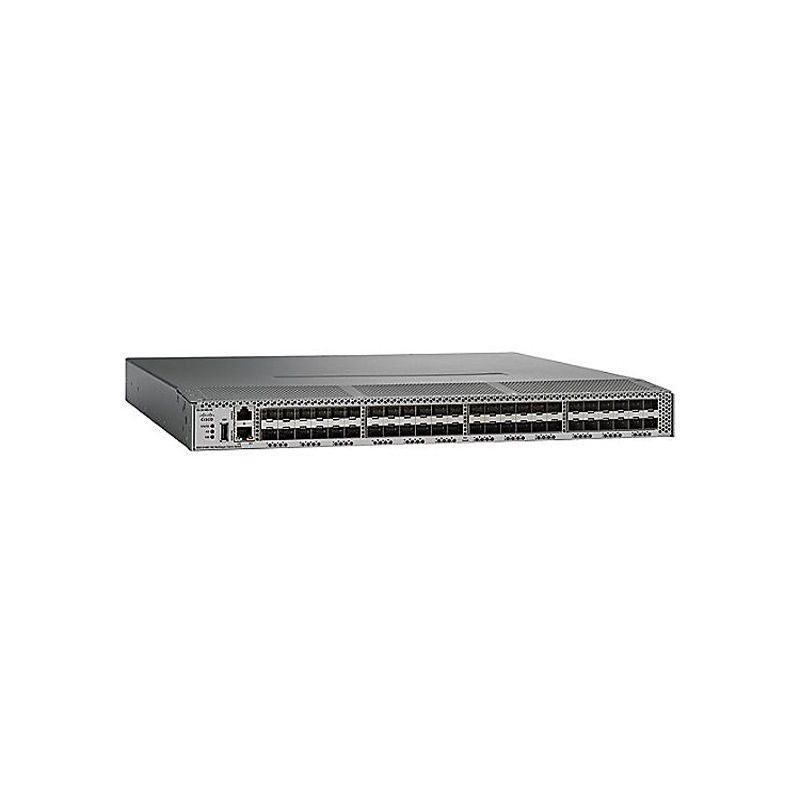

DS-C9148S-12PK9, Cisco MDS 9148S Switch, 12x16G FC/Multilayer Fabric/Enabled Ports
Brand: Cisco · SKU: CIS:DS-C9148S-12PK9 · MPN: CIS:DS-C9148S-12PK9 · Category: Networking
Request for Quote
In Stock • 10 units
Cisco MDS 9148S 16G Multilayer Fabric Switch with 12 enabled ports
Specifications
| Model | DS-C9148S-12PK9 |
|---|---|
| Ports | Fixed configuration with 48 ports of 16 Gbps Fibre Channel. Available in a 12-port configurable base or as a bundle with all 48 ports enabled. Enable incremental ports on the 12-port base model, with the 12-port On-Demand Activation license. |
| Power | Power supply: 300W AC (2 per switch). Power cord: Notched C15 socket connector connecting to C16 plug on power supply. AC input characteristics: 100 to 240V AC (10% range), 50 to 60 Hz (nominal). Airflow: back to front (toward ports), 200 LFM through system fan assembly. Cisco recommends maintaining a minimum air space of 2.5 in. (6.4 cm) between walls and chassis air vents and a minimum horizontal separation of 6 in. (15.2 cm) between two chassis to prevent overheating. |
| Security | VSAN fabric isolation, Hardware zoning by Access Control Lists (ACLs), Fibre Channel Security Protocol (FC-SP) switch-to-switch and host-to-switch authentication, Role-based access control (RBAC) using RADIUS, TACACS+, or LDAP AAA functions, Secure FTP (SFTP), Secure Shell Protocol Version 2 (SSHv2), Simple Network Management Protocol Version 3 (SNMPv3) implementing AES, Control-plane security. |
| Performance | Port speed: 2/4/8/16 Gbps autosensing with 16 Gbps of dedicated bandwidth per port. Buffer credits: Up to 256 for a group of 4 ports, with a default of 64 buffer credits per port and a maximum of 253 buffer credits for a single port in the group. PortChannel: Up to 16 physical links. |
| Fabric services | Name server, Registered State Change Notification (RSCN), Login services, Fabric Configuration Server (FCS), Public loop, Broadcast, In-order delivery. |
| Temperature range | Temperature, ambient operating: 32 to 104°F (0 to 40°C). Temperature, ambient non-operating and storage: -40 to 158°F (-40 to 70°C). Relative humidity, ambient (non-condensing) operating: 10 to 90%. Relative humidity, ambient (non-condensing) non-operating and storage: 10 to 95%. Altitude, operating: -197 to 6500 ft (-60 to 2000 m). |
| Advanced functions | VSAN, IVR, PortChannel with multipath load balancing, Flow-based and zone-based QoS. |
| Network management | Access methods: Out-of-band 10/100/1000 Ethernet port, RS-232 serial console port, USB. Access protocols: CLI using the console and Ethernet ports, SNMPv3 using the Ethernet port and in-band IP over Fibre Channel access, SNIA Storage Management Initiative Specification (SMI-S). Distributed device alias service. Network security: Per-VSAN RBAC using RADIUS and TACACS+-based AAA functions, SFTP, SSHv2 implementing AES, SNMPv3 implementing AES. Management applications: Cisco MDS 9000 Family CLI, Cisco Prime DCNM. |
| Programming interfaces | Scriptable CLI, Cisco Prime DCNM web services API. |
| Approvals and compliance | Safety compliance: CE Marking, UL 60950, CAN/CSA-C22.2 No. 60950, EN 60950, IEC 60950, TS 001, AS/NZS 3260, IEC60825, EN60825, 21 CFR 1040. EMC compliance: FCC Part 15 (CFR 47) Class A, ICES-003 Class A, EN 55022 Class A, CISPR 22 Class A, AS/NZS 3548 Class A, VCCI Class A, EN 55024, EN 50082-1, EN 61000-6-1, EN 61000-3-2, EN 61000-3-3. |
| Physical dimensions (HxWxD) | Dimensions (HxWxD): 1.72 x 17.16 x 16.34 in. (4.37 x 43.59 x 41.50 cm), 1RU. Rack-mountable in standard 19-inch EIA rack. |
| Reliability and availability | ISSU, Hot-swappable, dual redundant power supplies, Hot-swappable fan tray with integrated temperature and power management, Hot-swappable SFP+ optics, Passive backplane, Stateful process restart, Any port configuration for PortChannels, Fabric-based multipathing, Per-VSAN fabric services, Port tracking, VRRP for management connections, Online diagnostics. |
| Warranty | 3-Year Warranty |
Key Features
- OEM Genuine Component verified by certified technicians.
- Clean serial number ready for service contract registration.
- Electrostatic Discharge (ESD) safe packaging.
- Supports hot-swapping for zero-downtime maintenance.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this DS-C9148S-12PK9, Cisco MDS 9148S Switch, 12x16G FC/Multilayer Fabric/Enabled Ports (CIS:DS-C9148S-12PK9) is 100% genuine Cisco hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This DS-C9148S-12PK9, Cisco MDS 9148S Switch, 12x16G FC/Multilayer Fabric/Enabled Ports includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the DS-C9148S-12PK9, Cisco MDS 9148S Switch, 12x16G FC/Multilayer Fabric/Enabled Ports compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the CIS:DS-C9148S-12PK9.
